Lab Three Roll Mill with 304 Stainless Steel Frame And Ceramic Zirconia Rolls
Model Number:
TMAX-SCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Lab Three Roll Mill with 304 Stainless Steel Frame And Ceramic Zirconia Rolls

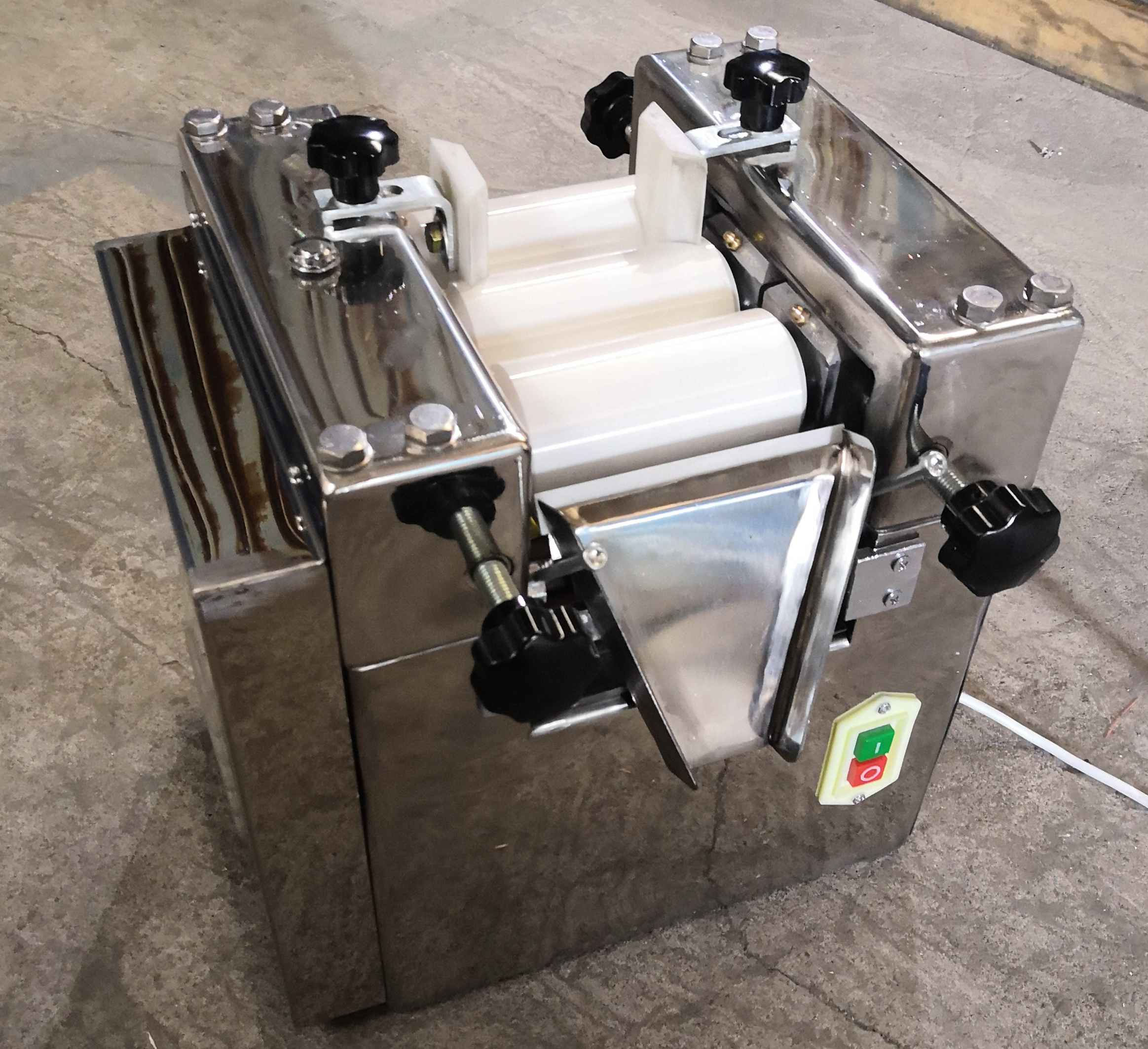

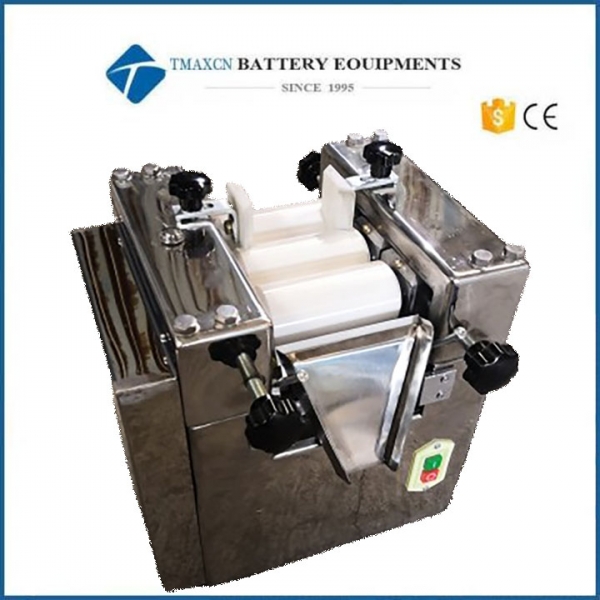

(Ceramic zirconia roller, frame material is stainless steel 304)

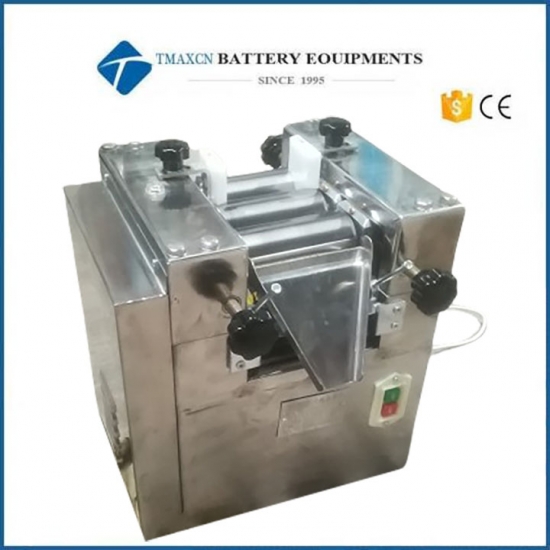

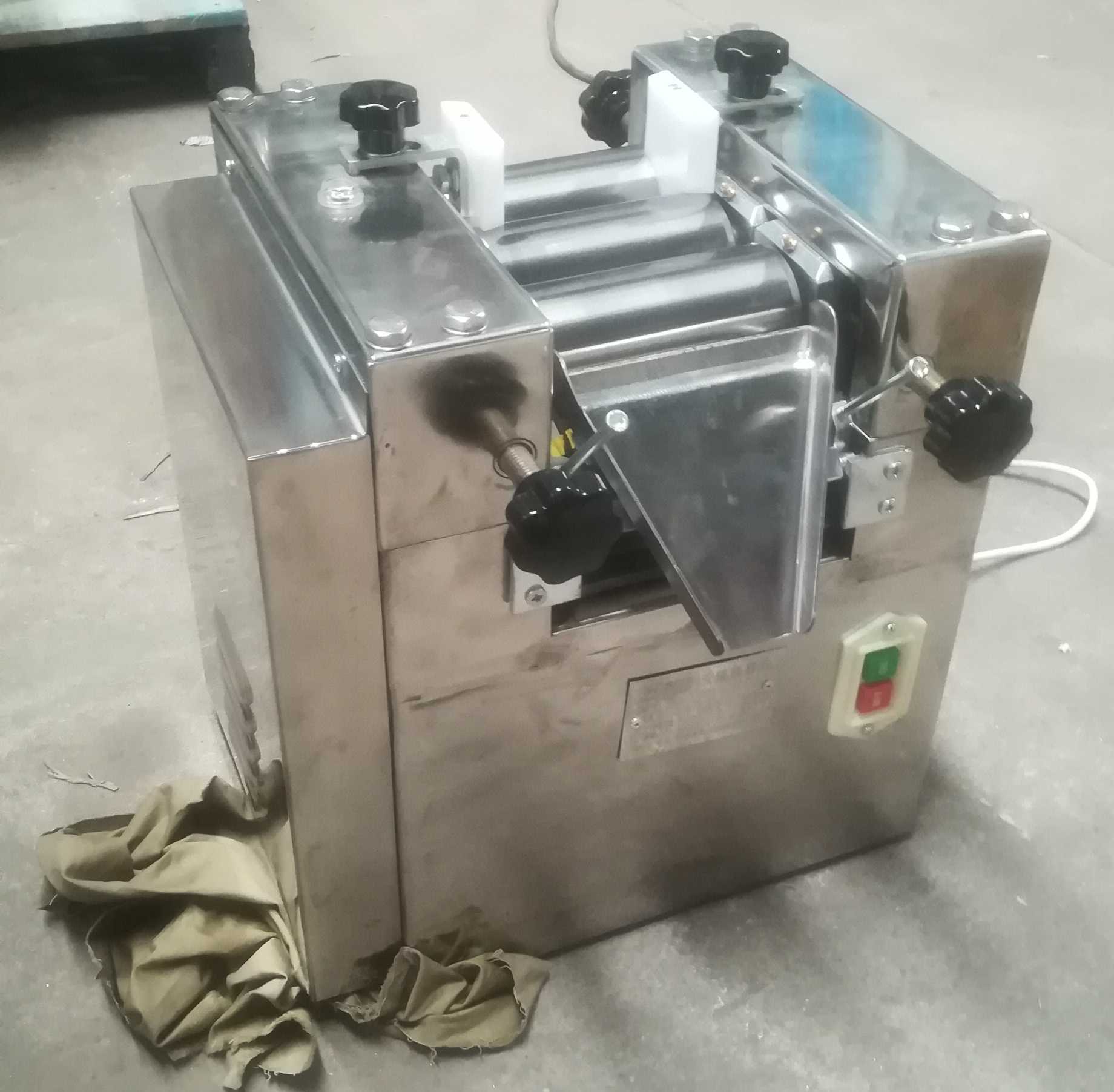

(Nickel-chromium roller, frame material is stainless steel 304)

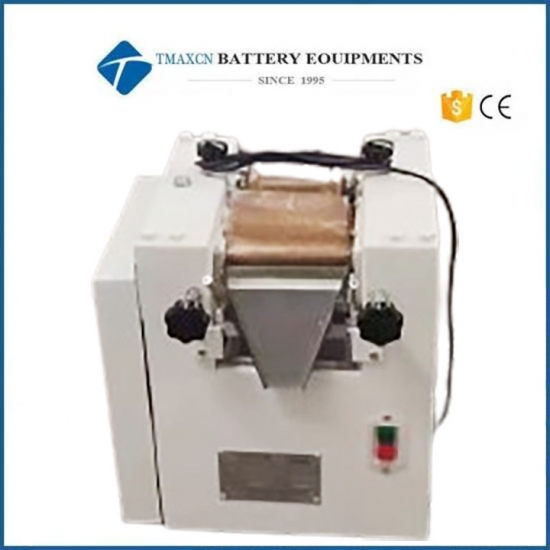

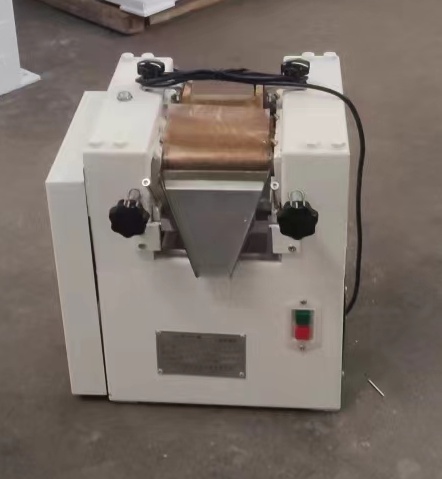

(Chilled alloy roller, frame material is ordinary iron)
Main technical parameters
Parameter |
S65 |
S150 |
S200 |
S260 |
S405 |
|
Roller diameter (mm) |
Ф65 |
Ф150 |
Ф200 |
Ф260 |
Ф405 |
|
Roll working length (mm) |
125 |
300 |
500 |
695 |
800 |
|
Roll speed |
Slow roll |
32 |
28 |
20 |
19.1 |
12 |
Middle roll |
89 |
66 |
55 |
54.5 |
37.6 |
|
Fast roll |
250 |
152 |
155 |
155 |
116 |
|
Power (kw) |
0.75 |
2.2 |
4 |
7.5 |
15 |
|
Speed (r.p.m) |
1400 |
1420 |
1420 |
970 |
970 |
|
Roller speed ratio |
1:2.8:7.8 |
1:2.5:64 |
1:2.8:8.1 |
1:2.8:8.1 |
1:3:94 |
|
Overall dimensions (L×W×H) |
420×400 ×440 |
820×800 ×920 |
1180×1120 ×980 |
1650×1350 ×1100 |
2150×1980 ×1250 |
|
Weight (kg) |
80 |
500 |
800 |
2300 |
5218 |
|
