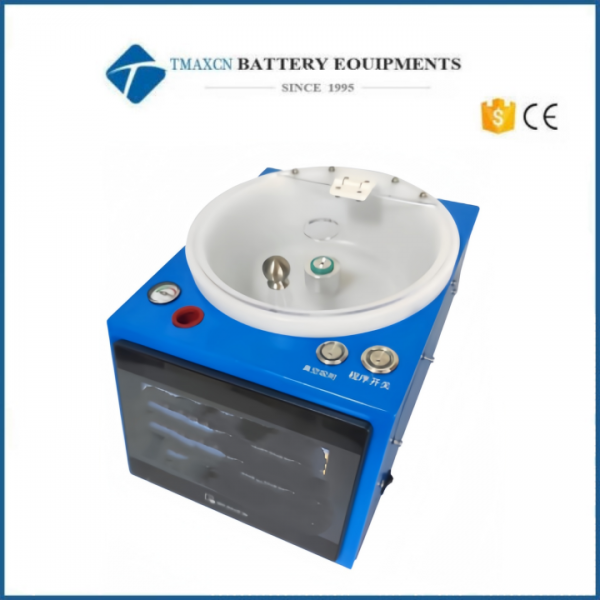

Lab Small Vacuum Programmable Spin Coater Using for Perovskite Solar Cell Fabrication
Model Number:
TMAX-JW-A5Compliance:
CE CertifiedWarranty:
One year limited warranty with lifetime technical supportPlace of Origin:
ChinaShipping Port:
Xiamen PortPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Pelvic PP Material Vacuum Spin Coater Used in Perovskite Based Solar Cell Lab LineNext:
Lab Small High Temperature Heating Table Placeable in Glove Box with Temperature Control Mode
Lab Small Vacuum Programmable Spin Coater Using for Perovskite Solar Cell Fabrication
Product characteristics
a. Compact structure, suitable for direct operation in the glove box;
b. 7-inch full color touch screen, advanced PLC control, set a key start button, easy to operate;
c. Can be single step and multi-step glue operation;
d. Industrial motor, smooth rotation, stable operation;
e. Solvent PC transparent cover;
f. The vacuum pump and the spin coater work synchronously, the spin coater rotates, the vacuum pump starts, the spin coater stops, and the vacuum pump stops;
g. Proprietary anti-blocking design for easy cleaning.
Technical parameter
Overall dimension |
335mm(D)x228mm(W)x215mm(H) |
Three vacuum chucks are standard |
φ10mm chuck (substrate minimum φ10mm maximum φ20mm) φ20mm chuck (substrate minimum φ20mm maximum φ47mm) φ45mm chuck (substrate minimum φ37mm maximum φ55mm) |
Speed adjustable range |
200-10000RPM |
Deceleration adjustable range |
300-3000RPM |
Speed resolution |
1RPM |
Rotation time range |
1-3000S |
Controllable range of acceleration |
300-5000RPM |
Vacuum input |
0.06-0.09Mpa, minimum vacuum flow 15L/Min |
Vacuum connection |
The outer diameter of the rear panel outlet is 6mm |
Power input |
220V 150W |
Program control |
Programmable 5 groups of 5-step programs |
