A. Product Introduction

High-energy planetary ball mill mainly adopts the principle of planetary ball mill, through the high speed centrifugal force to promote the collision, shear, dispersion between the medium and the material in the tank, the tank wall and the ball speed is different, the friction force and impact force between the material and the medium are different, the high energy is different, the rotation speed of 1630 turns to produce high energy (equivalent to 60 times the gravity acceleration), Reliable and reproducible nano-scale grinding results can be obtained in a very short time. This equipment is ideal for high efficiency sample mixing and homogenization or mechanical activation and alloying. It is suitable for geological and mineral, mechanical alloying, chemistry, nanotechnology, metallurgy, materials research, ceramics, biology, analytical sample preparation, etc.



B. How it works

PBM series planetary ball mill is equipped with two ball grinding tanks on the same planetary mechanism disk, when the planetary disk rotates, the ball grinding tank rotates around the axis of the disk and rotates around its own axis at the same time, making planetary motion. The grinding balls in the tank collide with each other in high speed motion, grinding and mixing the sample. The product can grind and mix products with different particle sizes and materials in dry and wet ways. The minimum particle size of the grinding product can reach 0.1 micron (1.0×10mm-4).



C. Technical parameters

Model number	PBM-H-0.4A
Ball milling tank volume (ML)	50ML~100ML*2
Material of ball mill tank	Optional hard steel, stainless steel, zirconia, agate, corundum, tungsten carbide, nylon, polyurethane, PTFE, etc
Abrasive medium material	Tungsten carbide, stainless steel, agate, zirconia, corundum, etc
Maximum filling per can	The material and grinding medium shall not exceed two-thirds of the volume
Feed grain size	Brittle materials less than 10 mm, other less than 3 mm
Particle size of discharge	Up to 0.1 microns (depending on material characteristics)
Speed of rotation	The maximum revolution is 35-815rpm, and the maximum rotation is 70-1630rpm
Speed ratio (revolution: rotation)	1:2
Speed control mode	Frequency conversion speed regulation
Planetary disk drive mode	Gear drive
Operating voltage	Single-phase 220V, 50HZ
Host motor power and frequency conversion power	0.75KW (motor brand is ABB, frequency converter brand is Veluntong)
Way of working	Two cans work at the same time
Maximum continuous working time	72 hours
Program control	Better man-machine interface integration (Siemens 4.5 inch touch screen configuration), set free and program mode, program mode can store 9 different process formula, easy to call and store, can set the total fixed, forward, reverse, interval standby time, repeated alternating operation, real-time operation of the equipment can overcurrent, overvoltage, overload protection alarm.
Planetary mechanism lubrication mode	Planetary mechanism transmission system adopts gear box type liquid oil immersion lubrication, planetary mechanism gear adopts fine grinding processing technology, accuracy grade of 5, to solve the problem of not timely lubricating transmission components caused by wear, reduce noise and shorten the service life of equipment.
Reference size (MM)	570 (length) *300 (width) *400 (height)
Reference weight (KG)	About 30



D. Product Features

a. Equipment through professional appearance design, the shell adopts high precision laser cutting, CNC bending molding, generous and delicate, high-end and stable;

b. The e planetary disk and structural components are processed by numerical control processing technology and nitriding metal heat treatment technology to ensure wear resistance of rotating shaft parts and prevent shaft breakage. The transmission gear is made of high-temperature and wear-resistant non-metal and metal combination precision gear, and the gear box is lubricating with liquid oil, which is safe and reliable, low noise, no pollution and small loss.

c. Equipped with induction lamp device: THE working lamp is controlled by infrared human sensor, the light is on when people come, and the light is off when people walk, which is convenient and energy-saving.

d. Ball grinding tank adopts planetary movement, high grinding efficiency, fine particle size;

e. The inverter has undervoltage and overcurrent protection, which can protect electrical components such as motors;

f. The machine cover adopts the hydraulic pole cover type, through the electromagnetic safety lock and latch type limit switch to ensure the normal operation of the equipment and the personal safety of the operator;

g. The window glass adopts double vacuum toughened glass, which not only insulates the sound and reduces the noise, but also ensures the personal safety. The ball grinding chamber is equipped with sound-absorbing cotton.

h. The electrical control part through the design of independent control box built-in equipment, 5 sets of exhaust fans forced to exhaust heat dissipation, forming an in and out of the internal circulation heat dissipation system;

i. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss;



E. High-end planetary ball mill products related picture

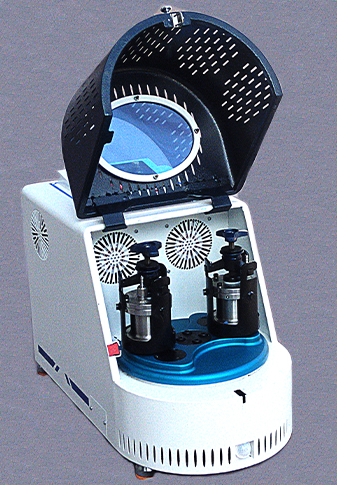

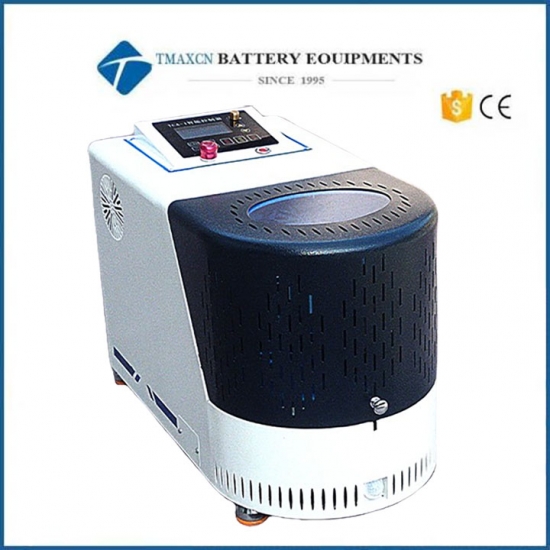

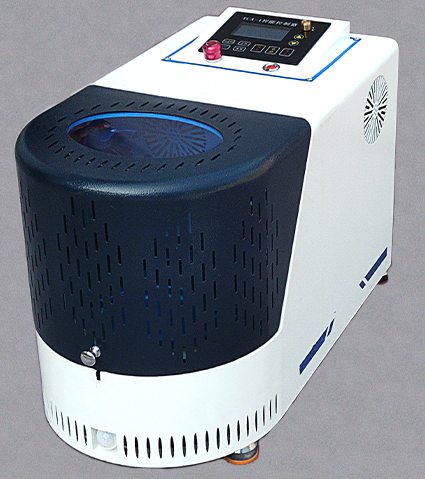

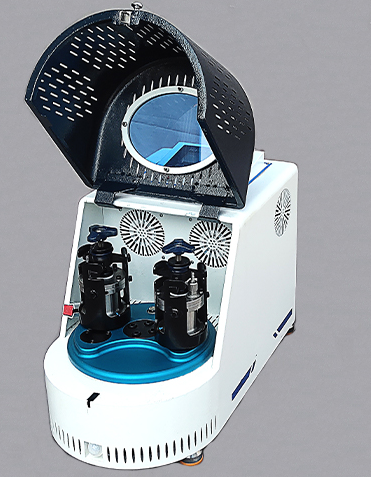

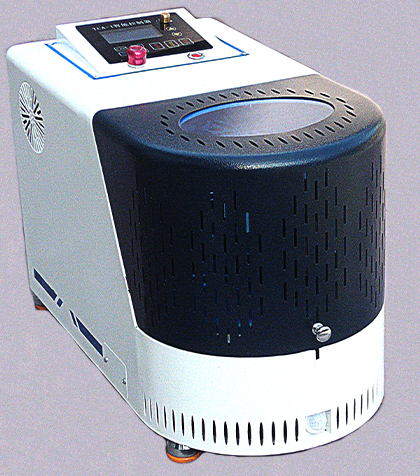

(Photo with reference)
