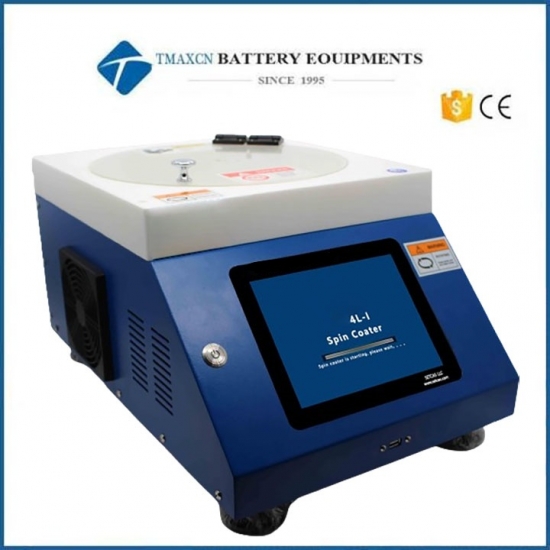

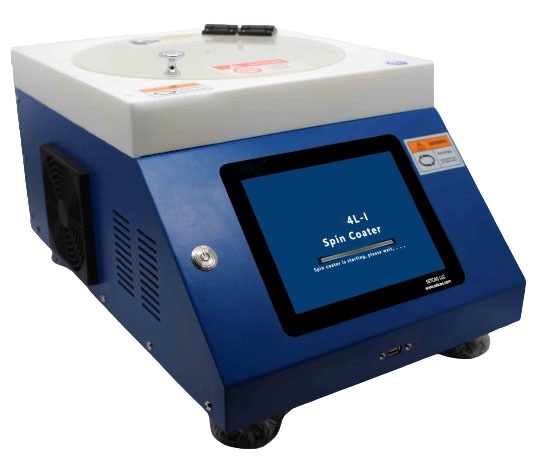

Lab Programmable Control Spin Coater with Integrated Automatic Glue Dispensing

Substrate size

5-200mm (standard)/5-600mm (optional)

Speed range

10- 12000RPM (standard)/10-20000RPM (optional)

Acceleration range

10-30000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Automatic glue dispensing

YES

Human machine interface

8-inch touch screen

Communication interface

USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard

Foot pedal function

YES

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Third-party options

Logitech wireless mouse/wireless keyboard/Kingston 2G disk

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 15 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
