Spin Coater

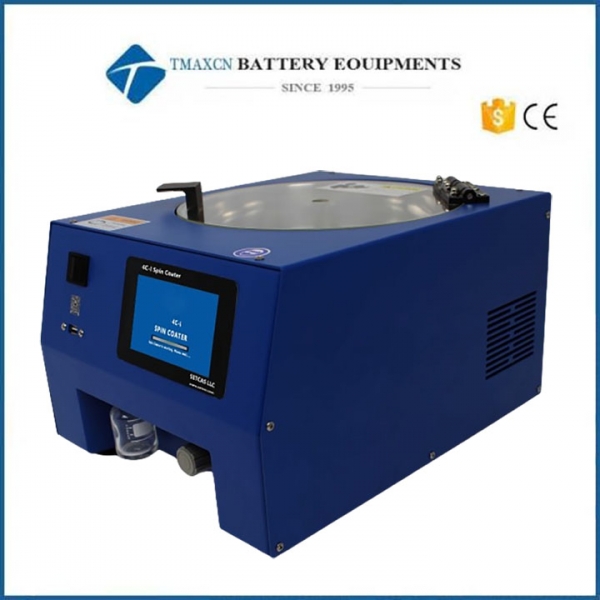

Lab High Quality Programmable Spin Coater with Adjustable Vacuum Adsorption Force

  • Model Number:

    TMAX-4C-I

  • Dimension(L*W*H):

    340mm(W)X500mm(D)X250mm(H)

  • Net Weight:

    18KG

  • Compliance:

    CE Certified

  • Warranty:

    Two Years limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

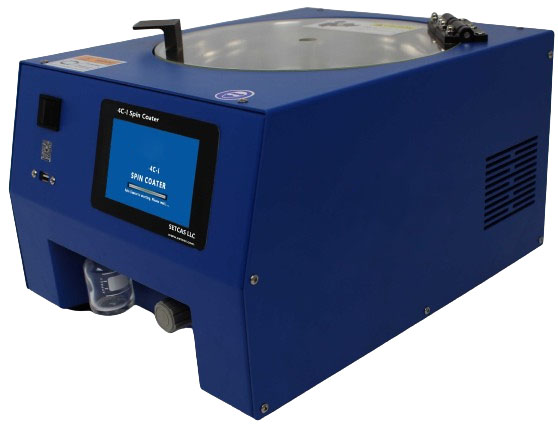

Lab High Quality Programmable Spin Coater with Adjustable Vacuum Adsorption Force


       Spin Coater


Key Features：

1.  Anti-flying protection and alarm

2.  Anti-glue protection and alarm

3.  Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient

4.  The motor can rotate forward and reversely

5.  Formula with power-offprotection function

6.  Adjustable acceleration (acceleration: 10- 10000RPM/S, speed range: 50- 12000RPM)

7.  With  communication interface: USB, external mouse and keyboard, transfer recipes through U disk.

8.  With cover opening protection function

9.  Vacuum adsorption force is adjustable

Spin Coater Specifications



Substrate size

5mm to 150mm（ 6 inches）

Speed range

50- 12000RPM

Acceleration range

10- 10000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Human machine interface

4.3 inch touch screen

Communication interface

USB  interface,  can  be   connected  to  the  wireless  mouse   and keyboard: the machine can be placed in the glove

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 10 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

With power-down protection function by default

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Adjustable vacuum adsorption force

YES

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

350W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Weight(Spin Coater)

10KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year

Spin Coater
