Lab High Printing Speed Small Screen Printing Machine with Vacuum Adsorption
Model Number:
TMAX-KT-SY3050Compliance:
CE CertifiedWarranty:
One year limited warranty with lifetime technical supportPlace of Origin:
ChinaShipping Port:
Xiamen PortPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Screen Belt UV Curing Machine or Solar Cell Research Machine with Automatic Dispensing SystemNext:
Lab High Control Accuracy Slit Coater Used in The Preparation of Perovskite Solar Cell Film
Product Details
Lab High Printing Speed Small Screen Printing Machine with Vacuum Adsorption
Technical parameter
Equipment type |
KT-SY3050 |
Table size |
30*50cm |
Printing area |
Max. 25*35cm |
Maximum screen size |
45*65cm |
Printing speed |
1200 times per hour |
Voltage, power |
220V，65W |
Atmospheric pressure |
5-7bar |
Overall dimension |
72*65*110cm |
Printing height |
Max.12cm |
Driving mode |
Pneumatic |
Left and right stroke cylinder |
MAL25-400U |
Up and down stroke cylinder |
SC50-150 |
Net fuselage weight |
90KG |
Doctor blade cylinder |
CQ2B 32-25 |
Other configuration |
with vacuum adsorption |
Other |
Included is one screen and two doctor blades. Note: This equipment pneumatic cutter, self-configured air compressor |

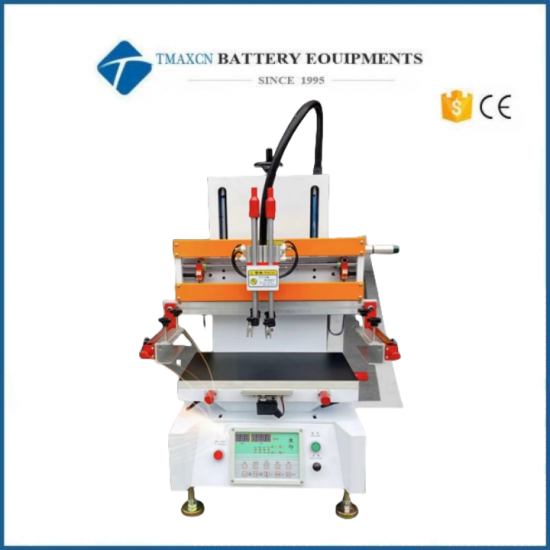

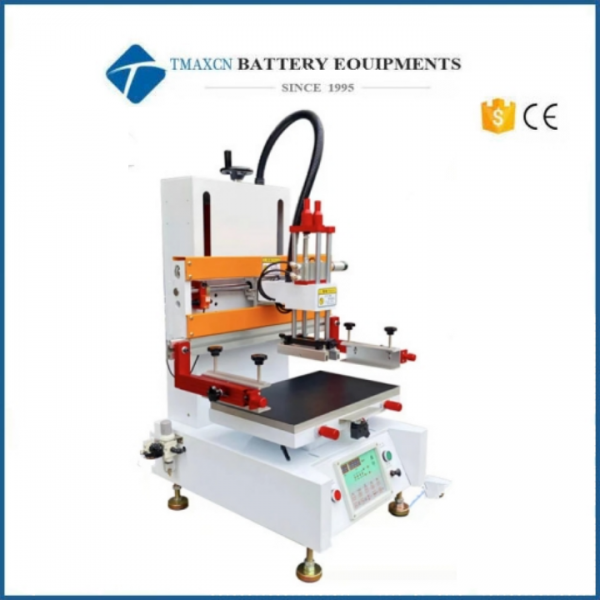

Reference picture
