Lab Electrode Die Cutter for Solid State Battery
Model Number:
TMAX-MQ300Input Power:
10WDimension(L*W*H):
300mm(L) x 250mm(W)Net Weight:
120kg (265 lbs)Compliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Solid State Battery Case Edge Cutting, Folding and Ironing MachineNext:
Solid State Battery Tab Ultrasonic Metal Spot Welder

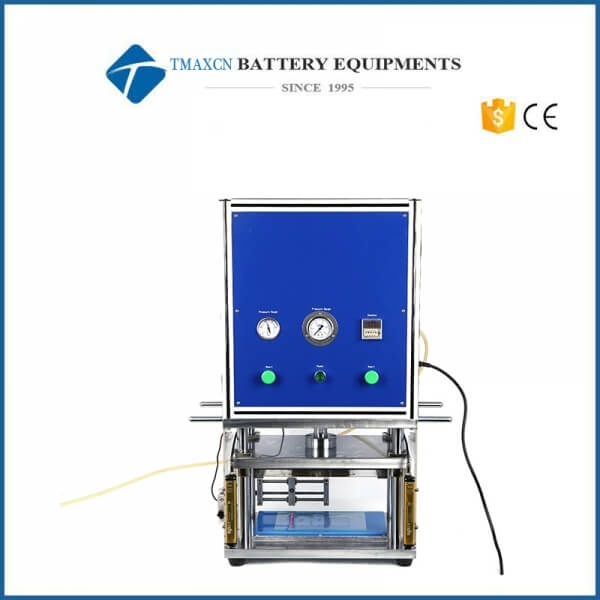

Lab Electrode Die Cutter for Solid State Battery
1.Speedy,efficiently
2.for current collector tabs3.One stop serives,full solutions
TMAX-MQ300

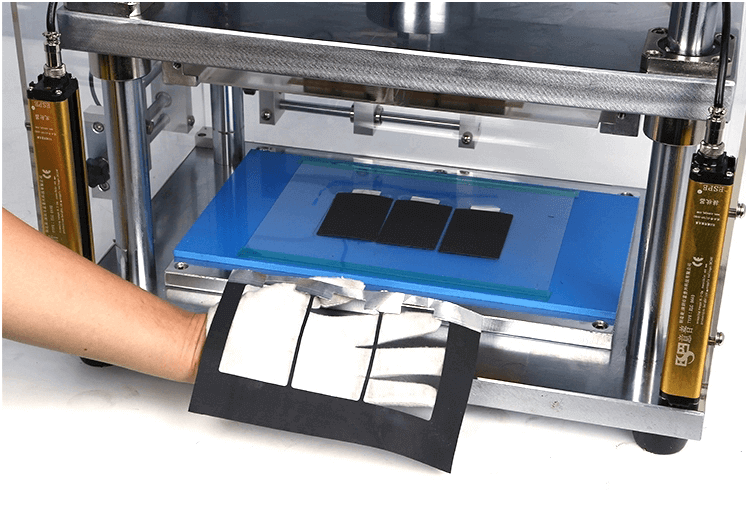

is a CE Certified semi-automatic electrode die cutter.

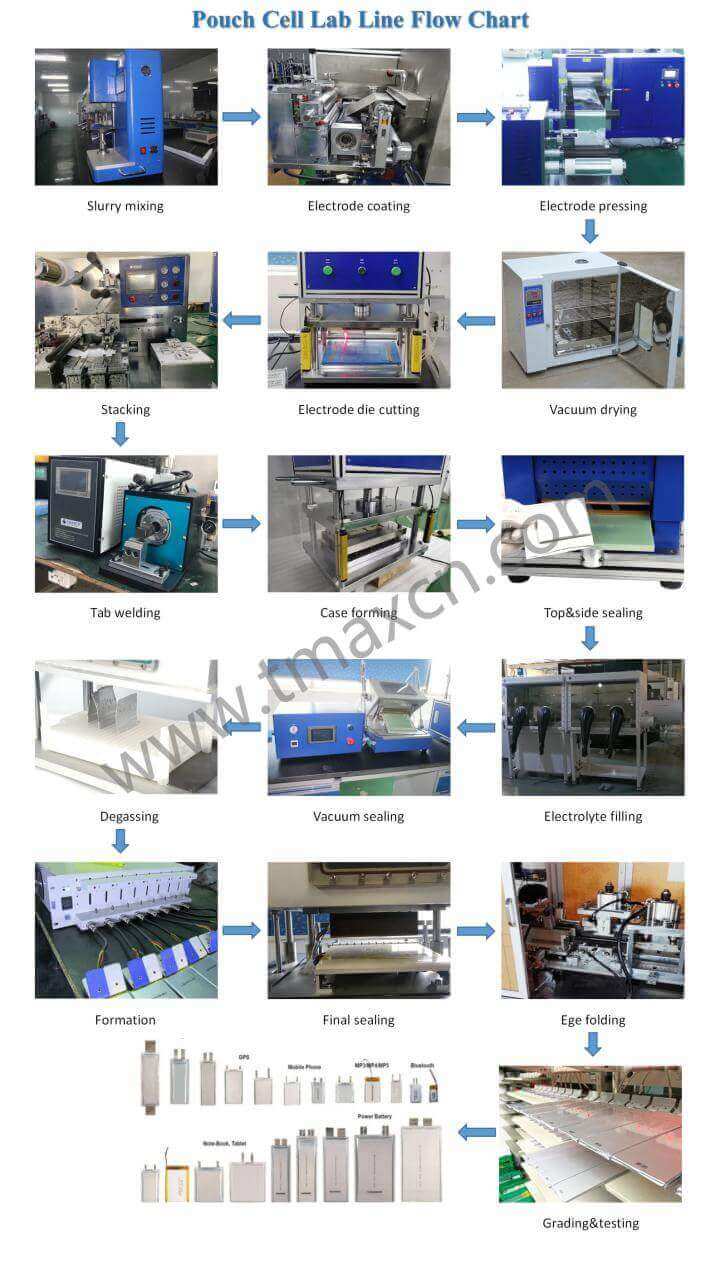

It is a necessary tool in the production
line of pouch cell to produce specific shapes of cathodes and anodes
with current collector tabs.
Model |
Battery Electrode Die Cutter Machine TMAX-MQ300 |
Work voltage |
AC110V/220V, 50/60HZ |
Power |
100W |
Warranty |
One year limited warranty with lifetime support |
Cutting Die |
Customized according to customer's request |
Safety Protection |

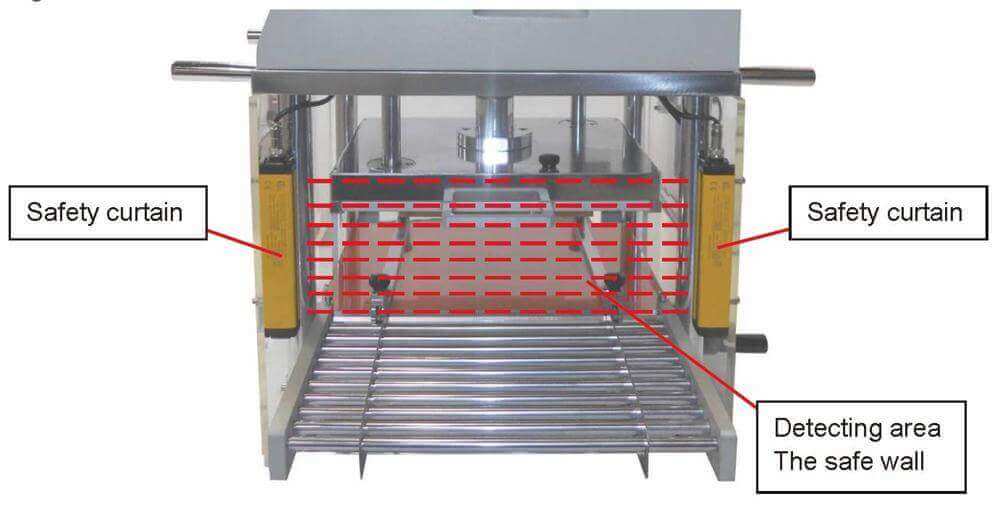

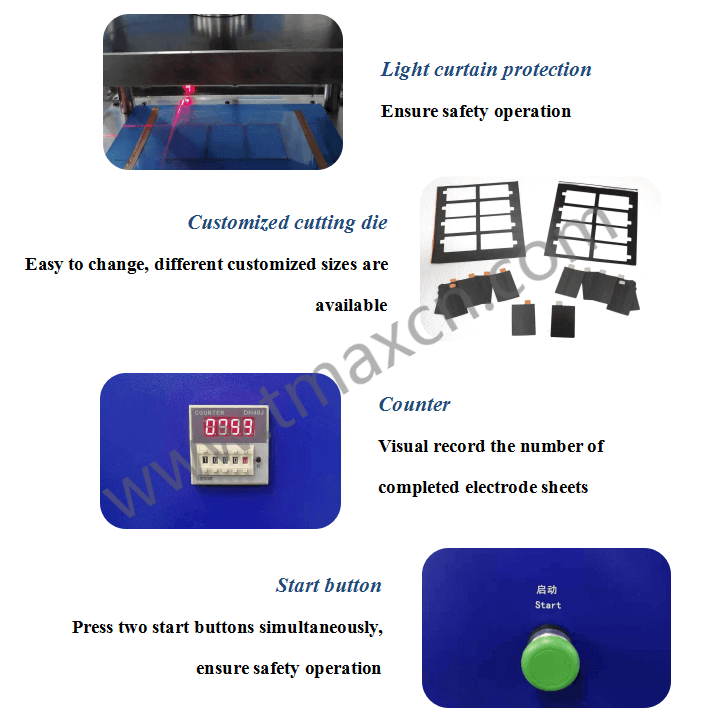

Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button |
Cutting Accuracy |
±0.1mm |
Air Cylinder |
1 tons Max. pressure |
Tensile Cylinder |
0.15 tons pressure |
Cutting stroke |
250mm |
Feeding |
Manually |
Yield |
800 - 2000 pieces of electrodes per hour |
Air Pressure |
0.5-0.8Mpa |
Dimension (L*W*H) |
580*455* 900mm |
Net Weight |
120kg (265 lbs) |
Shipping Dimensions |
47*75*109cm |
Recommendation |
For the pouch cell assembly, we also recommend you the following items:
Forming machine Hot sealer with tab Vacuuming sealer
Ultrasonic tab welder Stacking machine Aluminum Laminated Film |
