Doctor Blade Coater

Lab Electrode Coater with Vacuum Chuck & 100-250mm Doctor Blade

  • Model Number:

    TMAX-JK-TMJ-220A
  • Dimension(L*W*H):

    Stroke Length:100-800 mm
  • Net Weight:

    50 kg (135 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Delivery Time:

    5 days
Product Details

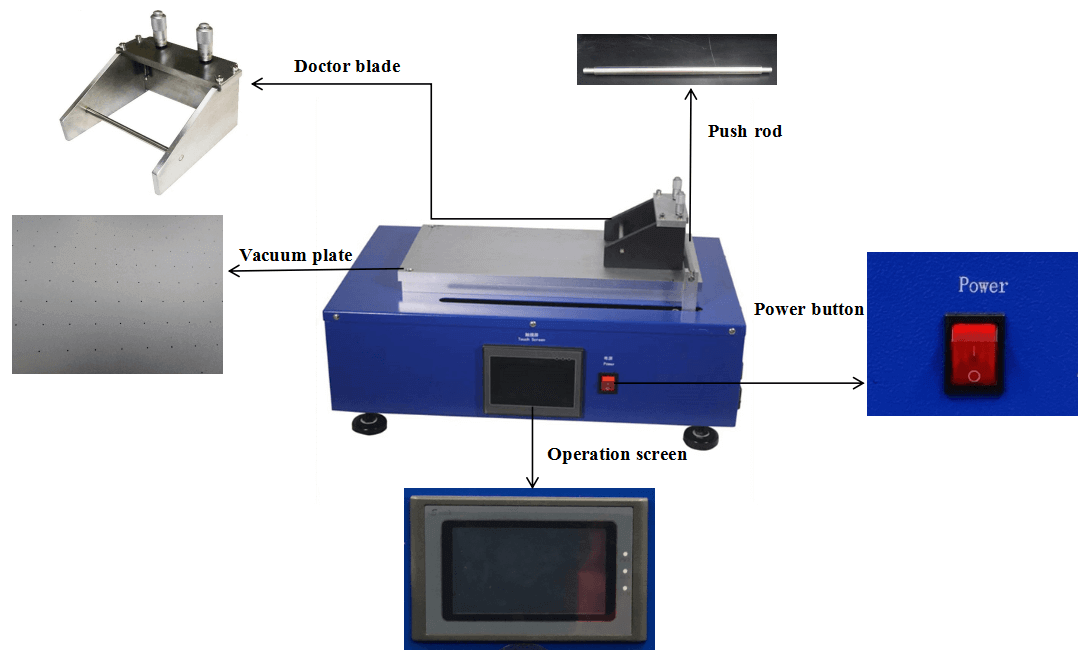

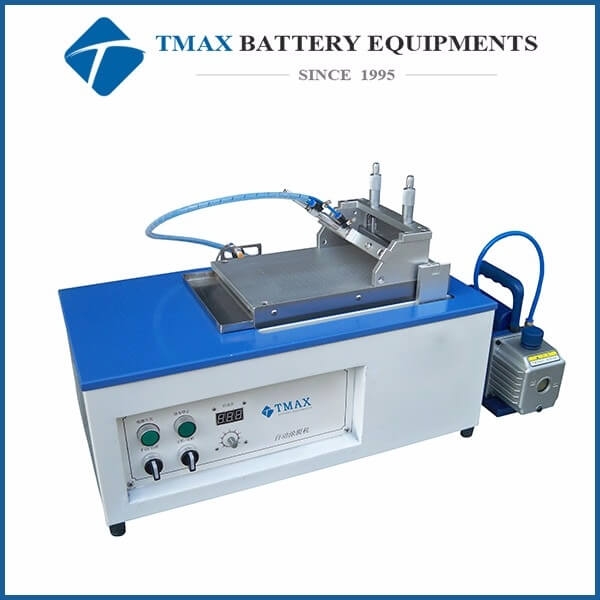

Lab Electrode Coater with Vacuum Chuck & 100-250mm Doctor Blade

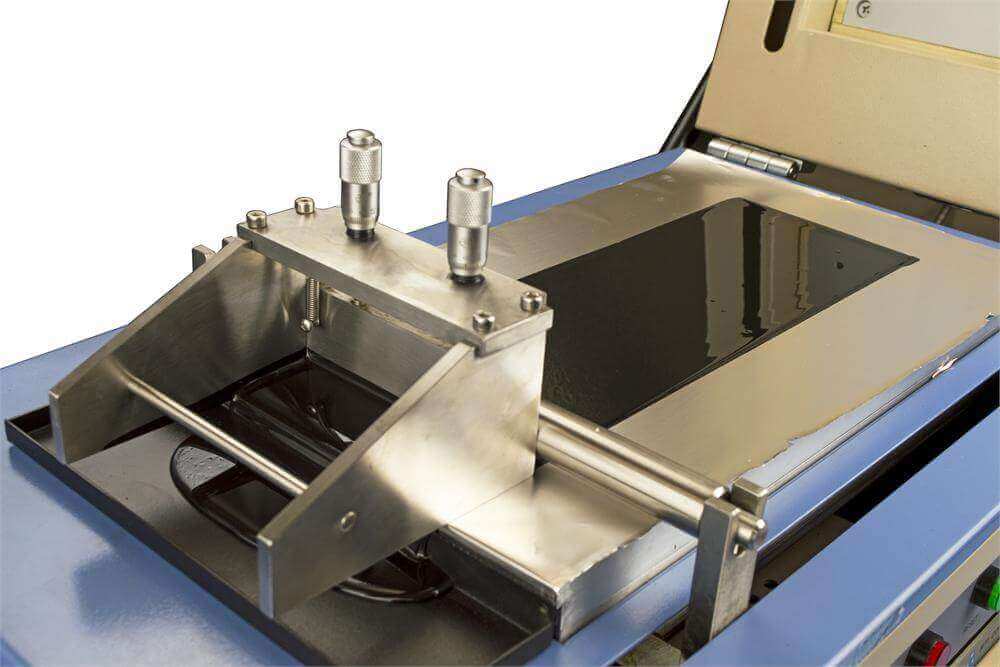

It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in

to hold substrate sheet in place, which is particularly useful when making thin coatings. One 150 mm width adjustable micrometer applicator

(dr blade) and an

oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C.

This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating. we are dedicated to providing quality blade coater for customers.


ITEM

Data

Model

TMAX-JK-TMJ-220A

Working Voltage

220V ±10% 50Hz

Feed speed

0 ~ 100,the speed can be adjusted

Stroke Length

10 - 250 mm adjustable

Vacuum plate

With vacuum aluminum plate

Scraper range

0.02~0.5mm adjustable

Vacuum Pump

Yes

Max. Heating Temp.

200°C

Product Dimensions

500mm(L)×310mm(W)×330mm(H)

Heating drying system

At room temperature to 200 °C, temperature display controller and accuracy + / - 1 °C

Net Weight

50 kg (135 lbs)

Warranty

One year warranty and lifetime maintenance
