Spin Coating Machine

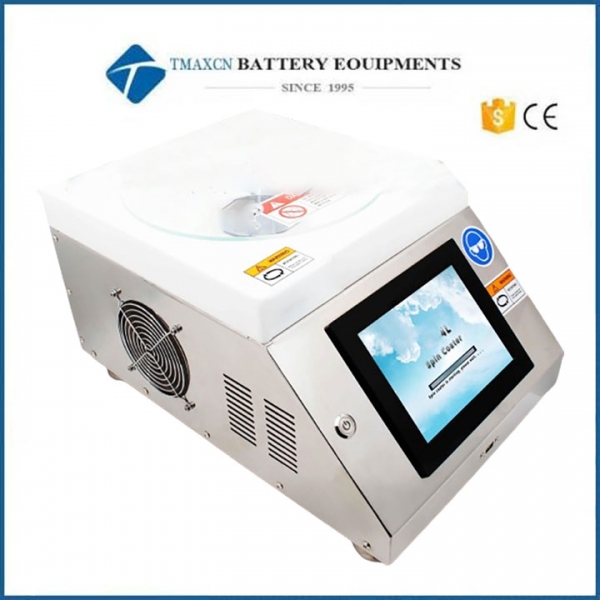

Lab Desktop Vacuum PTFE Spin Coating Machine Optional Substrate of 5 to 600mm

  • Model Number:

    TMAX-4L
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty with lifetime technical support
  • Place of Origin:

    China
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Lab Desktop Vacuum PTFE Spin Coating Machine Optional Substrate of 5 to 600mm


Spin Coater



Key Features:

a. Bring glue protection and alarm

b. Insufficient adsorption alarm and interlock

c. The motor can rotate forward and reversely

d. With communication interface RS485, free remote communication software is provided

e. Can be connected to mouse and keyboard

f. Formula with power-offprotection function

g. The overall material of the chamber is PTFE

h. Actual ultra-wide speed  range, 10- 12000 rpm, with RS485 communication, standard MODBUS-RTU protocol

i. The machine supports 24/7 uninterrupted work



Spin Coater Specifications

Substrate size

5-200mm (standard)/5-600mm (optional)

Speed range

10- 12000RPM (standard)/10-20000RPM (optional)

Acceleration range

10-30000RPM/S Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Human machine interface

8-inch touch screen

Communication interface

USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Third-party options

Logitech wireless mouse/wireless keyboard/Kingston 2G disk

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 15 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40

Warranty

1 year
