Lab Compact Benchtop Vacuum Dryer Machine with 304 Stainless Steel Chamber

Lab Compact Benchtop Vacuum Dryer Machine with 304 Stainless Steel Chamber

KT-CM150 vacuum dryer is a small desktop device, working principle: accelerate solvent volatilization under rapid vacuum pressure, assist the physical process of film crystallization, rapid vacuum drying of various substrate coating materials. The advantages are good film uniformity, rapid solvent volatilization, high stability, and can be applied to the auxiliary film forming process of perovskite batteries after coating.

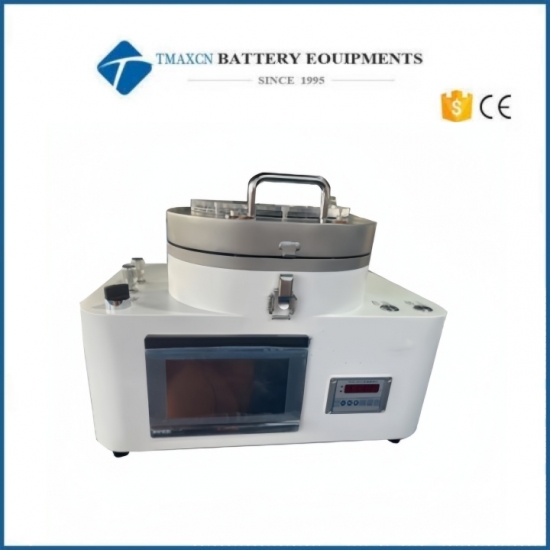

Equipment picture (subject to actual)

Product characteristics

Vacuum chamber: 304 stainless steel is used as the chamber to increase the safety and reliability of the chamber, and the cavity cover is left with a window to facilitate the observation of the film forming process; The sealing ring is sealed with fluorine glue to improve the sealing of the chamber.

Vacuum system: High power mechanical pump pumping rate can reach 40-60m3/h, the ultimate pressure can reach 5*10-1Pa.

Equipment size: The equipment covers a small area, can be placed on the desktop or glove box (KF40 interface), suitable for laboratory use, easy to operate. The pumping speed and pressure relief speed can be controlled, and the pressure holding time can be set.

Equipment technical parameter
