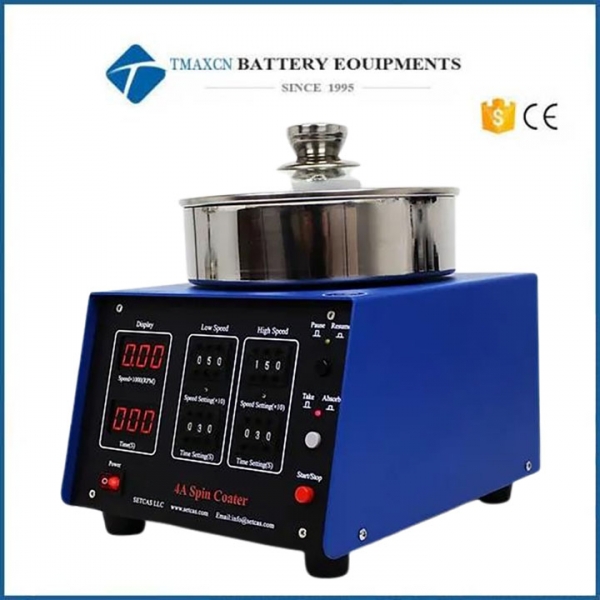

Lab Cheap Vacuum Desktop Rotary Coating Instrument with Plate Holder
Model Number:
TMAX-4BCompliance:
CE CertifiedWarranty:
One year limited warranty with lifetime technical supportPlace of Origin:
ChinaPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Pulsing Thermal Evaporator Carbon Coater equipped with Vacuum Pump for Lab SEM Sample PreparationNext:
Lab Automatic Film Coater Machine with Heating Function Suitable for Lithium Battery,PET And Aluminum Foil
Lab Cheap Vacuum Desktop Rotary Coating Instrument with Plate Holder
Key Features：
1. Prevent the process chemicals and solvents contact with the motor.
2. Support two user-defined program steps for each recipe.
3. Set speed and time with the keypad, convenient and accurate.
4. Single button control spin start/ pause/ reset and vacuum pump on/off.
Spin Coater Specifications
Substrate size |
5mm to 120mm（ 5 inches） |
Plate holder type |
Specially designed plate holder to prevent glue from entering |
Speed range |
50rpm to 10000rpm |
Spin time |
0s to 999s |
Dual LED digital display |
1. Speed display 2. Countdown time display. |
Control method |
Set speed and time with the keypad |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Operating voltage (Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
200W |
Pump power |
180W |
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
Dimensions (Pump) |
185 x 100 x 210 mm (L x W x H) |
Weight(Spin Coater) |
10KG |
Weight(Pump) |
4.5KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
