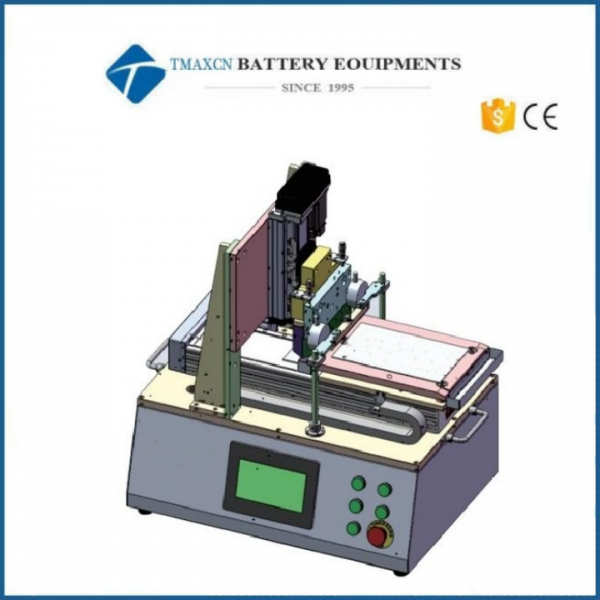

Lab Benchtop Slit Coater Machine with Heating Table

1. Basic parameters of the substrate

Name

Flexible conductive PET/PEN, conductive FTO/ITO, etc

Thickness

1-5mm

Coating size

150mm*150mm Coating width 50-150mm compatible (determined by gasket)

2. Film parameters

Solution viscosity

＜1-100cps

Wet film thickness

1-100μm

Dry film thickness

Dry film 50-10000nm

3. Basic parameters of the device

Equipment table

Heating table (up to 150℃, temperature control accuracy ±1℃), temperature uniformity ±1℃, platform flatness ±10μm (non-heated, there will be deformation after heating)

Feed liquid

High precision liquid pump (0.1-2000ul/s) for liquid supply

Coating speed

0-100mm/s, freely choose the coating speed, the program sets the speed of the segment

Control system

Siemens PLC control system

Horizontal control system

Four-point leveling structure

Repeatability

±0.01mm

Power source

220V，2.5Kw

4. Die parameters

Coating head machining accuracy

Die head flatness/straightness ≤1.5μm

Maximum width of coating head

150mm

Die head cavity volume

About 2mL

Coating head material

Germany imported stainless steel 17-4, corrosion resistance and stability is good, the use of high-precision precision machine tools imported from Japan, constant temperature workshop processing and production.

5. Device working environment

Operating environment Temperature (℃)

25℃±2℃

Relative humidity

<70%, no condensation

Pollution level

Level 2, should not be installed in dusty, corrosive gas places

6. Configure the device

Air knife

Adjustable height and angle, three-sided air intake, high air uniformity

Controls

Servo motor

Gasket

Different thickness, width of the gasket

Dimension

650*450*730mm (reference size)

Weight

80Kg
