Lab Battery Prismatic Cell Semi-auto Shell Feeder Feeding Machine
Model Number:
TMAX-BRK-220Compliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory Battery Semi-auto Helium Leak Detector Machine for Prismatic Cell ProductionNext:
Steel Ball/Glue Nail Sealing Machine

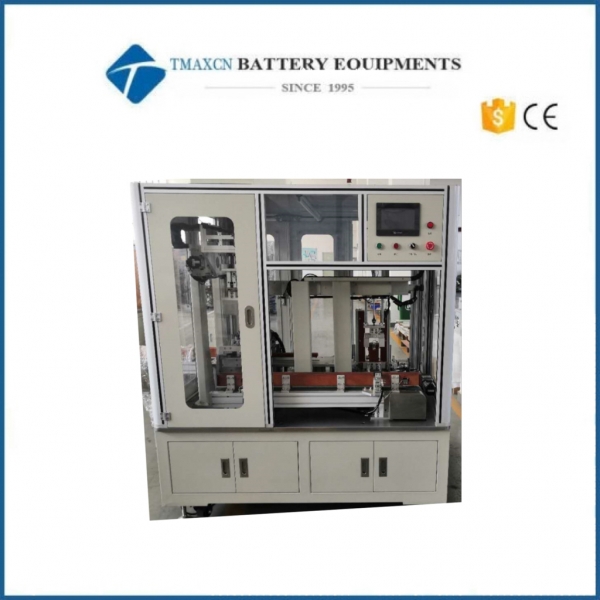

Lab Battery Prismatic Cell Semi-auto Shell Feeder Feeding Machine
1、 Device Functions
Equipment function: By manually installing the battery cell and battery casing, the casing and battery cell are first dust removed in the dust removal mechanism, and then transported to the shell feeding station. The mechanism achieves semi-automatic shell entry between the battery cell and the casing.
Overview of workflow:
Manually place the aluminum shell into the clamp - manually place the battery cell into the mechanism - position the shell after dust removal - automatically push the aluminum shell - automatically unloading the material.
2、 Technical parameters
Applicable cell size |
Prismatic cell size L * W * H (220mm * 135mm * 30mm) |
Dust removal time |
adjustable from 1.0 to 5.0 seconds. |
Number of aluminum shell buffers |
≥ 4PCS |
Reserved size for shell insertion |
3-5mm |
Equipment efficiency |
2PPM |
Utilization rate |
95% |
Pass rate |
99.5% |
3、 Main component configuration

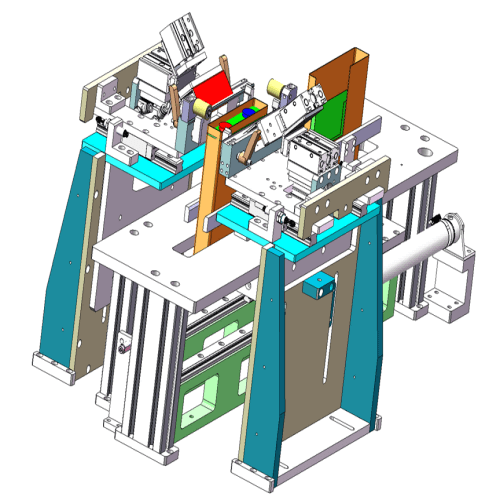

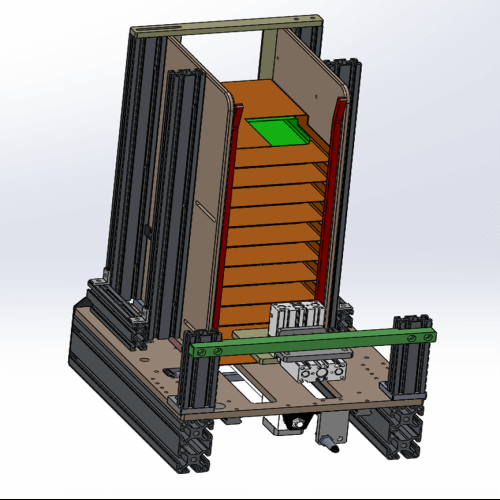

1. Shell placement mechanism

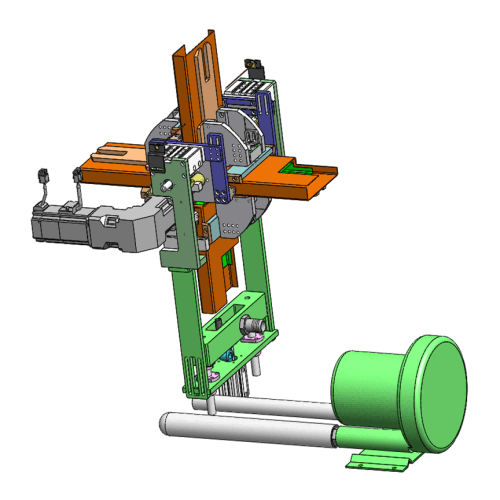

2. Aluminum shell positioning dust removal mechanism
3. Shell feeding mechanism
4、 Component brand
1. Main device configuration
No. |
Name |
Brand |
1 |
servo motor |
Xinjie/Huichuan/Mitsubishi/Panasonic/Equivalent brands |
2 |
touch screen |
Weilentong/Xinjie/equivalent brand |
3 |
PLC |
Mitsubishi/Xinjie/Panasonic/Equivalent brands |
4 |
High pressure fan |
Rain Field/Equivalent Brand |
5 |
cylinder |
SMC/ADK/Equivalent brand |
6 |
Solenoid valve |
SMC/ADK/Equivalent brand |
7 |
Screw guide rail |
HIWIN/KKT/Equivalent brand |
8 |
Induction switch |
Omron/Keyence/equivalent brand |
5、 Installation environment requirements
1. Configuration power supply: AC380V, 50Hz, voltage fluctuation range:+10%~-10%;
2. Total power of the equipment: approximately 2KW;
3. Compressed air: 0.25~0.8Mpa; Pressure fluctuation ± 1%
4. Equipment specifications:
1) Equipment weight: approximately 1 ton;
2) Overall dimensions: approximately 2100x1320x1970mm (length x width x height);
3) Appearance color: light gray or customer specified.
5. Environmental requirements:
1) Environmental temperature: 25 ± 5 ℃;
2) Relative humidity: 30% to 75% RCH, ensuring that the on-site air is dry and unobstructed, without acid or alkali corrosion;
3) Ground wire: protective grounding.
