Lab Automatic Compact Film Coater with Vacuum Chuck&Selectable Heating Functions

Model Number:
TMAX-TMH
Compliance:
CE Certified
Warranty:
One Year limited warranty with lifetime support
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

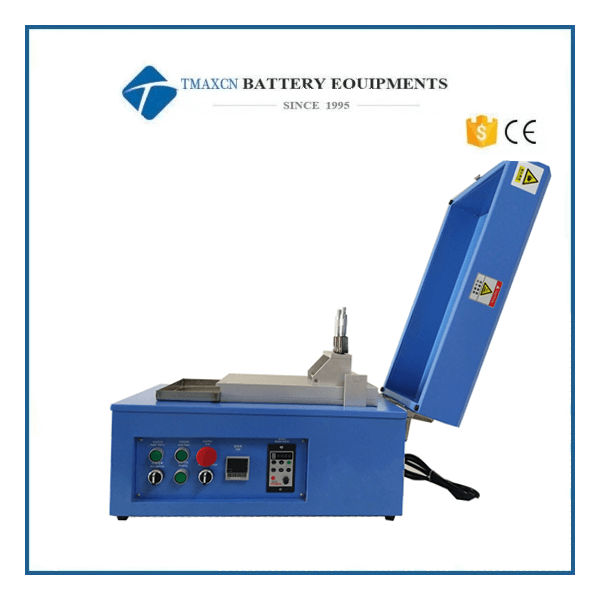

Lab Automatic Compact Film Coater with Vacuum Chuck&Selectable Heating Functions

TMAX-TMH is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on various types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin film coatings.

Specifications

Model	TMH100-250	TMH150-250	TMH250-300	TMH250-350	TMH250-500	TMH250-800
Effective coating area(can be customized)	100x250mm	150x250mm	250x300mm	250x350mm	250x500mm	250x800mm
Stroke length (adjustable)	10 - 250 mm	10 - 250 mm	10 - 300 mm	10 - 350 mm	10 - 550 mm	10 - 800 mm
Vacuum chuck dimensions(W*L)	100 x 365mm	150 x 365mm	250 x400mm	250 x 450mm	250 x 650mm	250 x 900mm
Power supply	110VAC or 220VAC
Coating speed	0 - 120 mm/sec variable; accuracy: 10mm/sec
Vacuum pump	One vacuum pump is included Pumping rate: 60 Hz:1.8 CFM, 50 L/min Extreme vacuum: 5 Pa, 375 microns

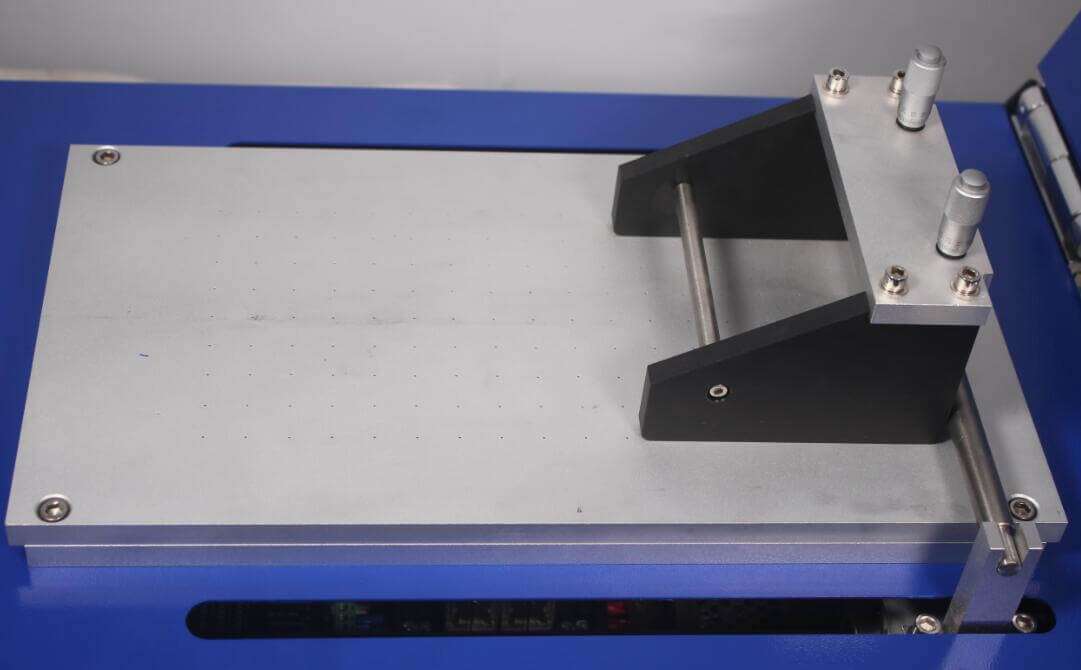

Film applicator	One standard film applicator is included Standard: Analog film applicator with fix coating width 0~3mm gap adjustable Coating accuracy: ±0.003mm
Film applicator	Optional parts: Digital micrometer Adjustable width Different gap/coating thickness
Heating function (selectable)	Platen heating(standard) 1. Heating on the vacuum chuck/coating plate 2. Built in digital temperature controller with accuracy of +/-1°C 3. Max. Heating Temp: 120°C
Heating function (selectable)	Top cover heating 1. Pre-installed on the top cover 2. Built in digital temperature controller with accuracy of +/-1°C 3. Suspension support helps open cover easily and safely 4. Max. Heating Temp: 150°C
Surface finish	▽10
Surface roughness	Ra0.1
Vacuum board material	5052 Aluminum alloy
Compliance	CE Certificate
Warranty	One year limited warranty with lifetime support
