Features

- all stainless steel pipework
- Regeneration averages ~ once per year, Impurity levels:
- Oxygen < 1 ppm, Water < 1 ppm
- vacuum pump
- Oxygen Analyzer / Moisture Analyzer
- Auto purge function
- PLC controlled with color touch panel
- EnergySave mode, Automatically reducing power consumption by up to 90% during idle periods.
- Automatic regenerable H2O/O2 purifier
- Attainable purity O2<1 ppm , H2O<1 ppm (dew point also available for moisture reading)
- Industry leading low leak rate of <0.05%Vol/h
- Stainless steel encapsulated blower with frequency converter
- Circulation capacity more than 20 m³/h (50 cfm) at ΔP = 60 mbar (60 Hz)
- World-wide operation using standard power supply
- Integrated high vacuum feedthroughs
- Conform to CE

- 1 year structural and mechanical warranty .

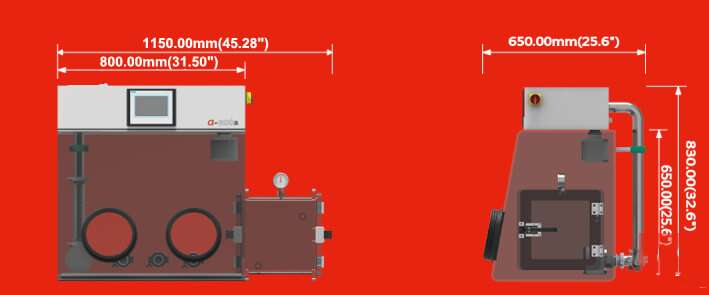

Dimensions

- Internal dimensions: 650mm (L) x 600mm (W) x 650mm (H) (25.6" x 23.6" x 25.6")

- External dimensions: 1150mm (L) x 650mm (W) x 830mm (H) (45.28" x 25.6" x 32.6")

- Shipping Dimension：1250mm(L) x 750mm(W) x 930mm(H) (35.4" x 29.5" x 36.6")

- Shipping Weight：80 kg (176.3lbs)

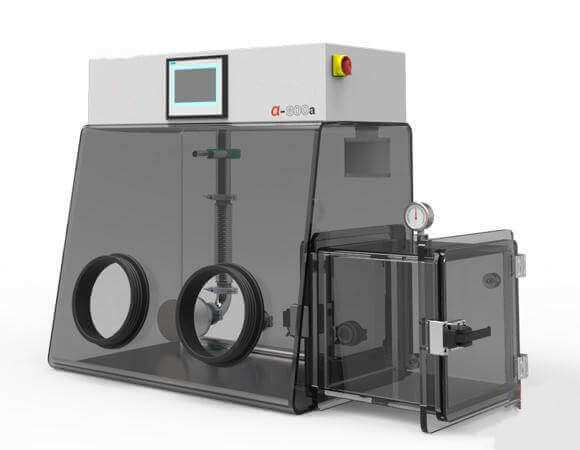

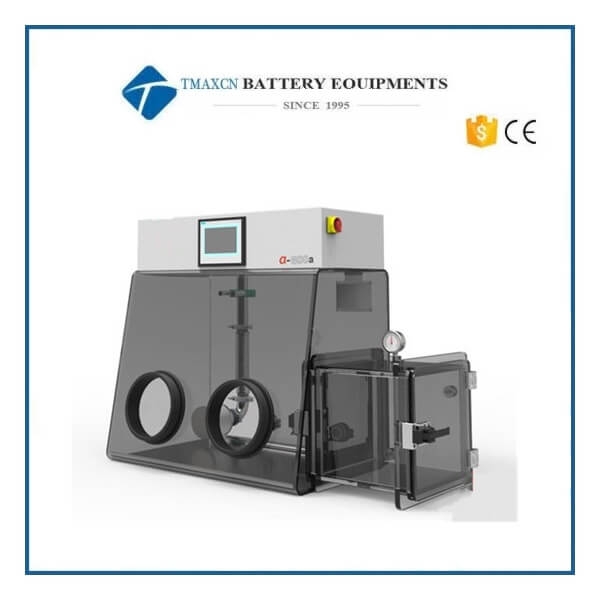

Glove box

Analyzer

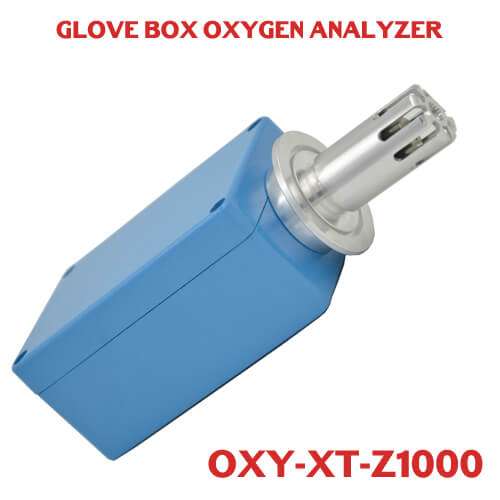

Trace PPM Oxygen Transmitter

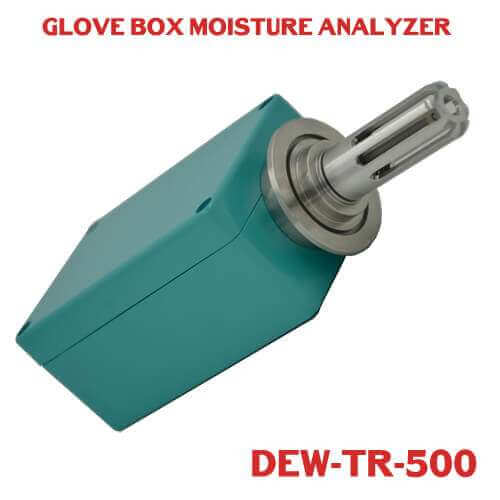

Trace PPM Moisture Aanlyzer

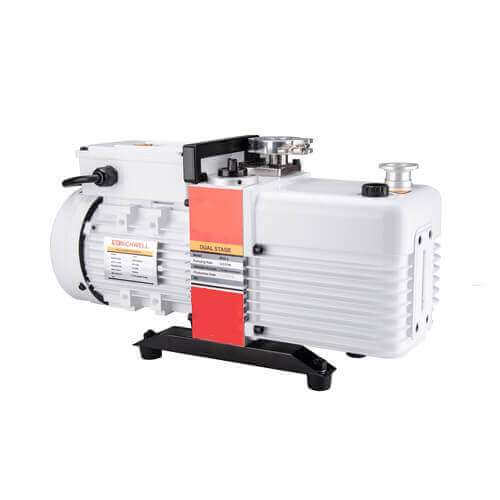

Vacuum Pump

&Blower

Vacuum Pump

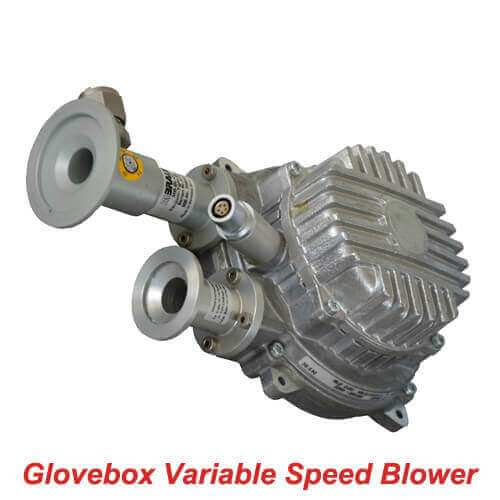

Blower
