Planetary ball mill is a necessary device for mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production of high-tech materials. The product is small in size, full in function, high in efficiency and low in noise. It is the ideal equipment for scientific research units, colleges and universities, and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time in each experiment). The vacuum ball mill can be used to grind samples in vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments. Speed, forward and reverse rotation time, and total grinding time can be set according to process requirements.



How it works:

PBM series planetary ball mill is equipped with four ball mill tanks on the same planetary mechanism disk, when the planetary disk rotates, the ball mill tank rotates around the axis of the turntable while rotating around its own axis, making planetary movement. The grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. The product can be ground and mixed by dry and wet methods with different particle sizes and materials, and the minimum particle size of the grinding product can be 0.1 micron (that is, 1.0×10mm-4).



Technical parameters:

Model number	PBM-H-4L
Ball mill tank volume (ML)	50ML~1000ML*4
Ball mill tank material	Optional hard steel, stainless steel, zirconia, agate, corundum, tungsten carbide, nylon, polyurethane, PTFE and so on
Grinding material	Tungsten carbide, stainless steel, agate, zirconia, corundum, etc
Maximum loading per tank	The material and grinding medium shall not exceed two-thirds of the volume
Feed size	Brittle materials less than 10 mm, other less than 3 mm
Discharge size	Up to 0.1 micron (depending on material characteristics)
Rotational speed	The maximum revolution is 35-810rpm and the maximum rotation is 70-1620rpm
Speed ratio (revolution: rotation)	1:2
Speed regulation mode	Variable frequency speed regulation
Planetary disk drive mode	Gear drive
Operating voltage	Single-phase 220V, 50HZ
Host motor power and frequency conversion power	1.5KW (Motor brand is Dedong, inverter brand is Delixi)
Working mode	Two or four tanks working at the same time
Maximum continuous working time	72 hours
Program control	Better man-machine interface integration (4.5-inch touch screen configuration), set free and program mode, program mode can store 9 different process recipes, easy to call and store, can set the total fixed, forward, reverse, interval standby time, repeated alternating operation, real-time operation equipment can overcurrent, overvoltage, overload protection alarm.
Lubrication method of planetary mechanism	The transmission system of the planetary mechanism uses gear box type liquid oil immersion lubrication, which solves the wear caused by not lubricating the transmission components in time, reduces noise and shortens the service life of the equipment.
Reference size (MM)	870 (L) *550 (W) *715 (H)
Reference weight (KG)	About 165



Product characteristics

a. Equipment through professional appearance design, shell using high precision laser cutting, CNC bending molding, generous and exquisite, high-end stable;

b. The planetary disk and structural components are processed by CNC processing technology, and the nitriding metal heat treatment process ensures that the rotating shaft is wear-resistant to prevent shaft breakage. The transmission gear is made of non-metal and metal combination precision gear with high temperature and wear-resistant resistance, and the gear box is soaked with liquid oil for lubrication, which is safe and reliable, low noise, no pollution and low loss.

c. Equipped with induction light device: the working light is controlled by infrared human body sensor, people come to light, people go light off, which is convenient and energy saving.

d. The ball grinding tank adopts the planetary movement, the ball grinding efficiency is high, the particle size is fine;

e. The inverter has undervoltage and overcurrent protection, which can protect electrical parts such as motors.

f. The cover of the machine adopts the hydraulic support rod to cover, and the electromagnetic safety lock and the latch type limit switch ensure the normal operation of the equipment and the personal safety of the operator;

g. The glass of the window is made of double-layer vacuum tempered glass, which not only soundproofes and reduces noise, but also ensures personal safety. The ball grinding cavity is inlaid with sound-absorbing cotton;

h. Electrical control part through the design of independent control box equipment, 5 sets of exhaust fans forced air heat dissipation, composed of one in one out of the internal circulation heat dissipation system;

i. Low center of gravity, stable performance, compact structure, easy operation, safe and reliable, low noise, no pollution, small loss;

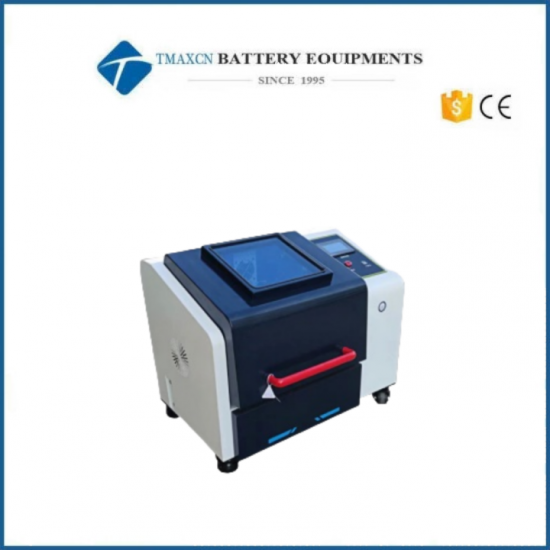

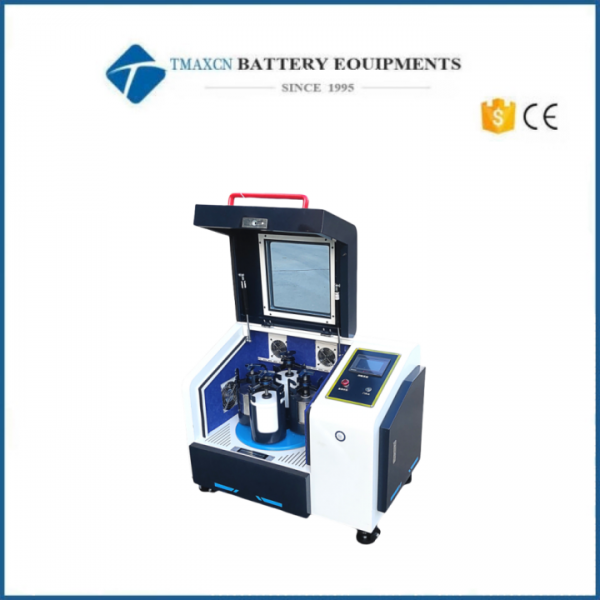

High-energy planetary ball mill products related pictures;







(Patented product -- three-claw self-locking device)
