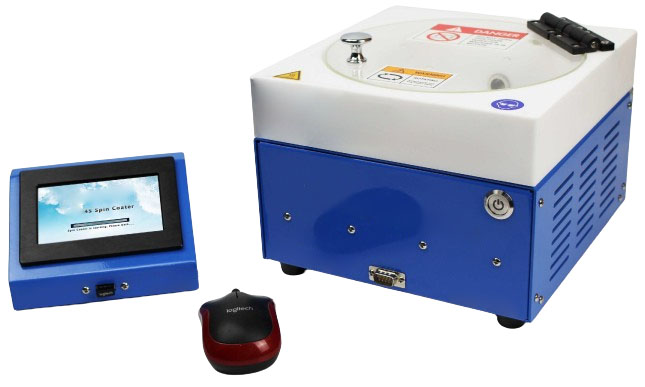

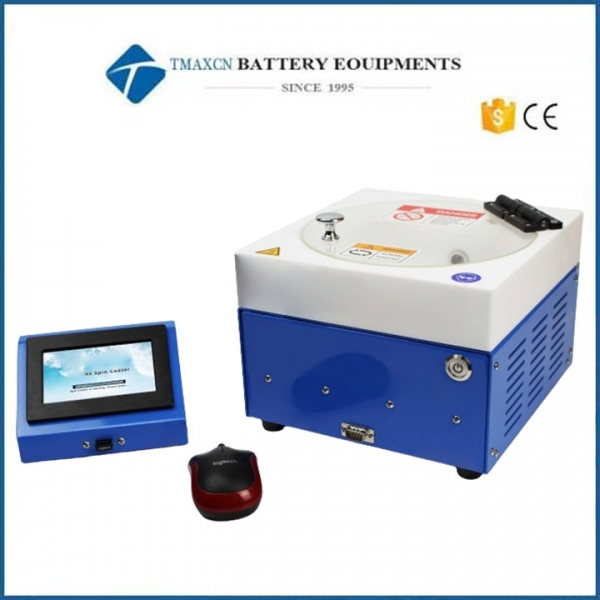

Lab 200C Acceleration Adjustable Spin Coater with PTFE Inner Cavity

Substrate size

5-50mm

Speed range

50- 10000RPM

Acceleration range

10- 10000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Heating range

Room temperature -200℃

Human machine interface

4.3-inch touch screen

Communication interface

Enable to connect with wireless mouse and keyboard： machine can place inside the glove box and operate by remote control outside the glove box

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited groups data,10 speeds per group (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

350W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Weight(Spin Coater)

10KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
