Hydraulic Press Double Plate Heating Mold with Temperature Controller Up to 300℃

  • Model Number:

    TMAX-PCH600
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

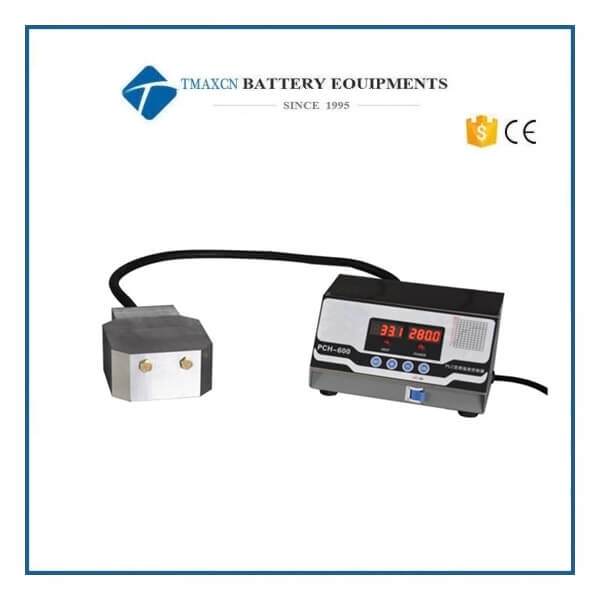

Hydraulic Press Double Plate Heating Mold with Temperature Controller Up to 300℃


Double plate electric heating die is an electric heating die composed of two heating plates. The sample is placed between the two heating plates and heated directly by the temperature controller. The high temperature of the mould can reach 300 ℃, and the thickness of the pressed film is 50um-500um. It is suitable for the study of polymer materials and other film materials, and can be used as a small flat vulcanizer. It is suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields. It is a complete set of equipment for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.


Standard configuration

Electric heating mold(customizable)  1 set

High temperature insulation board  1 set

Temperature controller 1 set


Optional

Hydraulic hot press machine

Water coolerIt is recommended to configure water cooler if rapid cooling is required after mold heating.


Technical Parameter

Shape of compressible sample

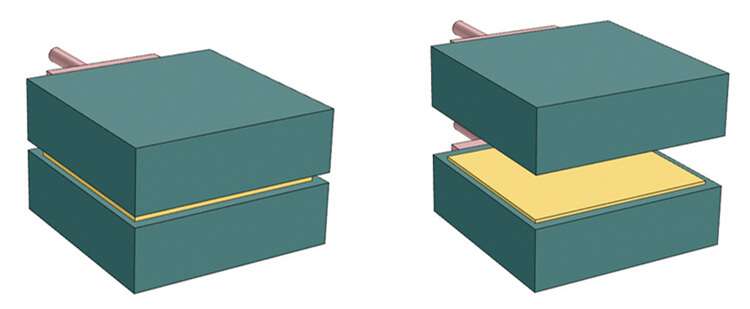

Shape self-assessment: two square plates are heated, and the sample is placed in the middle of the two plates for heating or pressurizing

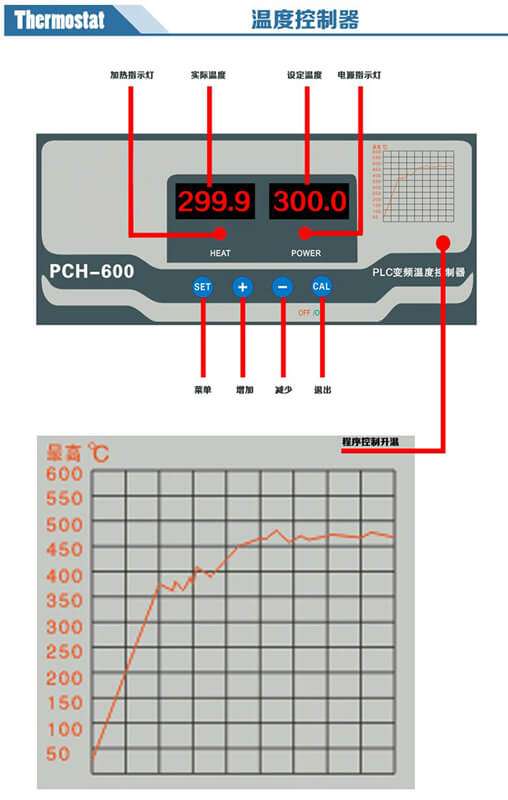

Thermostat type

PLC program temperature controller, room temperature - 600.0, accuracy 0.1

Mold heating temperature

Room temperature - 300

Mold heating size

100×100mm or 180×180mm

Die material

Alloy tool steel: Cr12MoV

Die head hardness

HRC60-HRC62

Mold Dimensions

100×100×120mm or 180×180×130mm

Mold weight

8kg or 32kg

Standard configuration

2 sets of flat heating mould + 1 set of high temperature heat shield + 2 sets of intelligent temperature controller (hydraulic press and water cooler are optional)
