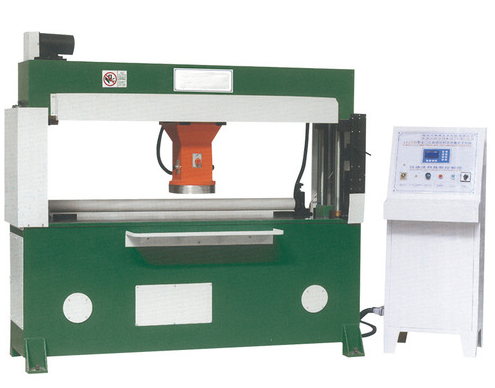

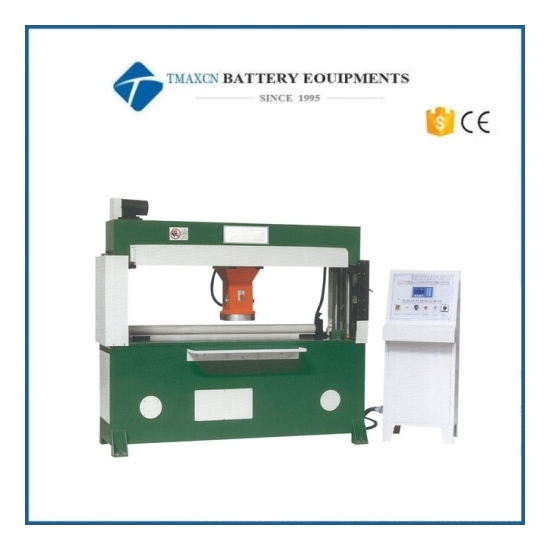

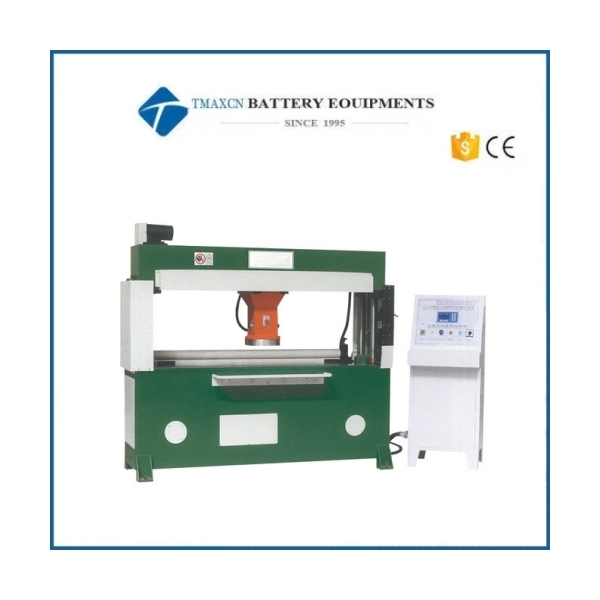

Hydraulic Automatic Travel Head Die Cutter Press Machine For Footwear Mass Production

Hydraulic Automatic Travel Head Die Cutter Press Machine For Footwear Mass Production

Uses and features:

The computer moving head cutting machine is suitable for continuous blanking of non-metal coil material with the same specification. It can be used in shoe making, ball making, sandpaper, luggage, medicine and other industries.

1, the use of computer PLC man-machine fruit surface, digital control, can achieve automatic feeding, automatic knife punching, can have a variety of arrangement pattern selection, automatic setting of punching times, high precision, material saving, high work efficiency, reduce labor intensity.

2, the PLC program control center has a memory function for the setting of operation instructions, which is not affected after the power is cut off or the power is cut off after work, and is easy to operate again.

3, the use of servo motor to control the horizontal movement of the punch, multi-layer material with the cylinder clamping step material, the machine automatically complete the material blanking, and the punch displacement distance and feed length can be accurately set, to solve the problem of multi-layer material feeding layering length is not accurate.

4, the machine has a variety of points, manual, automatic and other ways, workers only need to pick up finished materials, reduce labor intensity, improve work efficiency.

5, the machine has dislocation, cutting tool, die transposition and other punching modes, you can pick up materials, save raw materials 10%-15%.

6, double cylinder, four-column automatic balance connecting rod structure, to ensure that each cutting position cutting depth is the same.

7, the unique setting mechanism, with the cutting tool and cutting height, so that the stroke adjustment is simple and accurate.

8, the central automatic lubrication system to ensure machine accuracy and improve machine durability and service life.

9, special specifications can be customized.

Component selection :a. cutting plate micro-motion device (make cutting plate evenly consumed, save cost); b. Electromagnetic sucker (used to fix the die); c. Die rotating head mechanism.

Technical parameters
