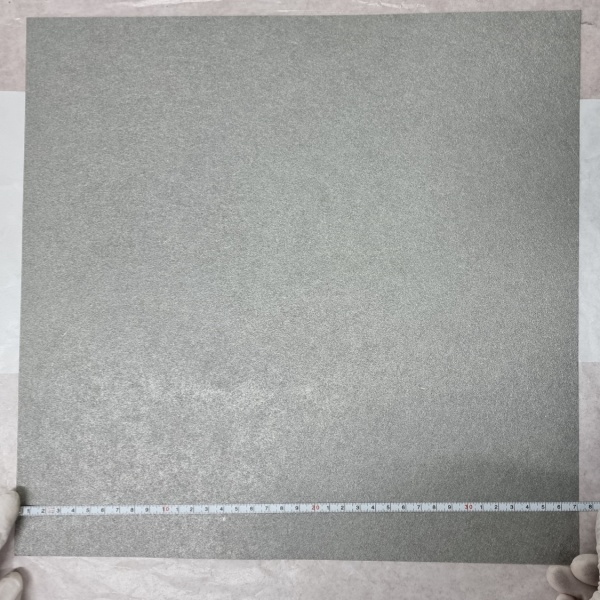

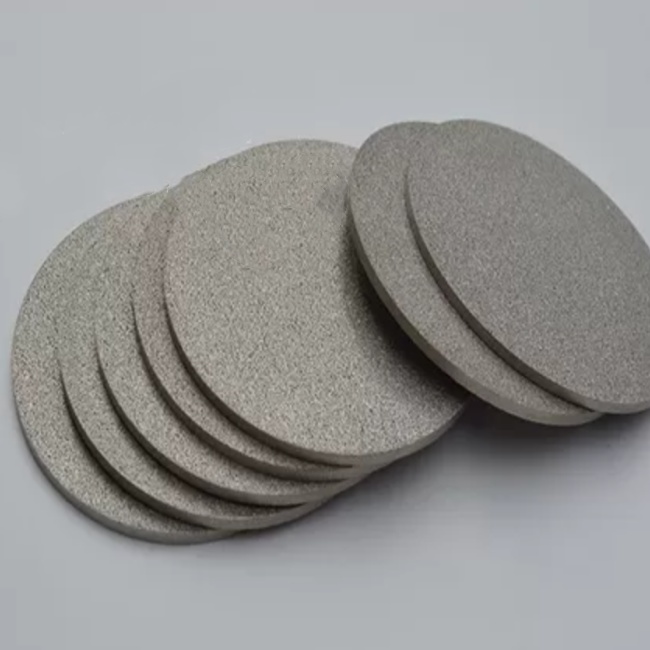

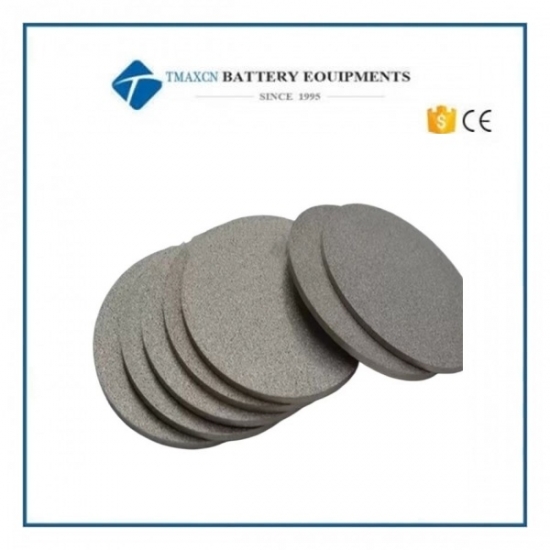

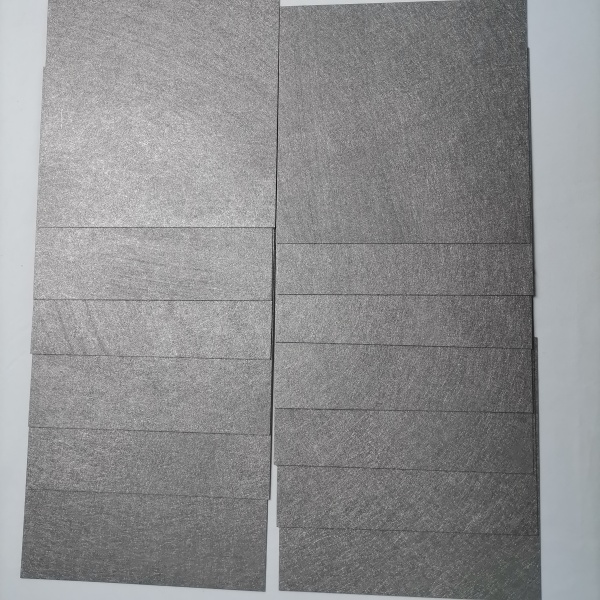

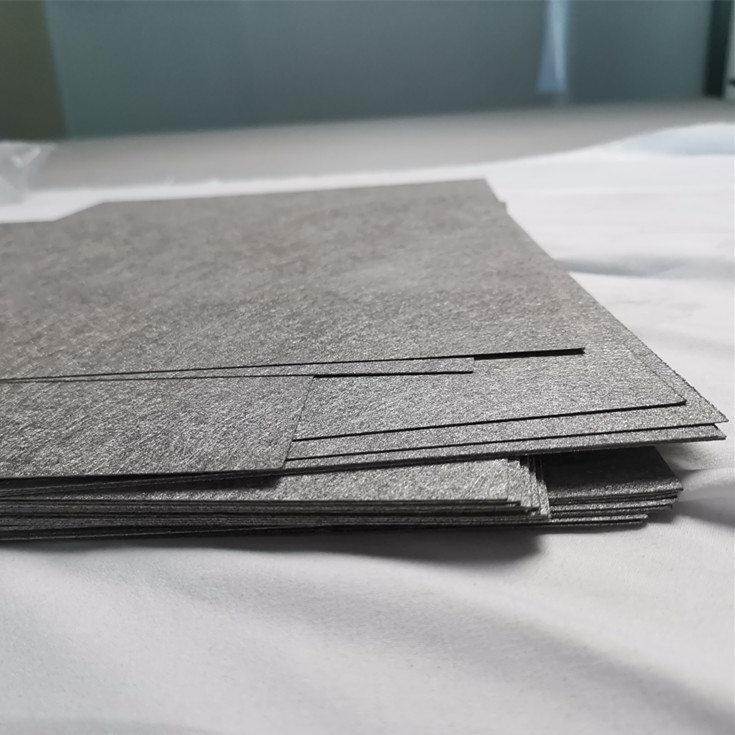

Highly Pure Titanium Foam Electrode By Reliable Suppliers
Model Number:
TMAX-Titanium-Foam36Dimension(L*W*H):
220mm*300mm or customized as requestCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
1 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5um-100um Aperture Titanium Metal Foam For SaleNext:
Profile Foamed Titanium Suppliers With Budget-friendly Price
Highly Pure Titanium Foam Electrode By Reliable Suppliers
Discount is Available: ＞5pcs, 15% OFF
Quantity Discount is Available: ＞10pcs, 25% OFF and Free Shipping
For more product information and ordering detail, please contact: David@tmaxcn.com
Introduction
Titanium foam with high purity titanium powder as raw material, after screen, cold isostatic pressing molding, high temperature, high vacuum sintering. Thus titanium filter with its high-tech materials and special molding process, has the unique excellent properties.
Specifications
Color |
Light grey |
Dimension |
200mm*300mm or customized as request |
Thickness |
0.6-3.0mm |
Excessive precision (The aperture) |
5um-100um、 |
Filtration accuracy |
0.45um-100um |
Temperature resistance |
800 ℃ |
Porosity |
28-50% |
Transmittance rate |
0.02-20M3cm/m2h.mmH2O |
Maximum working pressure range |
0.6Mpa |
Compressive strength |
0.5-1.5Mpa |
Reference dimensions
0.6mm*200mm*300mm |
0.8mm*200mm*300mm |
0.9mm*200mm*300mm |
1mm*200mm*300mm |
1.1mm* 200mm*300mm |
1.2mm*200mm*300mm |
1.3mm*200mm*300mm |
1.4mm*200mm*300mm |
1.5mm*200mm*300mm |
1.6mm*200mm*300mm |
1.7mm*20mm*300mm |
1.8mm*200mm*300mm |
1.9mm*200mm*300mm |
2 to 3mm*200mm*300mm |
The size can be customized |
