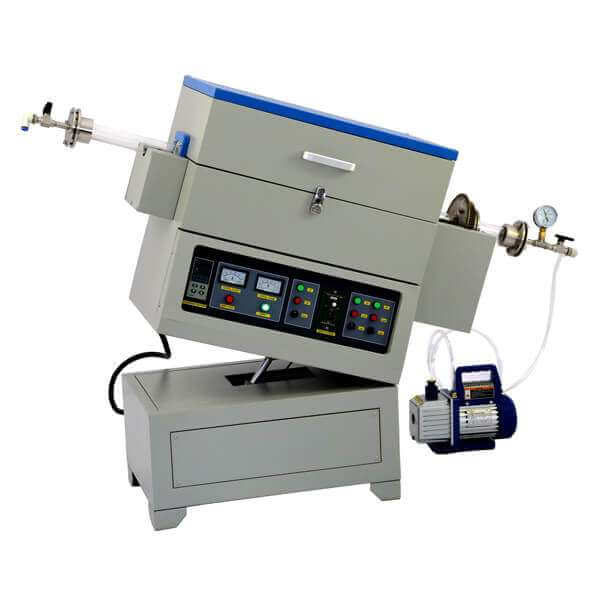

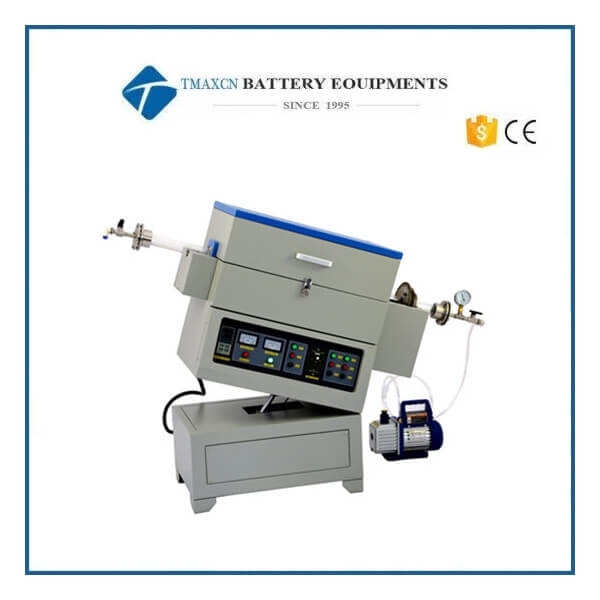

Model

1200-I

1200-II

Power

3.5  KW

   4 KW

Chamber size(mm)

Dia 60(OD) X1200

   Dia120(OD)X1200

Overall size

580X370X1050

600X440X1100

Input voltage

220V

Phase

Single

Heating element

Swedish Kanthal A1 imported resistance wire (resistance wire guaranteed for 2 years)

Control system

Using the yu electric program control thermometer (standard)

1. 30 program control temperature intelligent PID adjustment.

2, over temperature protection is broken accidentally protection with a temperature or broken

accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature

of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay

will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the

limited protection electric furnace).

3. With 485 communication interface (standard and standard for choosing software)

4. It has the function of power failure protection, that is, when the power is off, the program will

not start up from the beginning temperature, but the furnace will start to rise when the power is off.

5. The instrument has the function of temperature self-tuning

Chamber   materials

 1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction

and filter molding.

2. Adopt Japanese technology to form.

3. The spacing and pitch of the resistance wire in the furnace are arranged according to the

best thermal technology of Japan, and the temperature field is simulated by thermal software

control precision

 +/- 1 ℃

 Tube rotation speed

With the infinitely variable speed motor, the rotational speed can be adjusted between (1-20 RPM)

 Rotary motor power

 40W

The Angle of inclination range of the furnace

0-30°

Electric lifting support frame power

40W

Trigger

Phase-shifted trigger

 electric appliance

Zhejiang chint

silicon controlled rectifier

106/16E SEMIKRON

maximum temperature

 1200 ℃

rated temperature

 1100 ℃

heating rate

 ≤30 ℃/ Min (adjustable)

Recommended heating rate

≤20  ℃/ Min

Thermocouple Type

K

heating-length

400mm
