Hot Press

High Temperature Inert Gas N2 Vacuum Hot Press

  • Model Number:

    TMAX-PC-600C/CG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

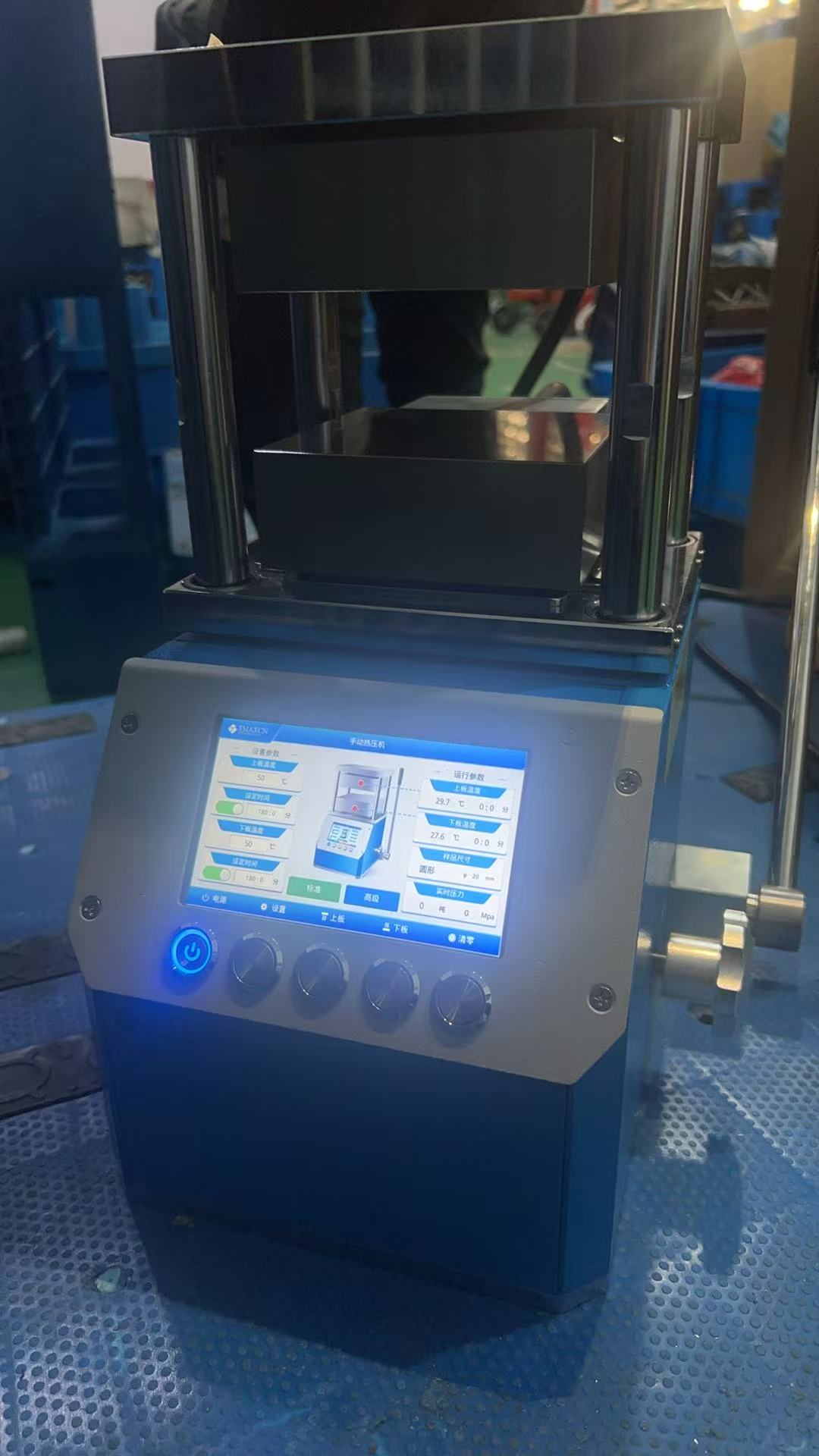

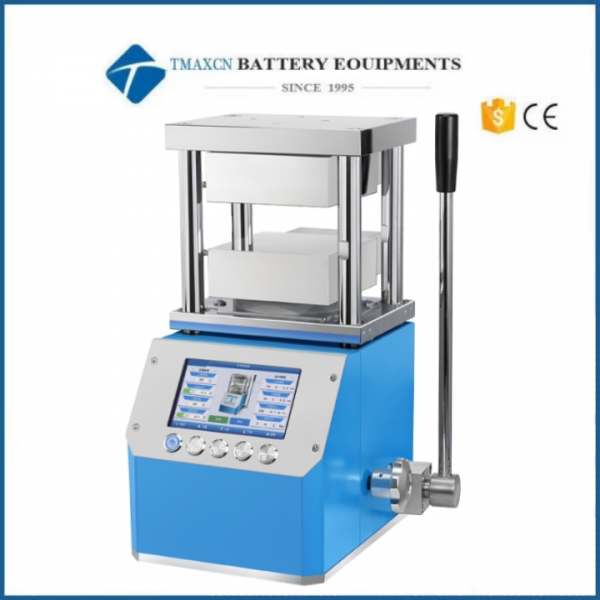

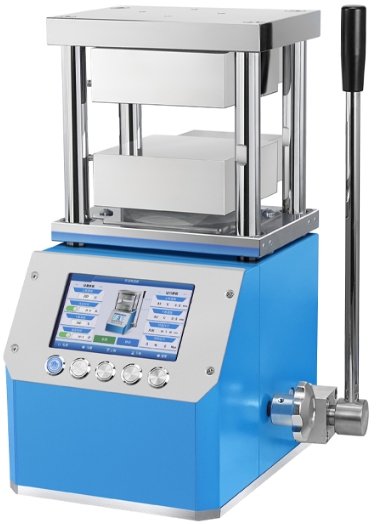

High Temperature Inert Gas N2 Vacuum Hot Press

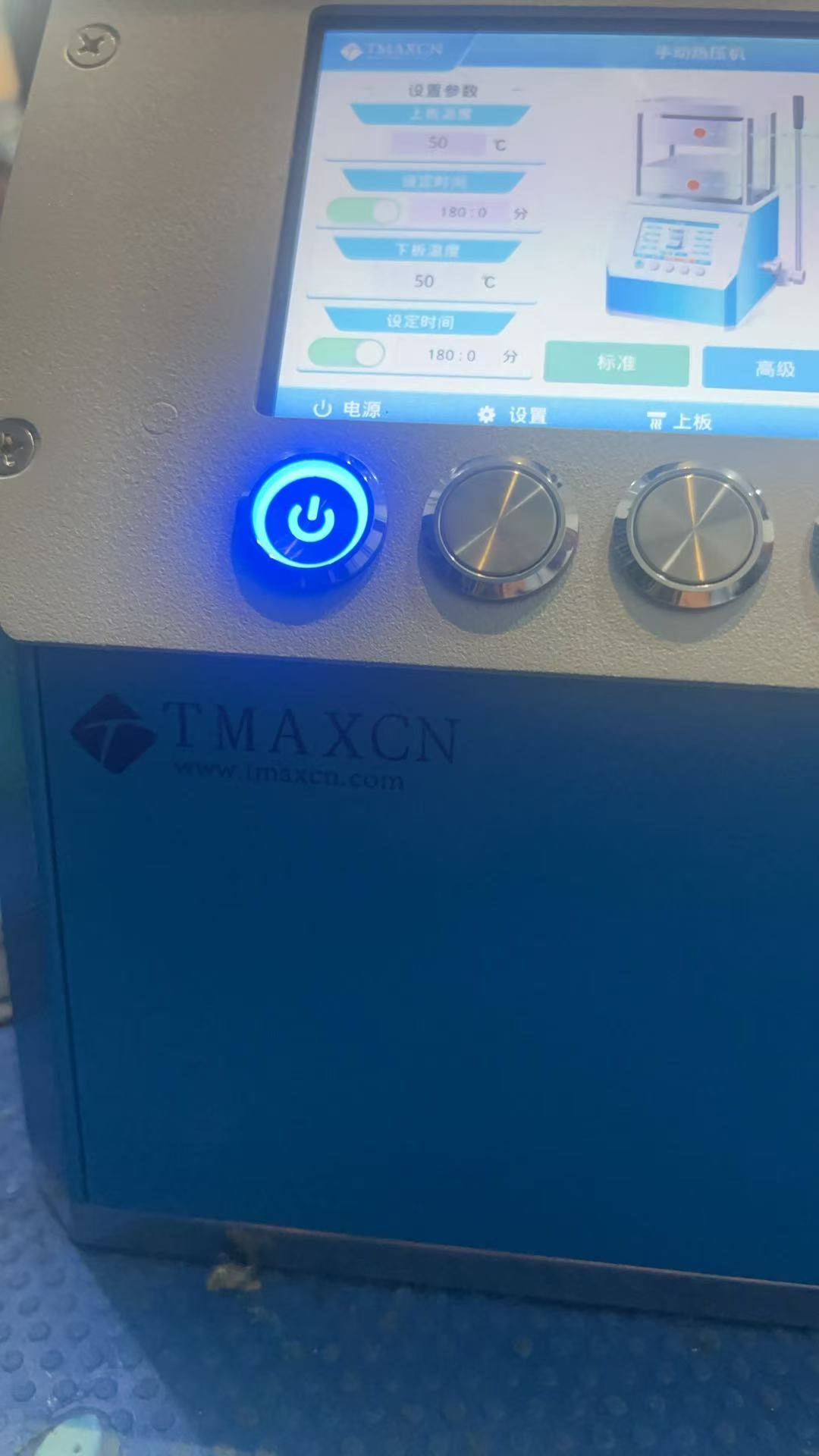

Setting interface

Set: In the operation interface, press the settings button to enter the settings interface, then press the settings button to move the settings content. After moving to the mold diameter, press the settings button again to return to the operation interface. Note: When the time is set to "0", it means that the time is set to infinity.



+In the operation interface, press the "+" key to increase the setting number.



-: In the operation interface, press the "-" key to reduce the setting number.


Pre-Pressing: Press the pre-pressing button to close the upper and lower heating plates together.

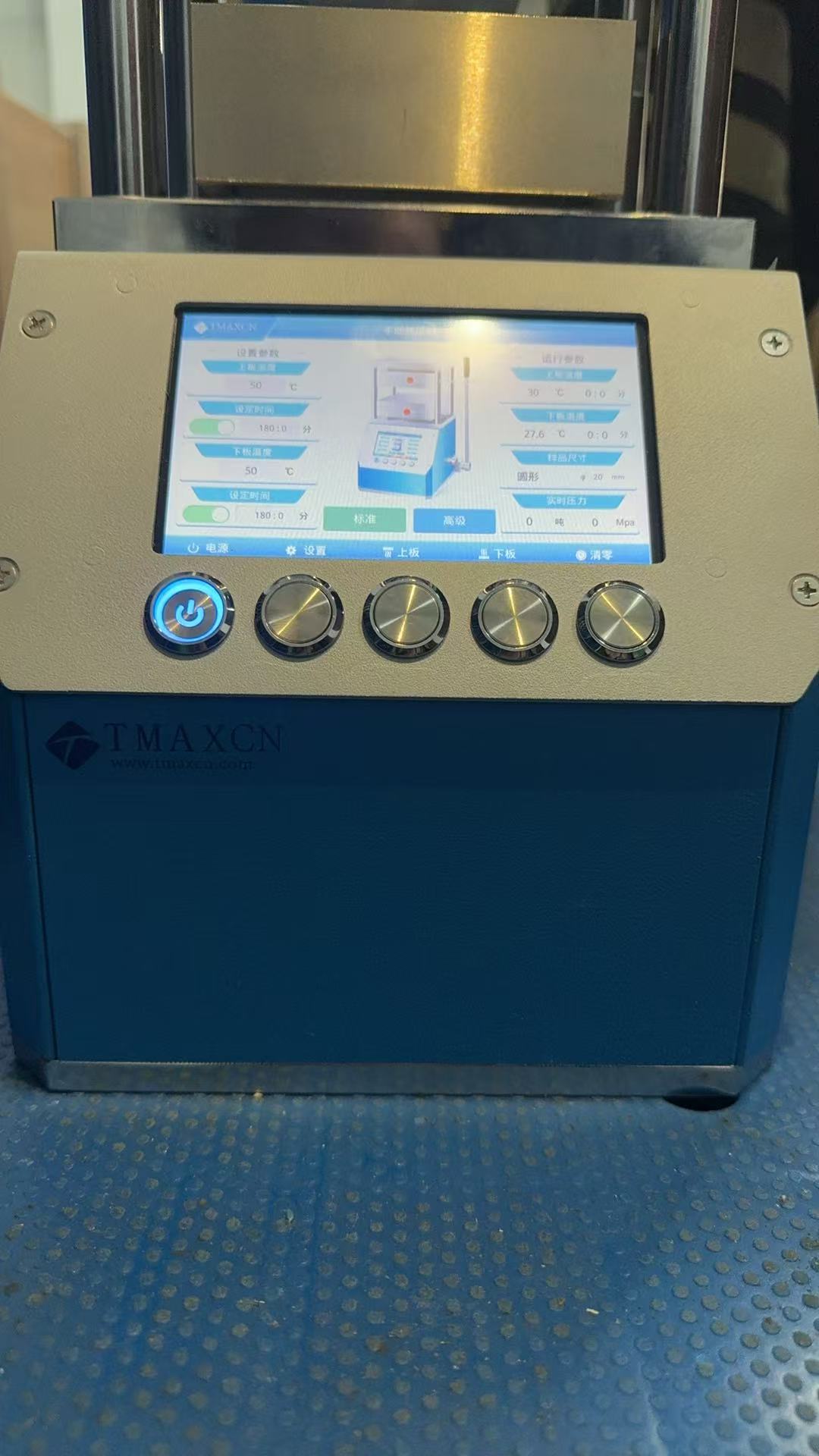

Operation interface


Upper: Press the "Upper Plate" button on the operation interface, and the upper plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed, the heating will stop. Or press the "Upper Plate" button again to stop heating the upper plate. During the heating process, all setting buttons are invalid.



Lower: Press "Lower Plate" on the operation interface to stop heating after the timer ends. Or press the"Lower Plate" button again to stop heating the lower plate.



Stop: When the device is in operation, pressing the "Stop" button will stop the motor from running and open the pressure relief valve to release the pressure.



Run: Press the "pressurization" button, and the equipment will start. When the pressure reaches the set pressure, stop pressurization and time to maintain pressure. When it is below the lower limit of pressurization, it will automatically replenish pressure. After the timing is completed, it will automatically release pressure.







Technical parameters

Instrument model

PC-600C/CG(500)

Pressure range

0-5.0 tons

Piston diameter

Chrome plated cylinder φ50mm (d)

Overall structure of main body

Equipment without sealing connection to reduce oil leakage point

Mold heating temperature

Room temperature -300.0℃/500.0℃

Constant temperature time

1sec~∞sec

Temperature control precision

0.1℃

Insulation method

Imported heat insulation board

Cooling method

Water-cooled rapid cooling [water cooler optional]

Mould size

Double plate heating 120*120mm(M*N)

Working space

140*140*60mm

Size of the whole machine

250*230*390mm (L*W*H)

Power supply

700W(220V/110V can be customized)

Main machine weight

55Kg

Dimensions of hot press
