High-Speed Rotary Die Cutting Machine with CCD Tester for Prismatic Cell Production
Model Number:
TMAX-ZTH-01Compliance:
CE CertifiedWarranty:
Two year limited warranty and lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
60 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Prismatic Cell Auto Die Cutter and Stacking 2-1 MachineNext:
High Efficiency Fully Automated Prismatic Cell Welding Line
High-Speed Rotary Die Cutting Machine with CCD Tester for Prismatic Cell Production
Ⅰ、Feature
7)FFU fans on the top of the equipment provide air supply, while an industrial dust removal system creates negative pressure suction at multiple stations
Ⅱ、Specification
Project |
Parameter |
Production efficiency |
>250PPM (electrode width 100-160mm) |
Burr size |
Vas12um ; Vbs12um |
Deviation correction accuracy |
≤±0.1mm |
Slice forming accuracy |
±0.2mm |
Mold Life |
1. After each mold repair, it can be used no less than 1.5 million times; 2. The number of times the mold can be repaired ≥ 10 times; |
Material box receiving accuracy |
±0.5mm |
Qualification rate |
≥ 99.8% (defects caused solely by the machine) |
Crop growth rate |
≥ 98% (faults caused solely by the machine) |
Overall dimensions |
W1750mm x L7000mm x H2350mm |
Weight/bearing capacity |
About 8000kg; >650Kg/M-2 |
Power |
AC380V three-phase; Voltage fluctuation ± 10%; Power: 30KW; Frequency: 50Hz |
Compressed air |
0.5-0.7Mpa (5-7kgf/cm2), dosage 200L/min |
Project |
Parameter |
|
Punching method |
Metal mold punching |
|
Material system |
Continuous coating of electrode sheet coil material after slitting, with one side outlet lug |
|
Roll diameter |
≤ medium 800mm |
|
Inner diameter of drum |
3"/6" |
|
Electrode winding error |
士3mm |
|
Snake shaped bending error of electrode sheet |
±1mm/m |
|
Height difference of electrode wave edge |
<2mm |
|
Electrode width W |
60~200mm |
|
Electrode length L |
80~300mm |
|
Tab length H |
10~30mm |
|
Tab edge distance Q |
5-20mm |
|
Tab width P |
10~50mm |
|
Pole ear belt material X |
0~2mm |
|
Round RB |
2~5mm |
|
Round corners RA |
Inner rounded corner |
Outer rounded corner |

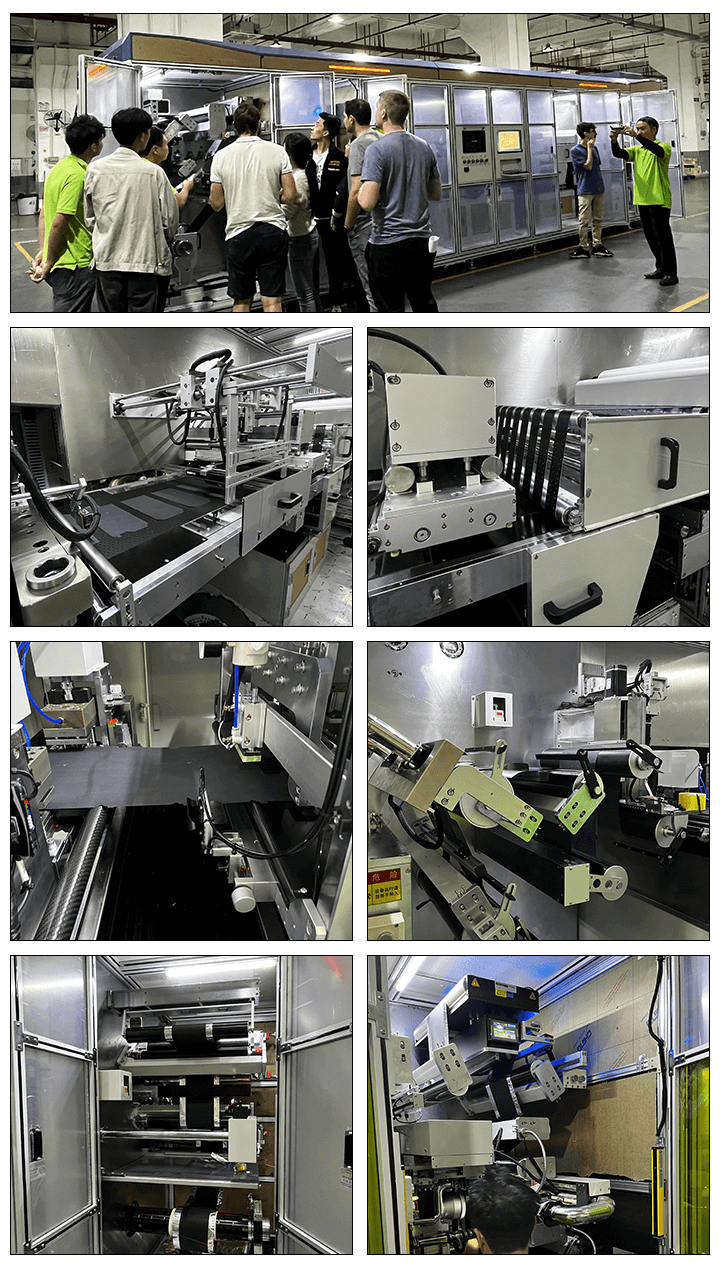

Ⅲ、Production Assembly Plant
