products
Planetary Ball Mill

High-end Small Lab Vertical Square Size Planetary Ball Mill

  • Model Number:

    TMAX-VerticalBM

  • Input Power:

    0.75KW

  • Dimension(L*W*H):

    870*550*715mm

  • Net Weight:

    80KG

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

High-end Small Lab Vertical Square Size Planetary Ball Mill

Features

High-end Small Lab Vertical Square Size Planetary Ball Mill


A.Characteristic

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, high precision laser cutting, CNC bending forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, nitriding metal heat treatment process, Can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure smooth and quiet equipment running at a high speed, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, shell in terms of product color, to bring new energy products, activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.

B. Parameter

Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work

simultaneously

Mode of transmission

Two thirds of the volume of the ball mill jar

Ball mill tank volume

0.05-1L per jar, total volume 0.2-4L

Feed granularity

Soil material≤10mm, and other

materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed

Model

Volume(L)

Configurable ball mill

specifications

Qty

Configurable vacuum ball

jar volume

Locking device

PBM-1

1

50-250ml

4

50-100ml

automatic

PBM-2

2

50-500ml

4

50-250ml

automatic

PBM-4

4

250-1000L

4

50-500ml

automatic

PBM-6

6

1-1.5L

4

50-1000ml

automatic

PBM-8

8

1-2L

4

50-1500ml

automatic

PBM-10

10

1-2.5L

4

50-2000ml

automatic

PBM-12

12

1-3L

4

1-2L

automatic



Model

Power supply (single-phase)

Power(kw)

Total time   to

run the set(min)

Alternating positive and negative running

time(min)

Adjustable speed Revolution(rpm) Rotation(rpm)

PBM-1

Single phase

220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-2

Single phase

220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-4

Single phase

220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-6

Single phase

220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-8

Single phase

220V-50HZ

1.5

1-9999

1-999

35-320

70-640

PBM-10

Single phase

220V-50HZ

1.5

1-9999

1-999

35-320

70-640

PBM-12

Single phase

220V-50HZ

1.5

1-9999

1-999

35-320

70-640



Model

Standard panel (optional intelligent, touch

screen)

Lubrication way

Model of speed regulation speed

Weight(kg

)

Size(Length

*width* height)

Noise≤d b

Model

PBM-1

intelligent

grease

Frequency control

107

870*550*71

5

55±5

PBM-1

PBM-2

intelligent

grease

Frequency control

108

870*550*715

55±5

PBM-2

PBM-4

intelligent

grease

Frequency control

109

870*550*715

55±5

PBM-4

PBM-6

intelligent

grease

Frequency control

110

870*550*715

55±5

PBM-6

PBM-8

intelligent

grease

Frequency control

175

940*620*760

60±5

PBM-8

PBM-10

intelligent

grease

Frequency control

178

940*620*760

60±5

PBM-10

PBM-12

intelligent

grease

Frequency control

180

940*620*760

60±5

PBM-12



C. Image

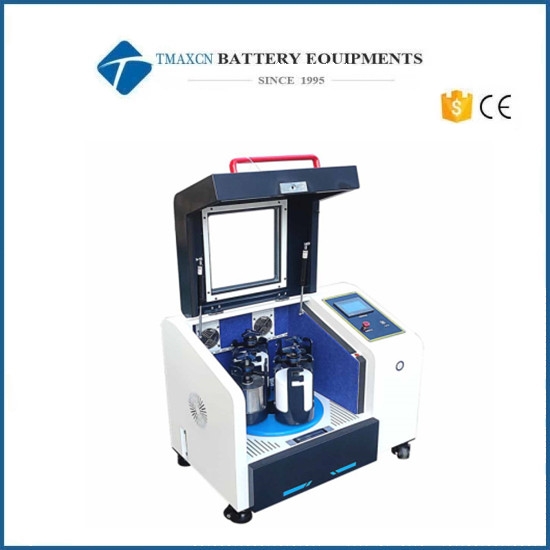

1.Modelling design
The equipment adopts high precision die stamping forming, generous and delicate, in
line with ergonomics
High-end Small Lab Vertical Square Size Planetary Ball Mill

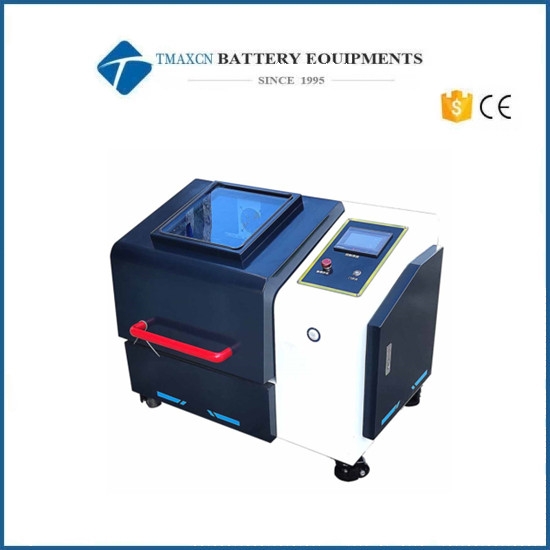

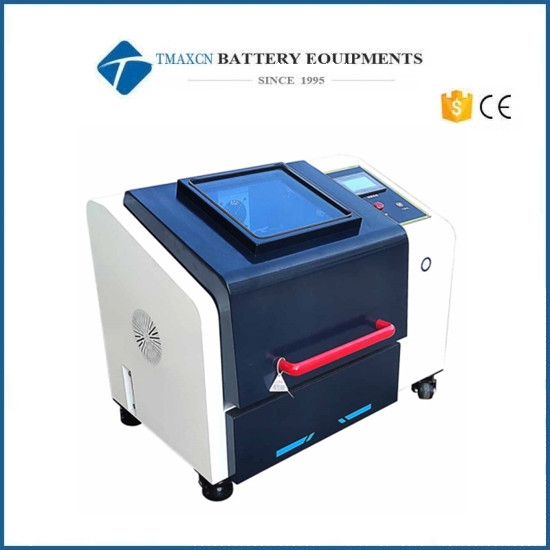

2. Safety electromagnet adsorption door
When the device door closes, the electromagnet pulls in, and the machine stops, and
the electromagnet is opened manually. The electromagnet is disconnected to prevent
the device from opening the boot cover artificially during operation, and prevent the
foreign body from flying out of the device chamber.
High-end Small Lab Vertical Square Size Planetary Ball Mill
3.The bottom sealing plate
The sealing plate is installed at the bottom of the equipment, and the exhaust outlet is
designed to prevent other materials and belt dust from leaking out and polluting the

customer's materials.

planetary ball mill

High-end Small Lab Vertical Square Size Planetary Ball Mill

High-end Small Lab Vertical Square Size Planetary Ball MillHigh-end Small Lab Vertical Square Size Planetary Ball Mill
