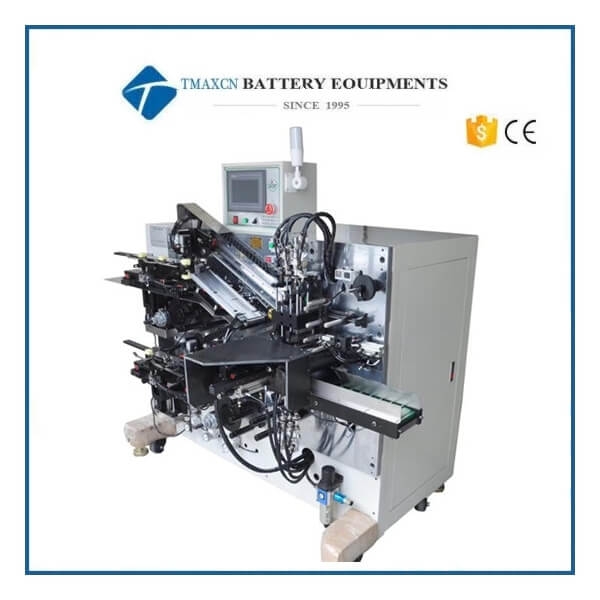

High Efficiency Automatic Winding Machine for Cylindrical Battery Pouch Cell
Model Number:
TMAX-YS-AUTOCompliance:
CE CertifiedWarranty:
Two Years Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Cylindrical Cell AA AAA 18650 Shrink Wrapping Machine With PLC ControlNext:
NMP Process Machine Solvent Processing System Waste Gas Treatment Equipment

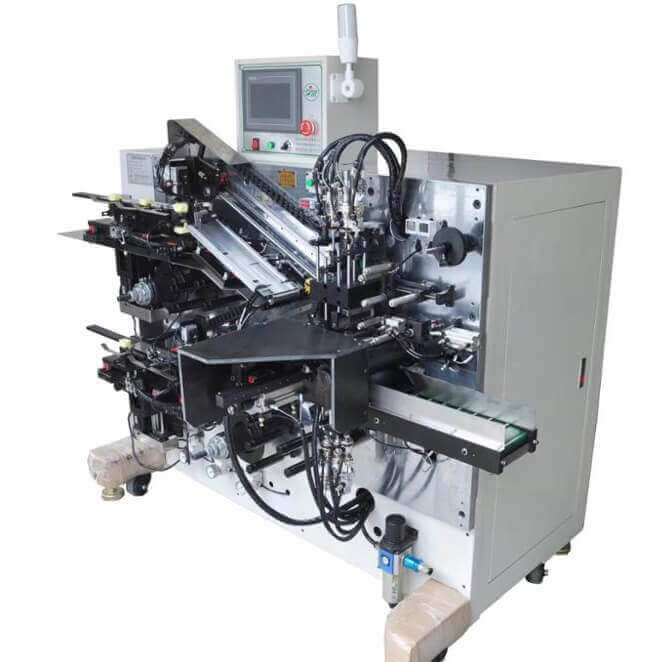

High Efficiency Automatic Winding Machine for Cylindrical Battery Pouch Cell
Features
1. Suitable for automatic winding production equipment of aluminium electrolytic capacitor ( Φ10m- Φ22m)
2. The machine fixes the nailed positive and negative aluminium foil electrolytic paper and automatically releases the material. According to the requirements, there are four layers (or two layers) of positive and negative foil with lead and two layers of electrolytic paper. One-way winding is used to make plain.
3. Servo motor is used to control the machine running smoothly and reliably.
4. The machine has a wide range of applications. Within the scope of use, the die can be adjusted at will, which is simple and convenient.
5. The machine is made of precise mechanical principle and high-performance electronic materials. The components and moulds are refined and processed with special steel, which is durable.
6. Automatic alarm and stop in case of material shortage or abnormal state in operation, with counting device
7. Exquisite structure, easy operation, maintenance and maintenance
Technical Parameter
Model |
TMAX-YS-AUTO |
Four main components |
1.wet oiling part 2.drawing part or guide part. 3.The winding part 4. the electric drive and control part. |
Winding speed |
conventional winding machine (winding speed 1000~2000m/min) high-speed winding machine (3000~4000m/min) ultra-high-speed winding machine (5000~8000m/min) |
Usage |
rubber pipes, nylon, polyester cord, polyester cord winding, high-tech fibers, coated yarns, artificial straw silk, lithium ion battery production, coated glass fibers, single filament, multi-filament flat filament (single filament or multi-filament take-up), staggered spindle and other fields. |
Warranty |
Two Years Limited Warranty With Lifetime Support |
Compliance |
CE certified |
