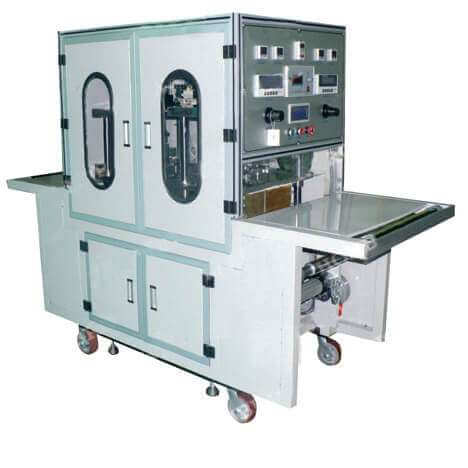

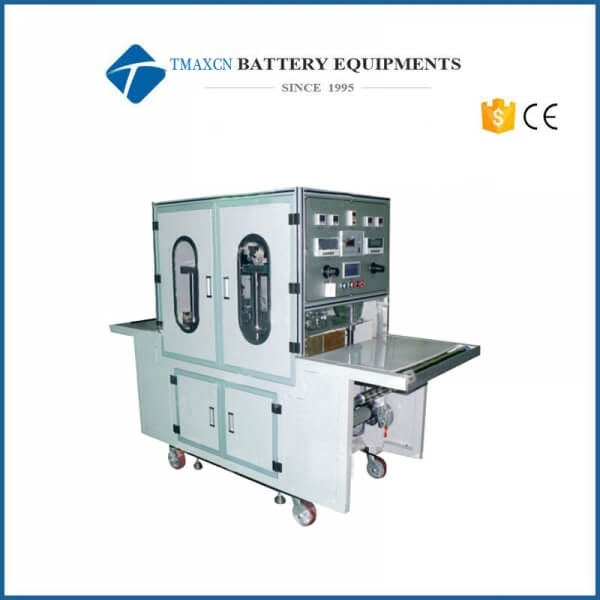

Heat Press Machine For Polymer Battery Core Hot Press
Model Number:
TMAX-A-017Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Vacuum Sealing Machine for Final SealingNext:
Four Station Battery Heat Sealing Machine
Heat Press Machine For Polymer Battery Core Hot Press
Functions
● Apply to lithium battery auto hot-pressing plastic soft package, cold press
finalize the sharp.
Features
● Separable structure gas rose axis, forklift load/unload material strap roll
material;
● Hot-pressing temperature: room temperature up to -120° C is adjustable, can be set up compensation, heating
at a single point in the template control accuracy ± -
3 ° C;
● Presetting cold, hot pressing temperature and the
holding time, have abnormal temperature alarm function;
● Automatic control is realized by using PLC, touch
screen man-machine dialogue, convenient operation and setting;
● Top and bottom template parallelism: ±- 0.02 mm, three pieces non-carbon paper are available down out
evenly when in the 1 T settle pressure, temperature;
● Hot pressing plate for copper, greatly improving the
heat transfer rate, improve the uniformity of the different location of the hot
platen temperature;
● Mylar circulating feeding, front-rear stability,
reduce the time of manual handling;
● Mylar volume gas rose axis loading, winding speed is
adjustable, gas rose axis can be separated, convenient load Mylar.
Technical Parameters(for reference):
ITEM |
HB-LRY300 |
HB-LRY350 |
Measures |
(L*W*H)2300*800*1800mm |
(L*W*H)2300*800*1800mm |
Weight |
About 850Kg |
About 850Kg |
Power |
AC220V 50HZ, 7.5KW |
AC220V 50HZ, 7.5KW |
Air source |
≧0.6Mpa,20L/Min |
≧0.6Mpa,20L/Min |
Applicable range |
L≤300mm w≤300mm |
L≤350mm w≤350mm |
Capacity |
Depend on cold & hot press time |
Depend on cold & hot press time |
Action |
≧99% |
≧99% |
