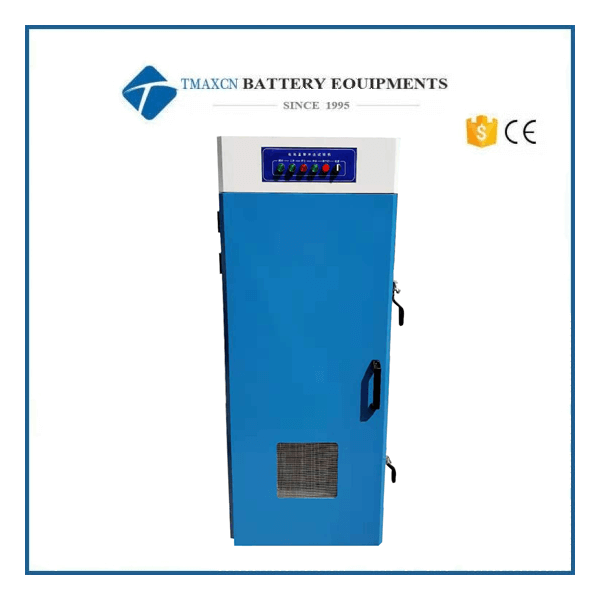

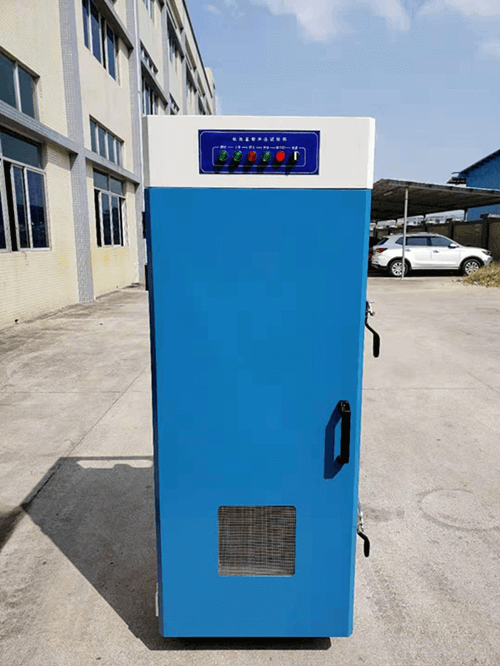

Gravity Impact Tester for Lithium Battery Safety Test
Model Number:
TMAX-ZSCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Semi Automatic Electrolyte Filling Machine with Sealing and Diffusion&Degassing FunctionNext:
Hydraulic Driven Crushing & Nail Penetration Tester for Battery Safety Test
Gravity Impact Tester for Lithium Battery Safety Test
The test sample battery shall be placed on a flat surface, and a 15.8mm (5 / 8 inch) diameter rod shall be placed in the center of the sample in a cross way. A 9.1kg weight dropped from a certain height of 610±25mm onto the sample.
SPECIFICATIONS
Drop weight |
9.1kg or 10kg |
Impact height |
610 mm or 1000 mm |
Impact mode |
lift the ball to a certain height and release it. The ball will fall freely in the vertical direction without tilting or shaking |
Inner box material |
stainless steel plate |
Outer box material |
cold rolled steel plate baking treatment |
Pressing |
1 piece of silica gel foaming pressing |
Exhaust fan |
it is located at the back of the box, and the exhaust duct is reserved, which is convenient for users to connect to the laboratory high-power exhaust fan |
Box door |
single door, double door, observation window (toughened glass), cold handle door lock |
Upper and lower impact surface |
stainless steel plate |
