Fully-auto Battery Cap Welding & Leak Testing Machine for Prismatic Cell Production
Model Number:
TMAX-A-024Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
60 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
High Efficiency Fully Automated Prismatic Cell Welding LineNext:
Auto Welding Machine for Prismatic Cell Production Line
Fully-auto Battery Cap Welding & Leak Testing Machine for Prismatic Cell Production
Ⅰ、Functions
● Apply for EV-battery cap welding, insulation resistance test before & after
welding, shell body air-leakage test, laser marking code and auto
classification.
Ⅱ、Features
● Insulation resistance test before & after welding● To match with different leakage test way according to the user request.
● Laser marking code on the battery rely on system test.
● Auto classification & collection.
Ⅲ、Technical Parameters(for reference)
ITEM |
MAIN PARAMETERS |
Dimension |
L x W x H ≈4500x2500x2000mm |
Weight |
About 2.5T |
Laser brand |
Rofin / IPG ( User defined) |
Welding way |
Continuous welding or single side welding |
Max power |
15KW( Adopt laser welding 2KW) |
Power supply |
To comply with the user’s
country |
Air source |
≥0.6Mpa, 50L/min |
Vacuum source |
Equipment include vacuum source |
Applicable battery range |
L 60-250, W 18-60, H 80-200 |
Capacity |
Normal laser welding speed 120mm/s |
Test pressure |
-90～0Kpa |
Test resistance |
100K～50GΩ |

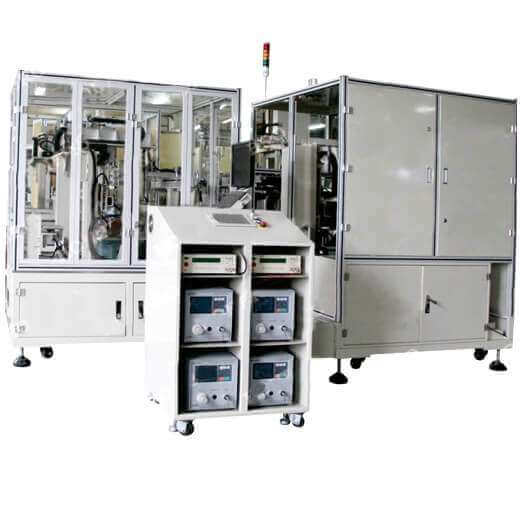

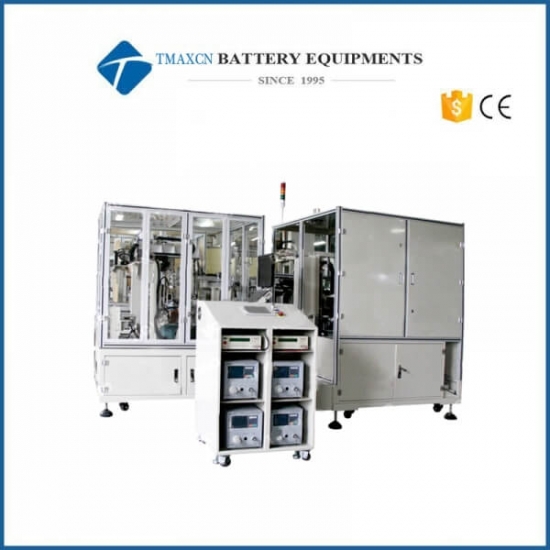

Ⅳ、Product Image
