Four Station Battery Heat Sealing Machine For Lithium Polymer Battery
Model Number:
TMAX-MY-06-300-4Input Power:
3500WDimension(L*W*H):
870*870*1500mmCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Vacuum Sealing Machine for Pre-Sealing after Electrolyte InjectionNext:
Top And Side Two Station Vacuum Sealing Machine For Lithium Polymer Battery

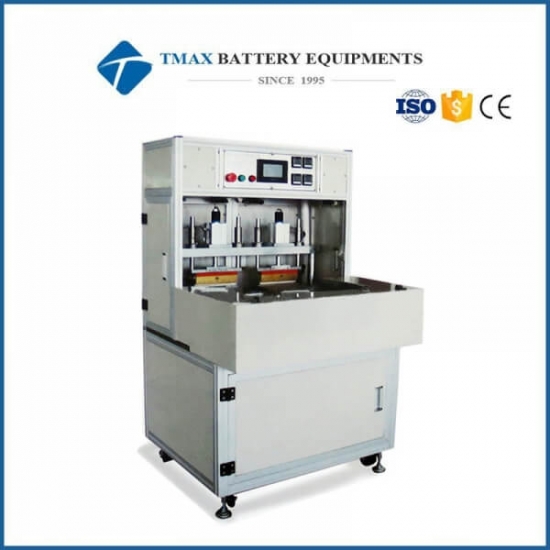

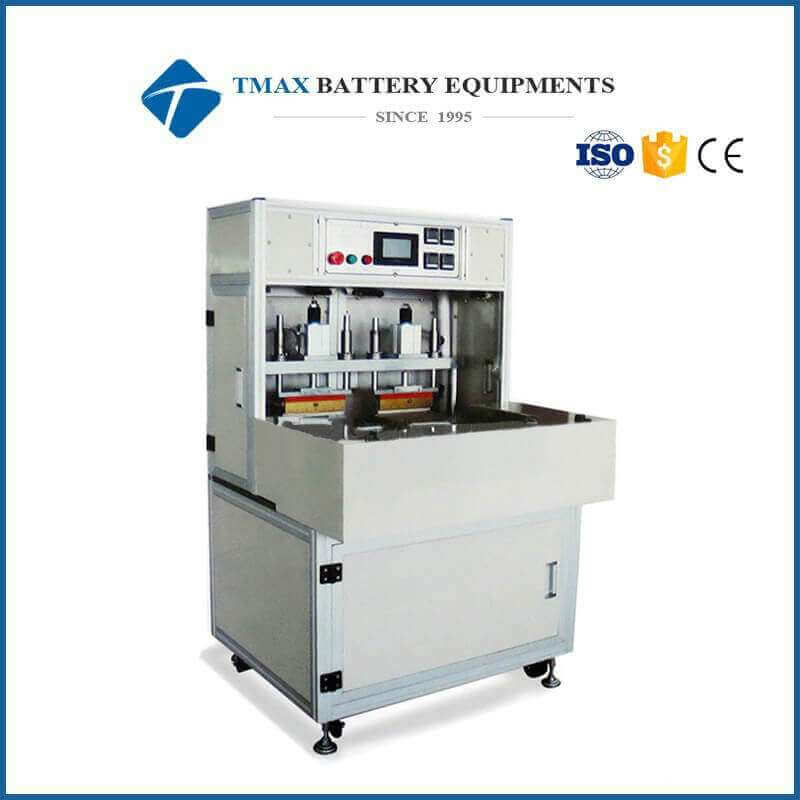

Four Station Battery Heat Sealing Machine For Lithium Polymer Battery
1.TMAX-MY-06-300-4
Four station sealing machine is used for lithium polymer battery pouch top and
side heat sealing before electrolyte filled.
2.Can
pre-set sealing temperature and sealing time.
3.Temperature
lower and higher alarm function.
4.Without
battery missing sealing or repeat sealing.
5.With
light curtain safety protection and back door switch protection.
6.With
our-put statistics function.
7.Adopt
programmable controller PLC to realize automatic control, touch screen
man-machine conversation, convenient operation and setting.
Working process :
Polymer
Battery into fixture, Battery feeding-top sealing position-side sealing
position-battery discharge, Finish battery top and side heat seal.
Model |
TMAX-MY-06-300-4 |
Type |
Turntable type, Four work station |
Source voltage |
AC 220V, 50HZ |
Power |
3500W |
Warranty |
One year limited warranty with lifetime support |
Air compression |
≥0.6MPa |
Size (L*W*H) |
870*870*1500mm |
Suitable battery size |
Top sealing≤280mm, Side sealing≤280mm |
Sealing stamp width |
2-10mm, Top sealing : 4mm, Side sealing : 6mm (customized) |
Sealing thickness |
0.19-0.3mm |
Sealing temperature |
RT-260℃ adjustable, Accuracy ±3° |
Sealing time |
0-99.9s, adjustable |
