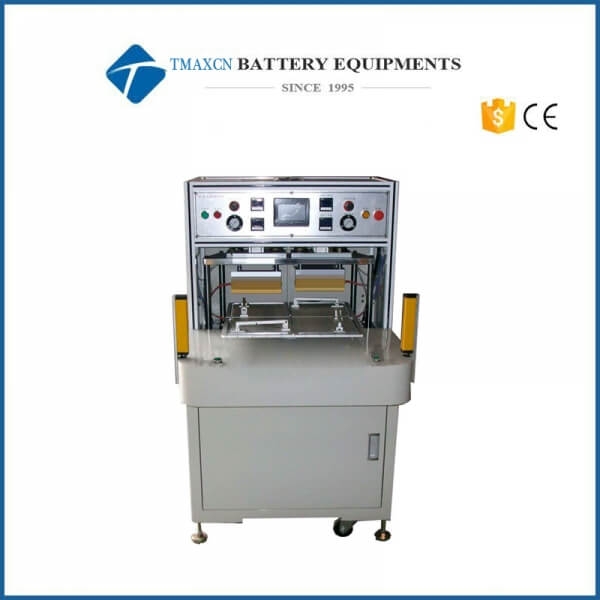

Four Station Battery Heat Sealing Machine For Lithium Polymer Battery
Model Number:
TMAX-TTS003Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Vacuum Heat Sealing Machine For Polymer BatteryNext:
Turntable type vacuum sealing machine for lithium ion pouch battery

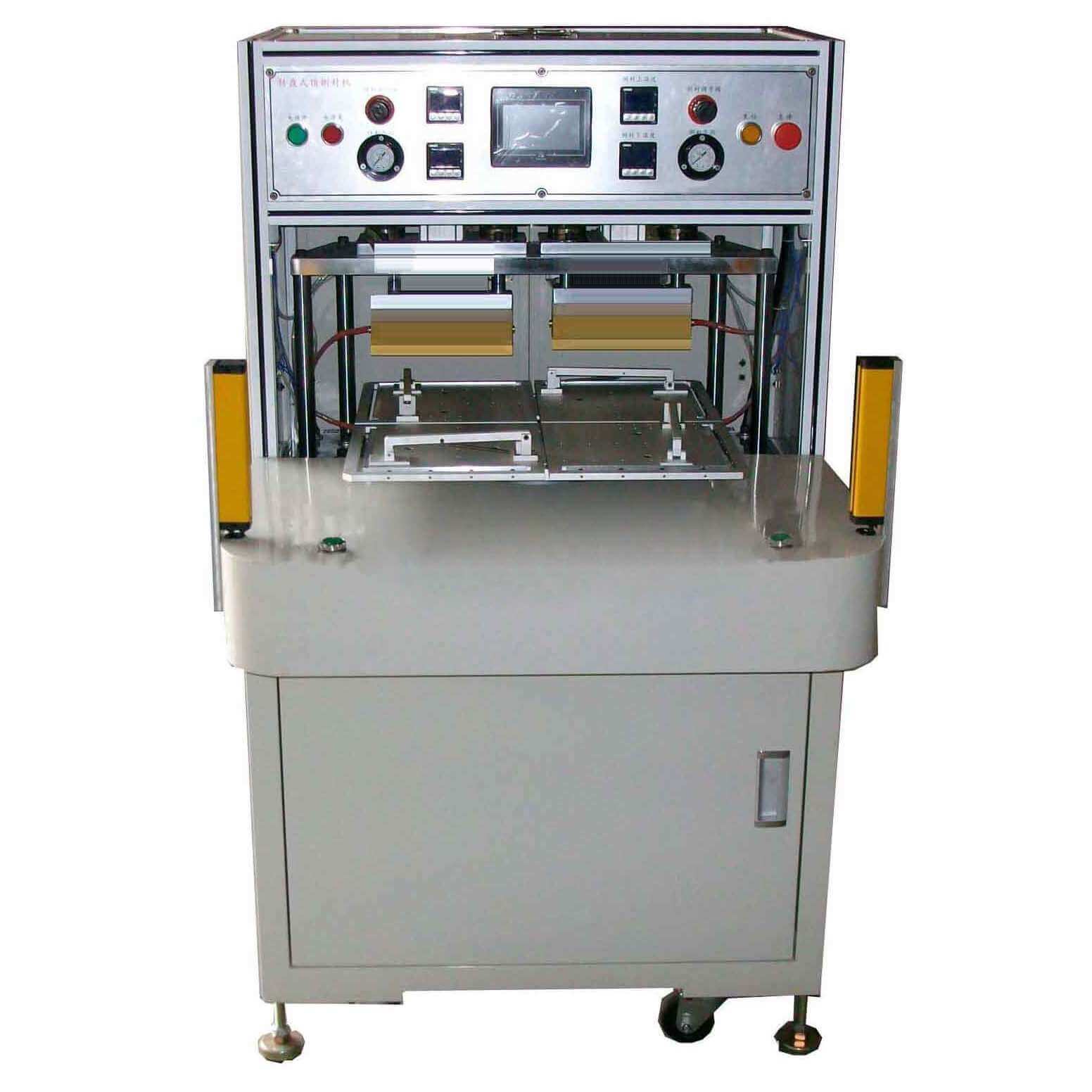

Four Station Battery Heat Sealing Machine
For Lithium Polymer
1.Suitable for soft packing lithium core top-side
heating vacuum sealing
2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30
3.To configure a single head pressure regulator
4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C
5.Fixture locating detection, double-side heating, temperature alarm, screen protection
6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation
Technical Parameters
| Main technical parameters |
TMAX-TTS001 |
TMAX-TTS002 |
TMAX-TTS003 |
| Size(L*W*H) |
870*870*1500mm |
970*970*1500mm |
1100*1100*1500mm |
| Weight |
500kg |
800kg |
1000kg |
| Max sealing size |
top:200mm side:200mm |
top:240mm side:240mm |
top:240mm side:240mm |
| Sealing head length |
210mm |
250mm |
330mm |
| Sealing stamp width |
2-10mm |
2-10mm |
2-10mm |
| Production capacity |
200-600pcs/H |
100-250pcs/H |
100-200pcs/H |
| Temperature error |
± 2 °C |
± 2 °C |
± 2 °C |
| Source voltage |
AC 220V |
AC 220V |
AC 220V |
| power |
3.5KW |
3.5KW |
3.5KW |
| Air supply |
0.6-0.7Mpa 10L/S |
0.6-0.7Mpa 10L/S |
0.6-0.7Mpa 10L/S |
