Planetary Ball Mill

Four Jars Planetary Ball Mill with Body Sensing Lamp

  • Model Number:

    TMAX-VerticalBM

  • Input Power:

    1.5KW

  • Net Weight:

    180KG

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

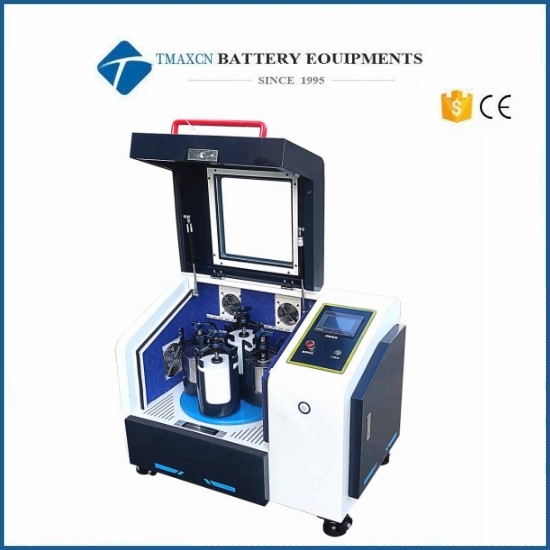

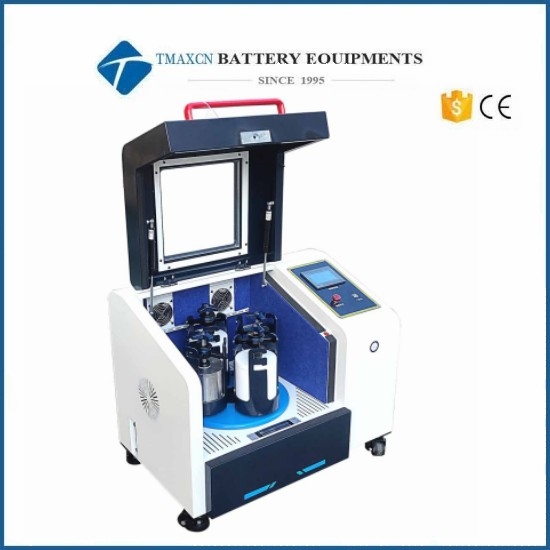

Four Jars Planetary Ball Mill with Body Sensing Lamp





A.Characteristic

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, high precision laser cutting, CNC bending forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, nitriding metal heat treatment process, Can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure smooth and quiet equipment running at a high speed, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, shell in terms of product color, to bring new energy products, activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.



B. Parameter

Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work simultaneously

Mode of transmission

Two thirds of the volume of the ball mill jar

Ball mill tank volume

0.05-1L per jar, total volume 0.2-4L

Feed granularity

Soil material≤10mm, and other materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed



Model

Volume(L)

Configurable ball mill specifications

Qty

Configurable vacuum ball jar volume

Locking device

PBM-1

1

50-250ml

4

50-100ml

automatic

PBM-2

2

50-500ml

4

50-250ml

automatic

PBM-4

4

250-1000L

4

50-500ml

automatic

PBM-6

6

1-1.5L

4

50-1000ml

automatic

PBM-8

8

1-2L

4

50-1500ml

automatic

PBM-10

10

1-2.5L

4

50-2000ml

automatic

PBM-12

12

1-3L

4

1-2L

automatic



Model

Power supply (single-phase)

Power(kw)

Total time to run the set(min)

Alternating positive and negative running time(min)

Adjustable speed

Revolution(rpm) Rotation(rpm)

PBM-1

Single phase 220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-2

Single phase 220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-4

Single phase 220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-6

Single phase 220V-50HZ

0.75

1-9999

1-999

35-370

70-740

PBM-8

Single phase 220V-50HZ

1.5

1-9999

1-999

35-320

70-640

PBM-10

Single phase 220V-50HZ

1.5

1-9999

1-999

35-320

70-640

PBM-12

Single phase 220V-50HZ

1.5

1-9999

1-999

35-320

70-640



Model

Standard panel (optional intelligent, touch screen)

Lubrication way

Mode of speed regulation

Weight(kg)

Size(Length * width * height)

Noise≤db

PBM-1

intelligent

grease

Frequency control

107

870*550*715

55±5

PBM-2

intelligent

grease

Frequency control

108

870*550*715

55±5

PBM-4

intelligent

grease

Frequency control

109

870*550*715

55±5

PBM-6

intelligent

grease

Frequency control

110

870*550*715

55±5

PBM-8

intelligent

grease

Frequency control

175

940*620*760

60±5

PBM-10

intelligent

grease

Frequency control

178

940*620*760

60±5

PBM-12

intelligent

grease

Frequency control

180

940*620*760

60±5



C. Image

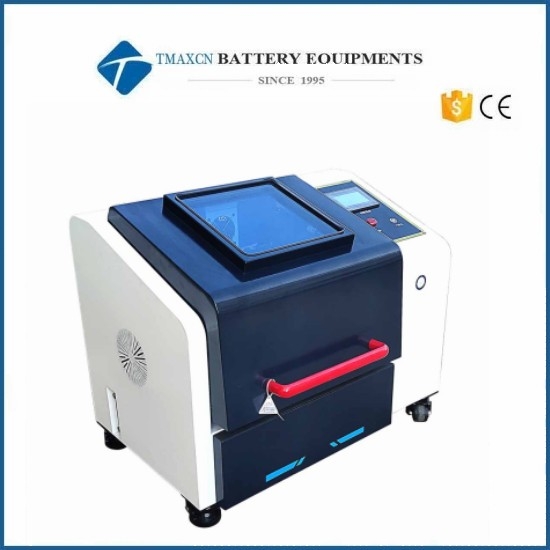

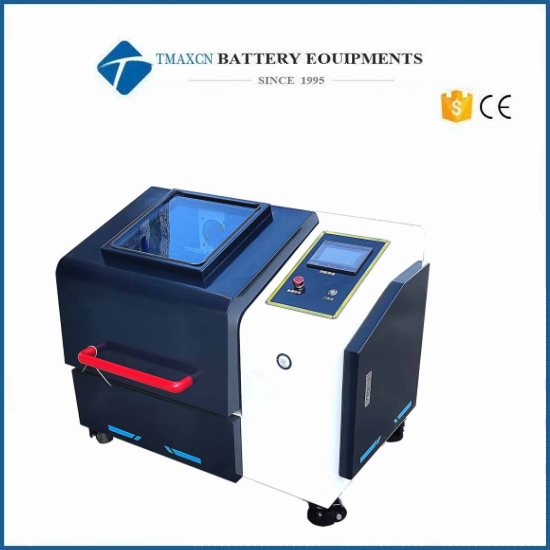

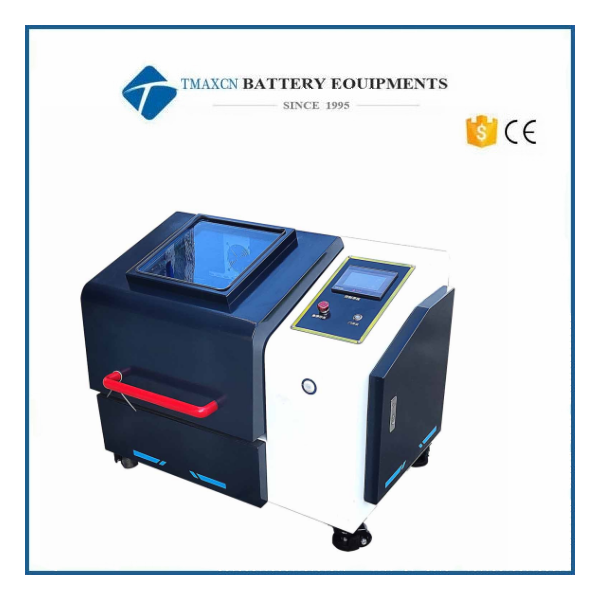

1.Modelling design

The equipment adopts high precision die stamping forming, generous and delicate, in line with ergonomics






2. Safety electromagnet adsorption door

When the device door closes, the electromagnet pulls in, and the machine stops, and the electromagnet is opened manually. The electromagnet is disconnected to prevent the device from opening the boot cover artificially during operation, and prevent the foreign body from flying out of the device chamber.



3.The bottom sealing plate

The sealing plate is installed at the bottom of the equipment, and the exhaust outlet is designed to prevent other materials and belt dust from leaking out and polluting the customer's materials.










planetary ball mill
