EV Battery Pack Module Automatic CNC Double Sides Spot Welding Machine for EV Battery Assembly Line
Model Number:
TMAX-DH-20000Input Power:
25KVAMax. Loading Capacity:
900*1300*1800mmNet Weight:
400KGCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

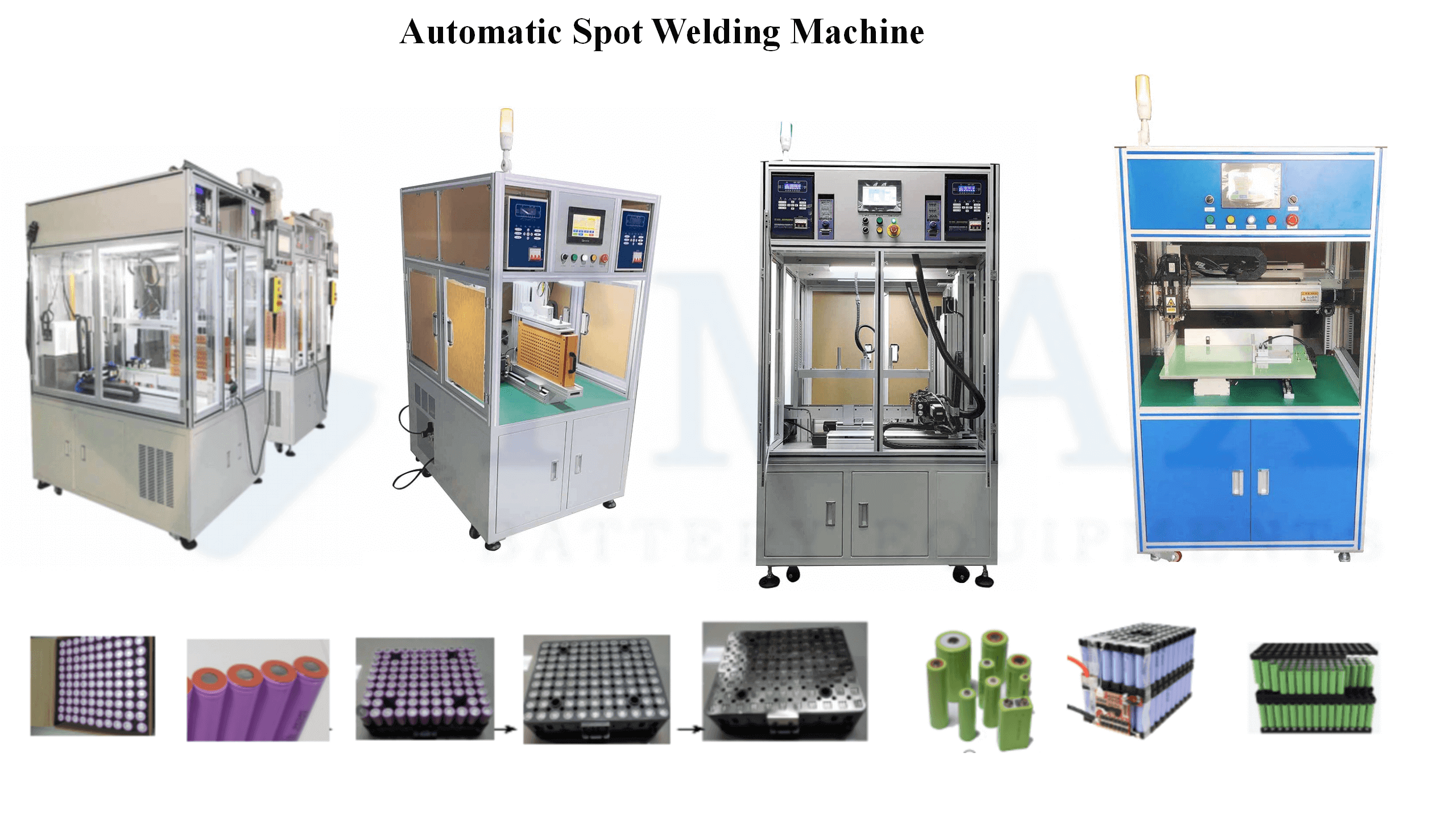

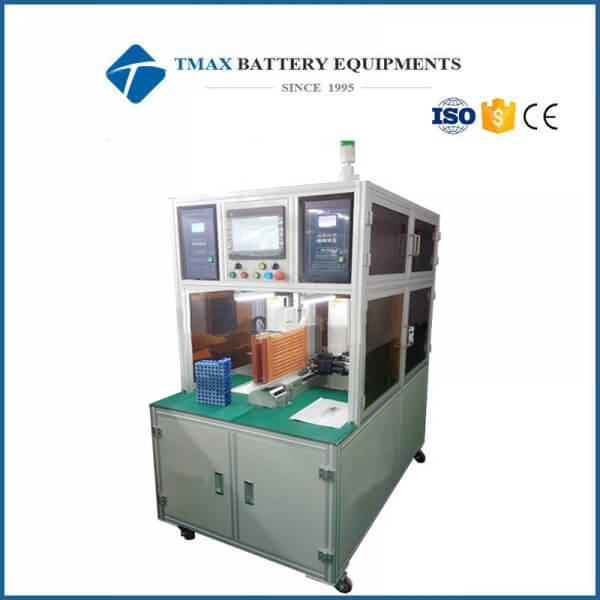

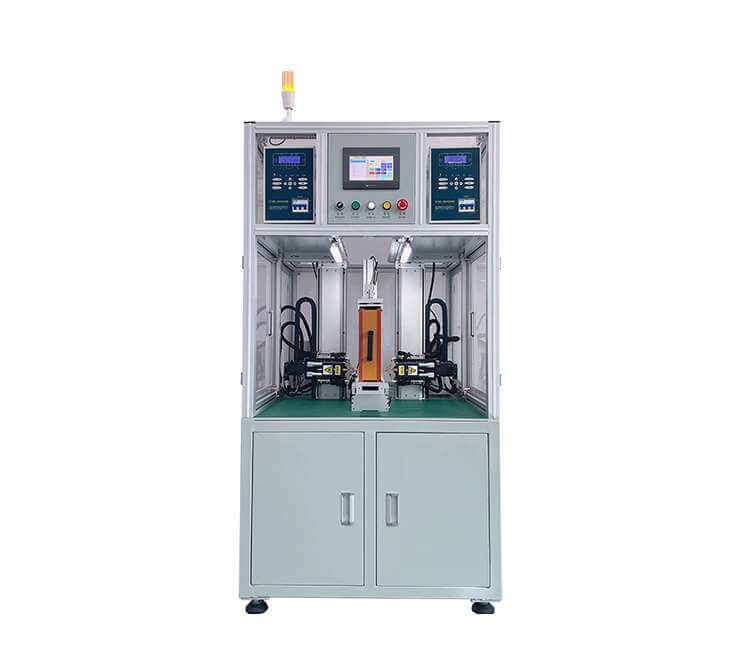

EV Battery Pack Module Automatic CNC Double Sides Spot Welding Machine for EV Battery Assembly Line
This

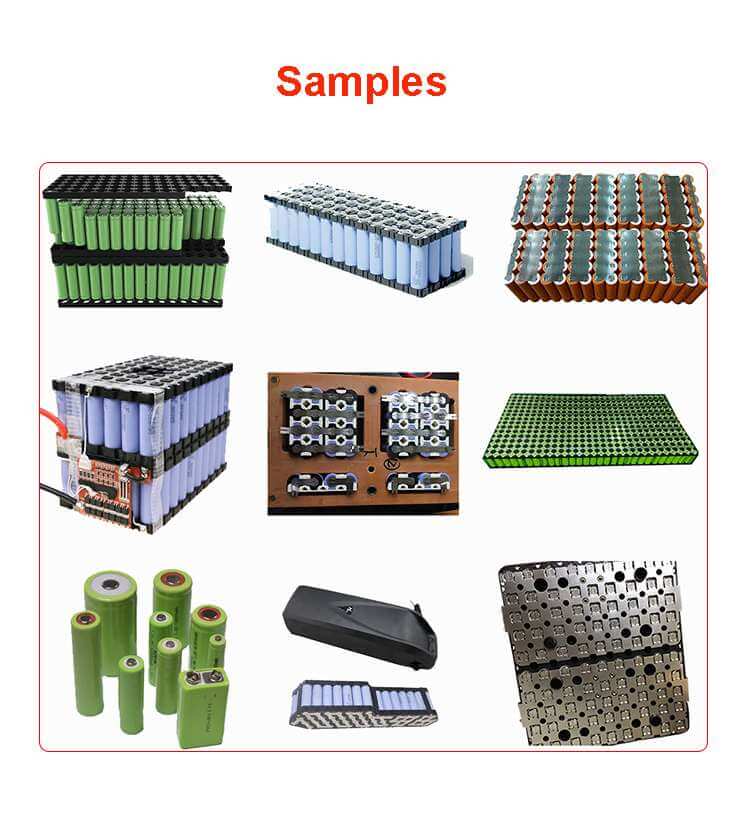

machine is used for 18650 battery pack automatic spot welding, it can weld both
side together with high speed and good effect.

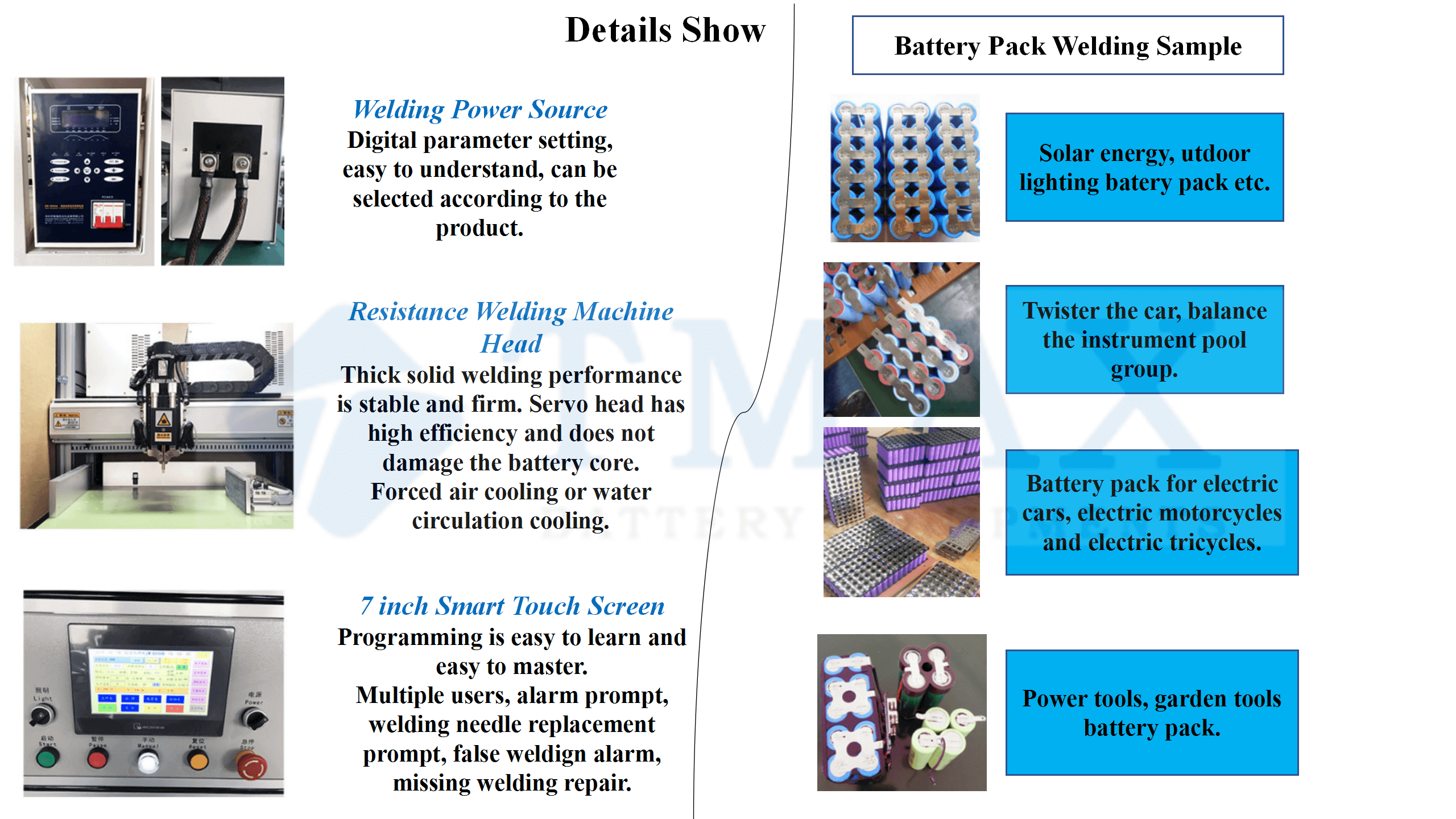

Features :
1. Support
breakpoint start, support automatic start and manual start mode conversion.
2. It
has a false spot welding and out of spot welding alarm function.
3. Programming
is simple, and it supports any point programming and array
programming. 999 groups can be saved programming files.
4. Welding
needle replacement forecast reminder.
5. Own
welding current monitoring system, real-time monitoring of welding current.
Specification:
Model |
TMAX-DH-20000 |
Y-axis travel |
500mm |
Z-axis travel |
400mm |

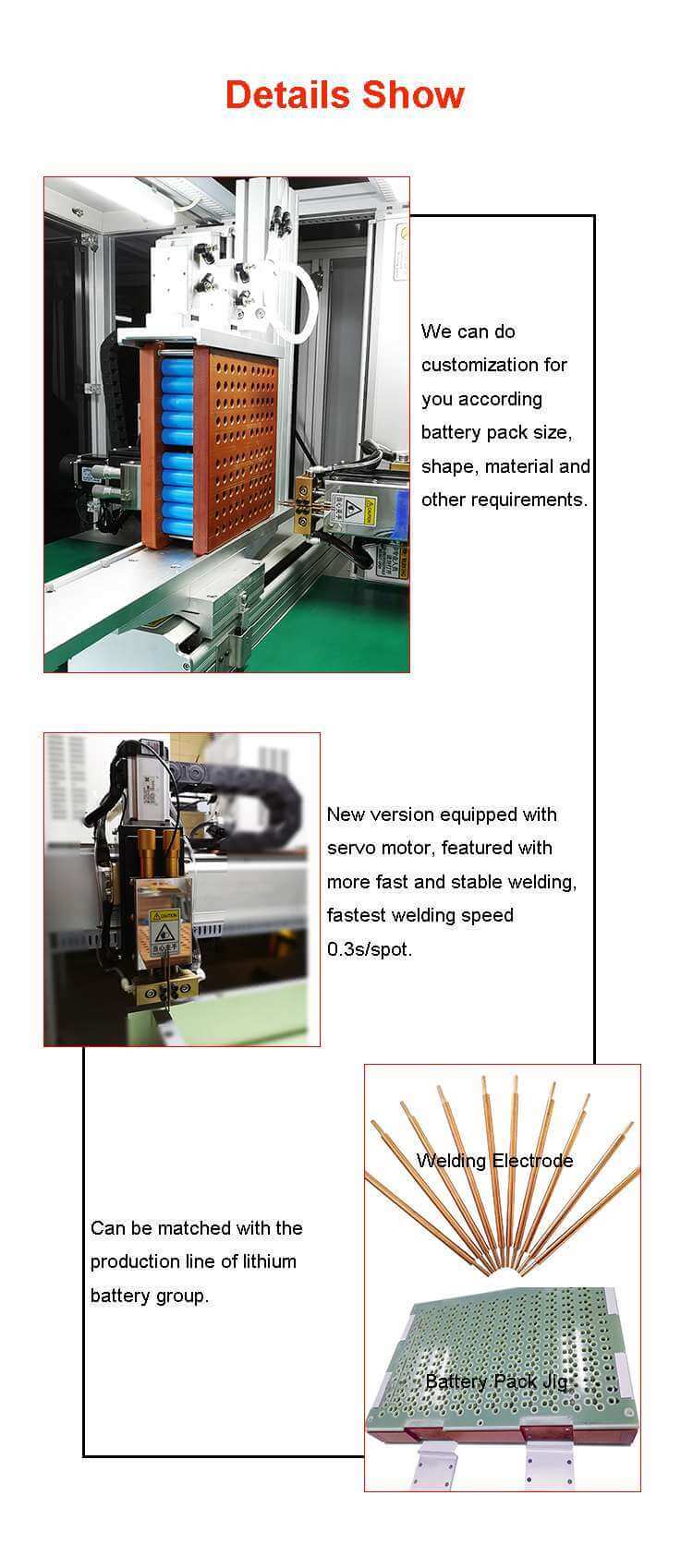

Spot welding speed |
0.3s / point; 5000pcs / h |
Maximum speed of motor drive |
1000mm/s |
The maximum number of batteries loaded |
300pcs (standard 18650 lithium battery) |
Number of groups for storing files |
999 groups |
Operating system |
Embedded system + man-machine screen |
Transmission |
Stepper + imported precision linear guide (optional servo + screw) |
Power supply |
Single-phase 220V ± 10% / 50Hz ± 10% |
Air supply |
0.3 ~ 0.4Mpa |
Weight |
400KG |
Dimensions |
900mm*1100mm*1800mm |
