Hydraulic Press Machine

Electrode Hydraulic Laboratory Press Machine

  • Model Number:

    TMAX-YP180
  • Type:

    Laboratory Press
  • Dimension(L*W*H):

    230mm X 200mm X 330mm
  • Net Weight:

    30kg
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

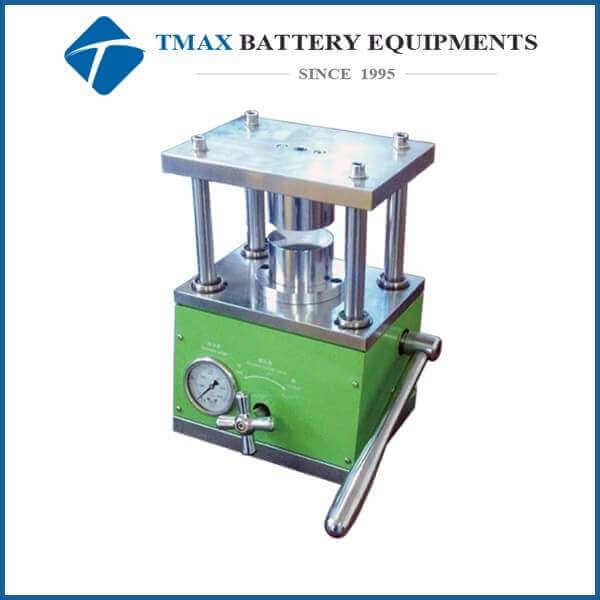

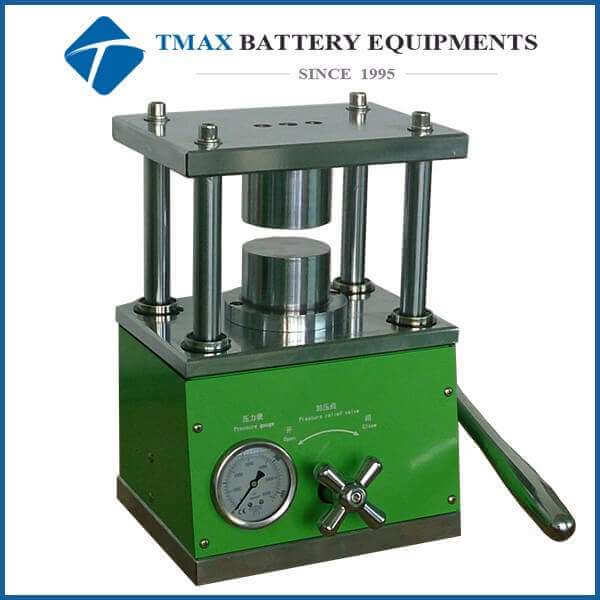

Electrode Hydraulic Laboratory Press Machine


TMAX-YP180 is a CE Certified desktop dry pressing machine up to 8 metric tons for materials / chemistry research laboratories to prepare the compound ceramic sample. It has built in hydraulic pump with auto return function.Discover the best electrode press here.


SPECIFICATIONS:

Max. Pressure

8 metric tons Max.
Pressure gauge is built in

Gauge Pressure Value to Force Conversion

  • Notes:
  • Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.6 Ton
  • The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
  • For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10

    • P: Pressure (MPa) applied on your working piece
    • T: Force (Ton) applied on the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Pump

Build-in Hydraulic Pump

Warranty

Two year limited manufacturer warranty with lifetime support.

Bottom Hydraulic Cylinder Travel Distance

Standard 30mm, opitional other distance

Dimensions of Machine

230mm X 200mm X 330mm

Compliance

CE Certified

Net Weight

30 kg

Press Dies

Pressing dies with various diameters are available upon request
