Heat Rolling Press

Electric Precision 4" Width Heat Rolling Press with Dual Micrometer

  • Model Number:

    TMAX-HRP-MR100A
  • Input Power:

    120W
  • Net Weight:

    45
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Electric Precision 4" Width Rolling Press with Dual Micrometer


Heat press machine

1.Electric rolling press calendar machine for lab R&D
2.Easy to operate

3.Roll Width:0-100mm width

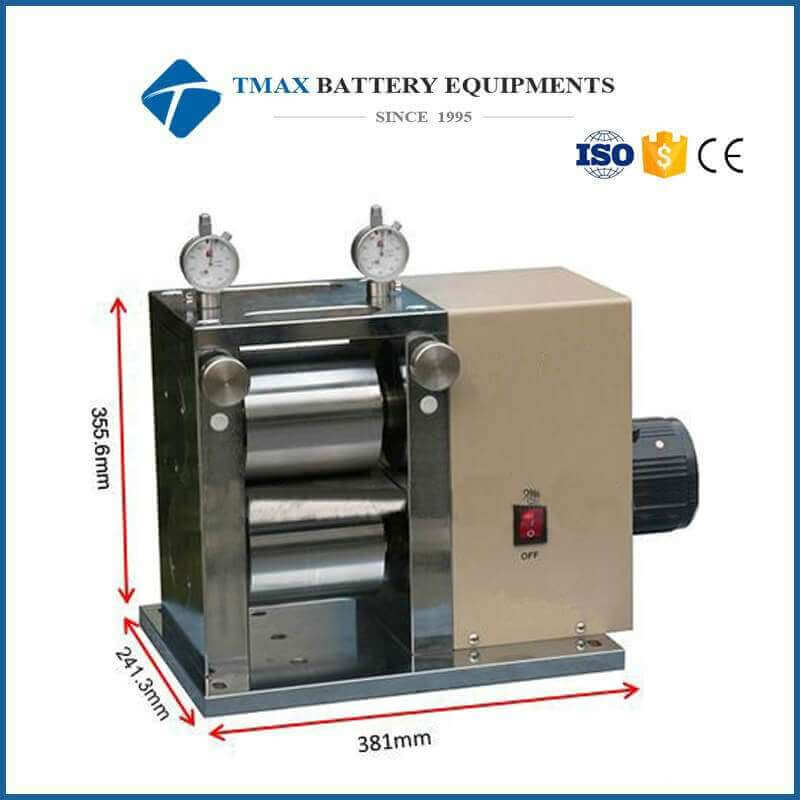

TMAX-HRP-MR100A Electric Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying. Also,this Electric Rolling  press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.


ITEM

Unit

Data

Size(L*W*H)

mm

385*245*355 mm (L*W*H)

Weight

kg

45

Roll Width

mm

0-100

rolling width

mm

150

Calendering thickness

mm

0~2

Roller Diameter

mm

2-96mm (Dia)

Dial Gauge Accuracy

mm

0.01

Rolling Speed

mm/s

0~10

Roller surface



> 0.8

Total Power



120W





Rolling Press

Rolling Press Machine

Rolling Press Machine

Rolling Press Machine

Rolling Press Machine

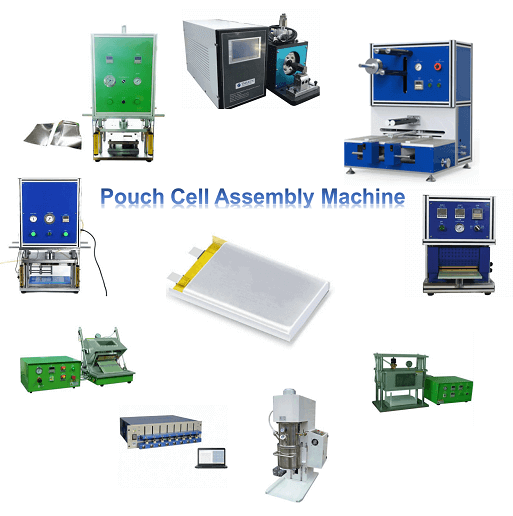

Pouch Cell Equipment
