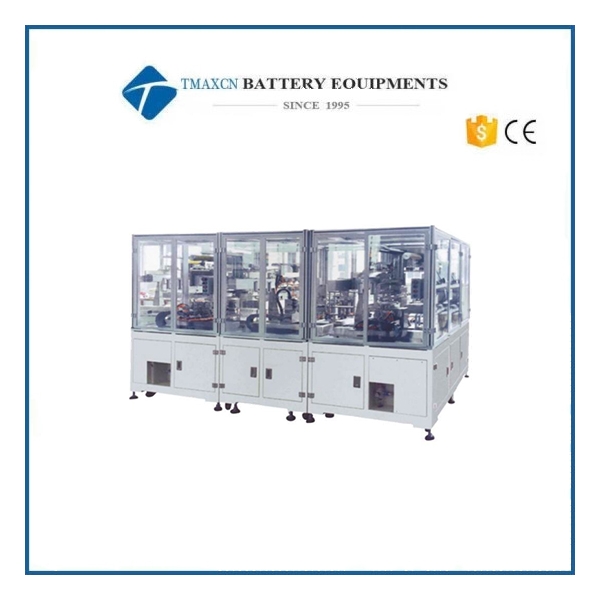

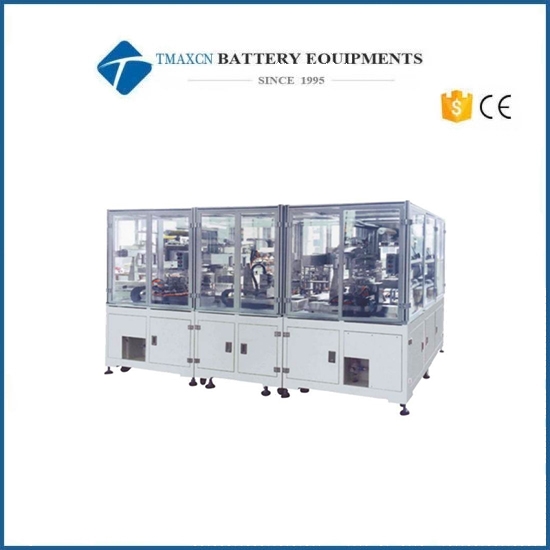

Dual-Station Fully Automatic Lithium-ion Battery Stacking Machine
Model Number:
TMAX-ZTH-04Compliance:
CE CertifiedWarranty:
1 yearMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Li-ion Battery Cutting And Stacking All-in-One MachineNext:
High-Speed Rotary Die Cutting Machine with Continuous Coating

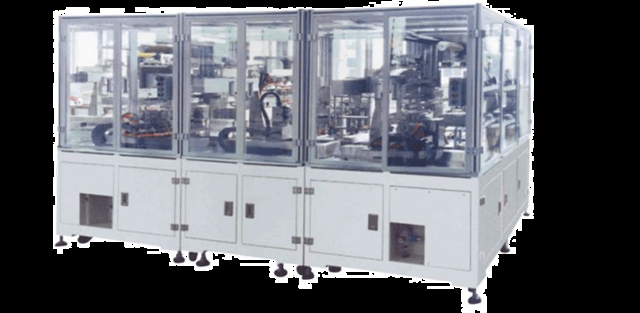

Dual-Station Fully Automatic Lithium-ion Battery Stacking Machine
Feature
1.High precision: By accurately positioning the electrode plates, the overall position accuracy of the electrode plates during lamination is ensured to be ± 0.3mm
2.Diaphragm accuracy: active unwinding, floating wheel tensioning of the diaphragm, overall module correction, electrostatic removal of the diaphragm, and diaphragm alignment accuracy of ± 0.2mm,
3.Dust control: material box and secondary positioning are equipped with effective dust suction mechanism; The suction cup and rod are made of non-metallic materials; Positive and negative electrode material boxes, secondary positioning, and 4.intermediate isolation treatment to prevent cross contamination of positive and negative electrode materials.
5.Multiple sheet leakage measures: material box swing, sheet separation brush, robotic arm servo shaking plate separation pole plate, ultrasonic sensor detection of multiple sheet leakage.
6.Corner detection of electrode lug: four Corner detection detection and lug detection of electrode lug to prevent the electrode lug from missing angle or folded angle from overlapping into the electric core.
Specification
Locate mode |
Mechanical positioning or CCD positioning |
Stacking efficiency |
Single station 1.0-1.2 (complete machine 0.5-0.6) s/pcs |
Auxiliary time |
<10s |
Alignment accuracy between electrode and diaphragm |
Center deviation ± 0.3mm |
Diaphragm end face alignment accuracy |
±0.3mm |
Adjacent pole alignment accuracy |
±0.2mm |
Overall alignment accuracy of polar plates |
±0.3mm |
Number of laminations |
Can be set within the thickness adaptation range |
Outer diaphragm |
Tail roll/no tail roll |
Pass rate |
≥99.5% |
Utilization rate |
≥98% |
Overall dimensions |
W4000mm x L2000mmx H2350mm |
Weight/bearing capacity |
About 5000Kg ; >650Kg/M2 |
Power |
AC220V single-phase; 10% voltage wave induced soil disturbance; Power: 8KW; Frequency: 50Hz |
Compressed air |
0.5~0.7Mpa (5~7kgf/cm2 ), dosage 400L/min |
Thickness |
5~20mm |
|
Width |
80~200mm |
|
Length |
120~300mm |
|
Pole length |
10~30mm |
|
Polar direction |
On the same/opposite side |
Production Assembly Plant

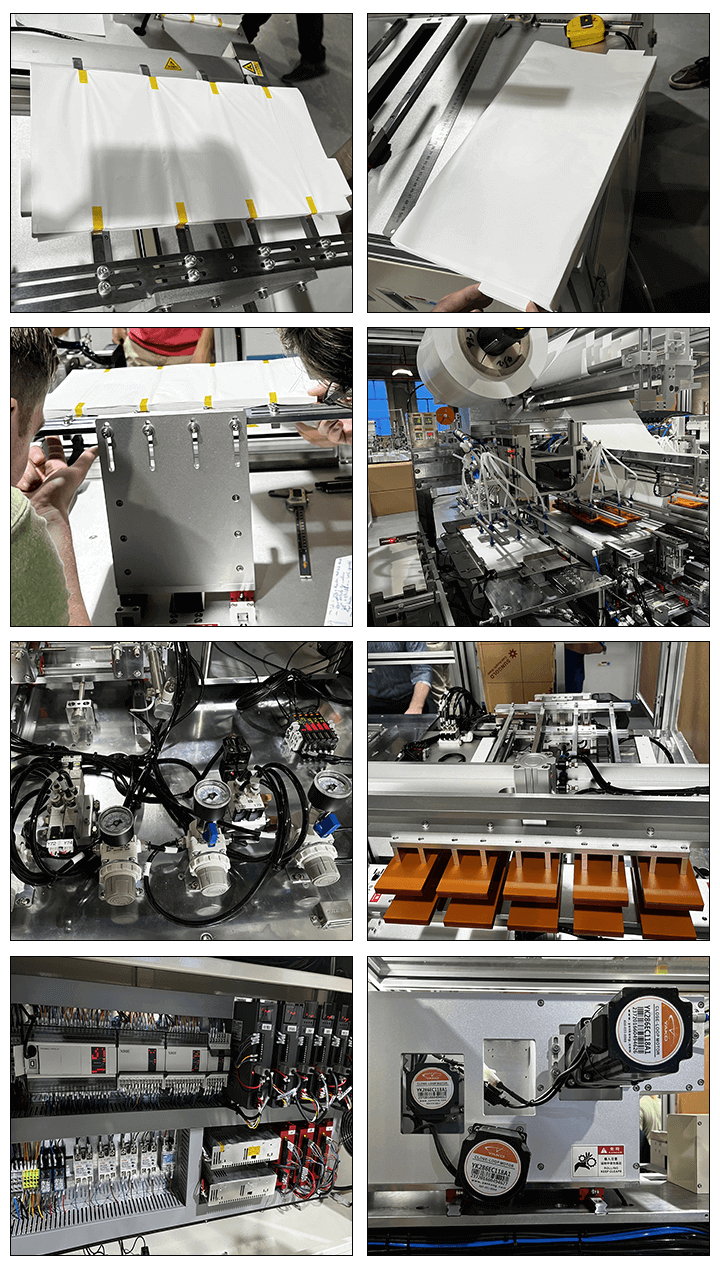

Detailed Images
