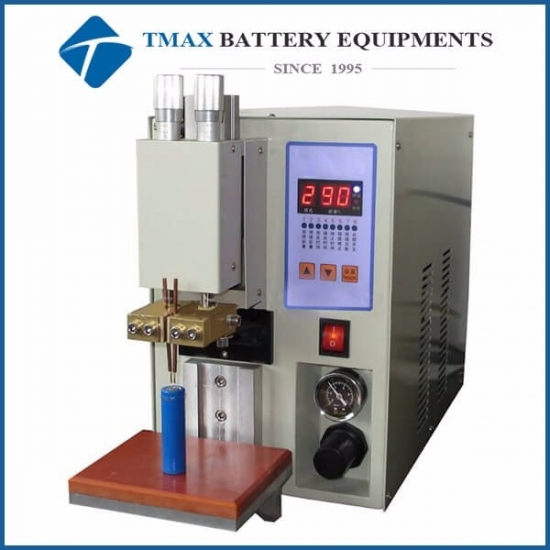

Double Point Pneumatic Spot Welding Machine
Model Number:
TMAX-ARP30Input Power:
10KWDimension(L*W*H):
800x600x130mmCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Double Point Pneumatic Spot Welding Machine
Double Point Pneumatic Spot Welding Machine
SPECIFICATIONS:
Power Supply |
220-240V, Single Phase 50/60Hz |
Max. Power |
10KW |
Air Pressure Range |
0.1 - 0.7 Mpa ( air compressor is
required) |
Welding Current |
2500A |
Welding Thickness |
0.03 - 0.25mm |
Operation Temperature |
-20 - 40℃ |
Controller |
Controlled by microcontroller,achieve
monopulse, dipulse, multiple-pulse welding |
Pressure |
The pressure applied on the welding
needle can be adjusted independently and easy to operate |
Design |
1. Unique
Photoelectric switch design 2. Good appearance,
small size and light weight 3. Welding
spot looks beautiful,free spark, stable welding current |
Product Dimensions |
L800×W600×H130mm |
Net Weight |
30kg |
Compliance |
CE Certificate |
Warranty |
One Year limited warranty with
lifetime support |
