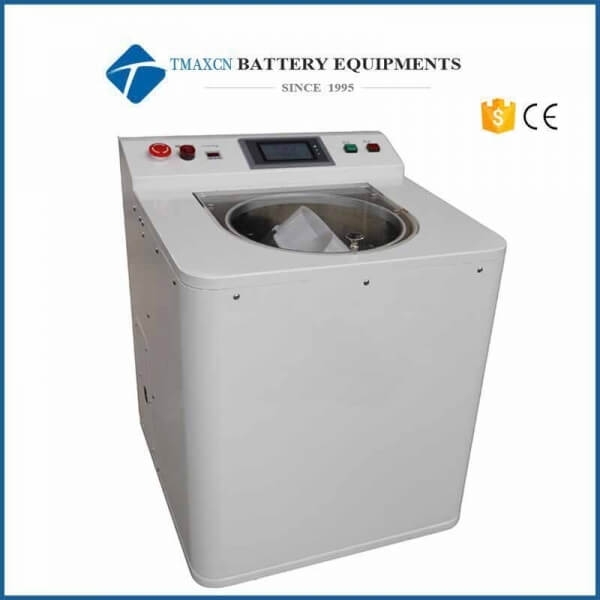

Model: ITT-1500SS

Application: Suitable for dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.).

Standard container:

1500ML(HDPEφ130×146) cone bottom mixing cup

900ML(HDPEφ104×124) cone bottom mixing cup

300ml (HDPE φ78*90) cone bottom mixing cup

Maximum capacity: 100g~2500g*2; ≤1000mL*2;

Revolution: 100~2000rpm stepless speed regulation, arbitrary input according to the actual needs of users, adjust the accuracy of 1rpm;

Rotation: 0~130%; Infinite setting, adjustment accuracy 1%

Set time: 0~3000S x 5(five steps in total), accuracy 1s;

Parameter storage capacity: 5 groups;

Vacuum degree: -100KPa, accuracy 0.1KPa;

Vacuum source: built-in two-stage advanced vacuum pump 240L/ min (=4L/ SEC =14~16m2, / hour);

Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa)

Absolute limit pressure (total pressure 4*10-1Pa and 0.4Pa)

Vacuum setting: vacuum independent switch, with vacuum delay function, vacuum degree arbitrary adjustment;

Bearing: Japan NSK bearing;

Control system: man-machine dialogue, English interface, touch screen operation;

Balance adjustment: double cup configuration balance;

Transmission mode: gear drive;

Working principle: mass rotation without wing type centrifugal gravity mode;

Alarm device: operating cover is not covered detection;

Safety protection: the upper cover is locked during operation, and the upper cover stops working when it is opened;

Applicable temperature and humidity: 10~40 ℃; 20~80%RH (no foggy moisture);

Voltage: AC220V±5%; 1-Phase; 50~60Hz;

Power: Rated power 1100w including vacuum pump

Size: L600×W730×730mm;

Weight: 165Kg.

Equipment features: rotation and revolution movement up to nearly 400G centrifugal gravity, strong dispersion and defoaming; There is no spiral blade to achieve mixing and dispersion in the container; No need to clean, will not pollute the material; Does not damage the material (especially fibrous material) properties; Man-machine interaction, easy operation; Ultra-small, ultra-light, ultra-quiet optimized design.
