Dip Coater

Dip Coater (1-200 mm/min) with Drying Oven up to 100°C

  • Model Number:

    PTL-MMB01
  • Dimension(L*W*H):

    440mm(L) x 460mm(W) x 1040mm(H)
  • Net Weight:

    46 kg
  • Compliance:

    CE Certified
  • Warranty:

    Two Years limited warranty with lifetime support
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

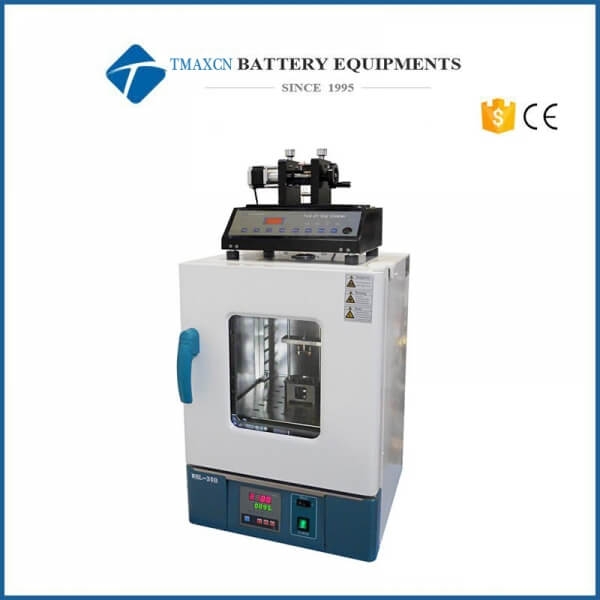

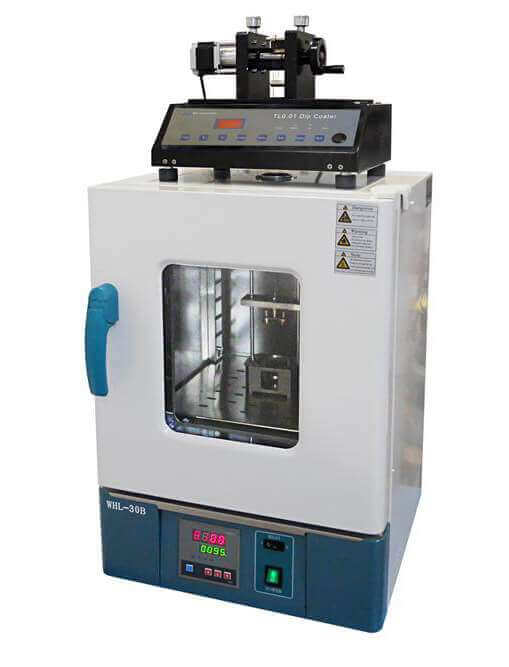

Dip Coater (1-200 mm/min) with Drying Oven up to 100°C


PTL-MMB01 is CE Certified Millimeter Grade Desktop Programmable Dip Coater (1 - 200mm/min). The system is controlled by SBC, which provides adjustable dipping speed, pulling speed, and travelling length. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.


Specifications:

Working Voltage

110/220V AC selectable

Travelling Distance

0-200 mm Adjustable

Dipping/Pulling Speed

1-200 mm/min Adjustable, controlled by digotal pannel.

Sample Holder

Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L) x 2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

1.Working Voltage: 110/220V AC selectable in Personalization
2.Max. Power Consumption: 600W
3.Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)
4.Inner Material: Stainless Steel
5.Digital temperature controller at range 50-200°C with +/- 1°C accuracy.

Product Dimensions

 440mm(L) x 460mm(W) x 1040mm(H)

Compliance

CE Certified

Warranty

Two years limited with lifetime support

Application Notes

1.For pulling multi sample, please consider  6-Position Programmable Desktop Dip Coater
2.In order to get better film coating, the substrate shall be treated by plasma cleaner
3.Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating

Shipping Weight

46 kg (100 lbs)
