Die Cutting Machine Electrode Sheet Coil Slitting Machine with Continuous Coating
Model Number:
TMAX-ZTH-02Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime supportDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory Battery 8000M3/H NMP Solvent Recovery System For Prismatic Cell ProductionNext:
Automatic Dual-Station Lithium Battery Stacking Machine for Pouch Cell Production

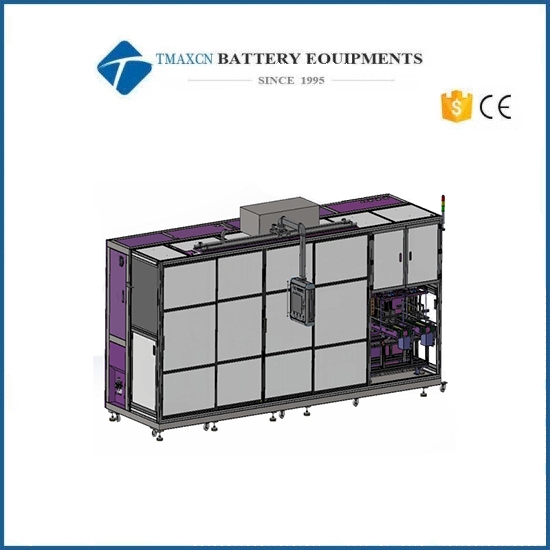

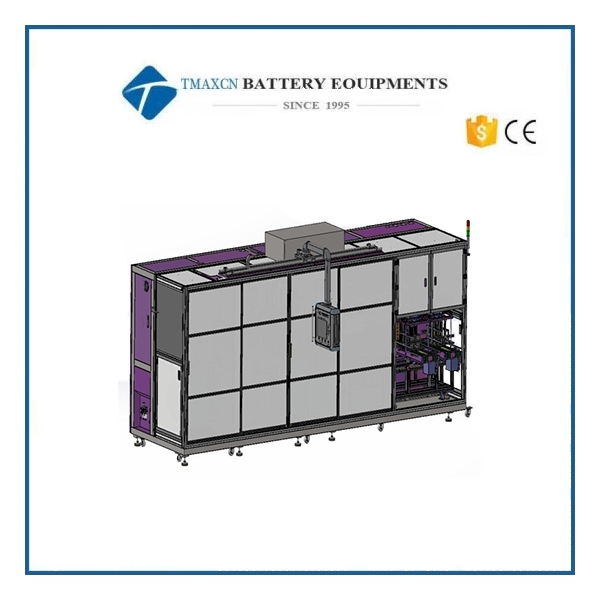

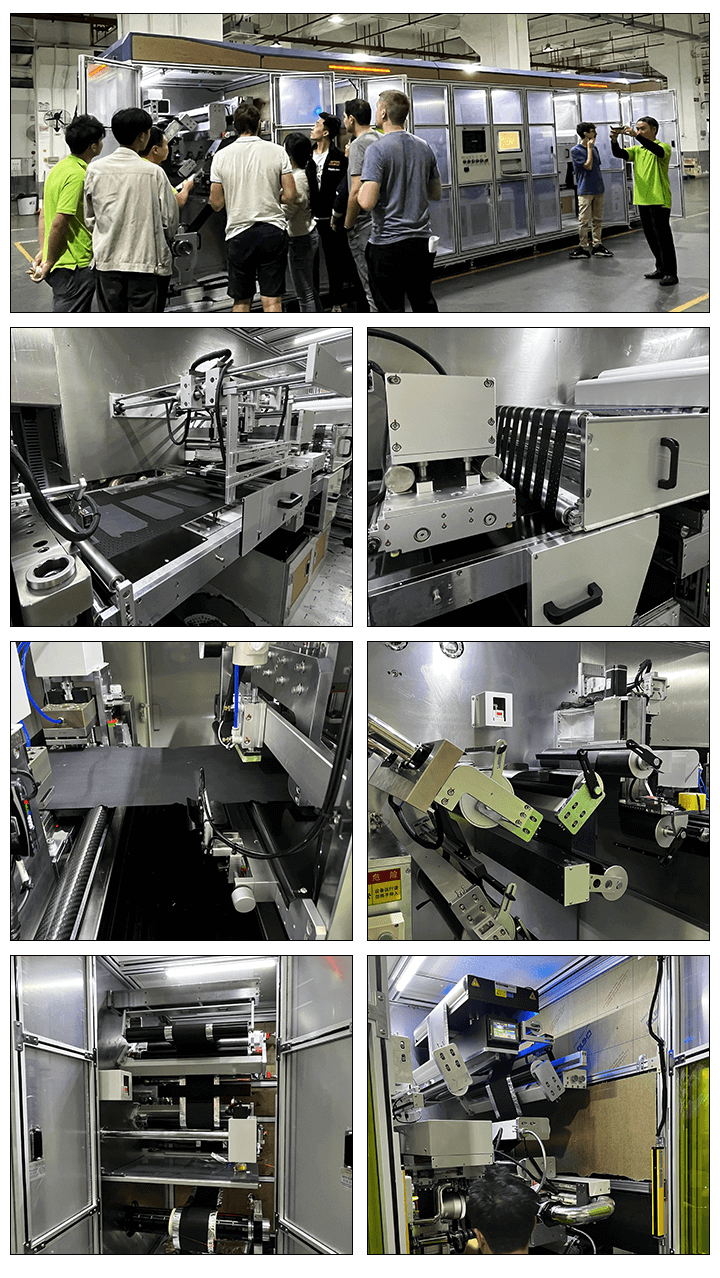

Die Cutting Machine Electrode Sheet Coil Slitting Machine with Continuous Coating
Features
1.Dual Unwinding Mechanism with Quick Roll Change, One for Operation and One for Backup.2.Three Sets of Alignment Systems: Unwinding Alignment, In-Process Alignment, and Die Alignment, Ensuring Extreme Precision in Product Formation.
3.Tungsten Steel Blade Coordinate Grinder for Precise Machining, Hexagonal Pillar Guide from Japan for Extended Tooling Lifespan.
4.Dual-Sided Margin Detection, Servo Motor Automatically Adjusts Feed Length, Eliminating Coating Misalignment Error and Ensuring Precise Dimension of Product Tabs.
5.High-Speed Bidirectional Material Receiving with Dual-Motion Mechanical Arms.
6.Non-Contact Dust and Iron Removal, Eliminating Dust on Both Sides of Product Sheets.
7.Top-mounted FFU Fan for Air Supply, Industrial Dust Extraction System with Negative Pressure at Multiple Workstations such as Die Cutting and Material Receiving, Promoting Internal Air Circulation and Removing Airborne Particles.
Specification
Project |
Parameter |
Production efficiency |
>180PPM |
Burr size |
Vas12um ; Vbs12um |
Deviation correction accuracy |
≤±0.1mm |
Slice forming accuracy |
±0.2mm |
Mold Life |
1. After each mold repair, it can be used no less than 1.5 million times; 2. The number of times the mold can be repaired ≥ 10 times; |
Material box receiving accuracy |
±0.5mm |
Qualification rate |
≥ 99.8% (defects caused solely by the machine) |
Crop growth rate |
≥ 98% (faults caused solely by the machine) |
Overall dimensions |
W1750mm x L7000mm x H2350mm |
Weight/bearing capacity |
About 3000kg; >650Kg/M-2 |
Power |
AC380V three-phase; Voltage fluctuation ± 10%; Power: 30KW; Frequency: 50Hz |
Compressed air |
0.5-0.7Mpa (5-7kgf/cm2), dosage 400L/min |
Project |
Parameter |
|
Punching method |
Metal mold punching |
|
Material system |
Continuous coating of electrode sheet coil material after slitting, with one side outlet lug |
|
Roll diameter |
≤ 600mm |
|
Inner diameter of drum |
3"/6" |
|
Pole winding error |
士3mm |
|
Snake shaped bending error of polar plate |
±1mm/m |
|
Height difference of polar wave edge |
<2mm |
|
Pole width W |
60~200mm |
|
Pole length L |
80~300mm |
|
Pole ear length H |
10~30mm |
|
Pole ear edge distance Q |
5-20mm |
|
Pole ear width P |
10~50mm |
|
Pole ear belt material X |
0~2mm |
|
Round RB |
2~5mm |
|
Round corners RA |
Inner rounded corner |
Outer rounded corner |
