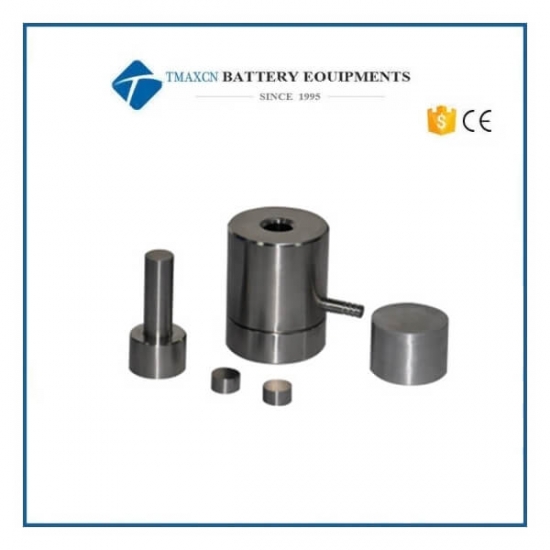

Cylindrical Cold Press Mould for Hydraulic Press

Model Number:
TMAX-MOD
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

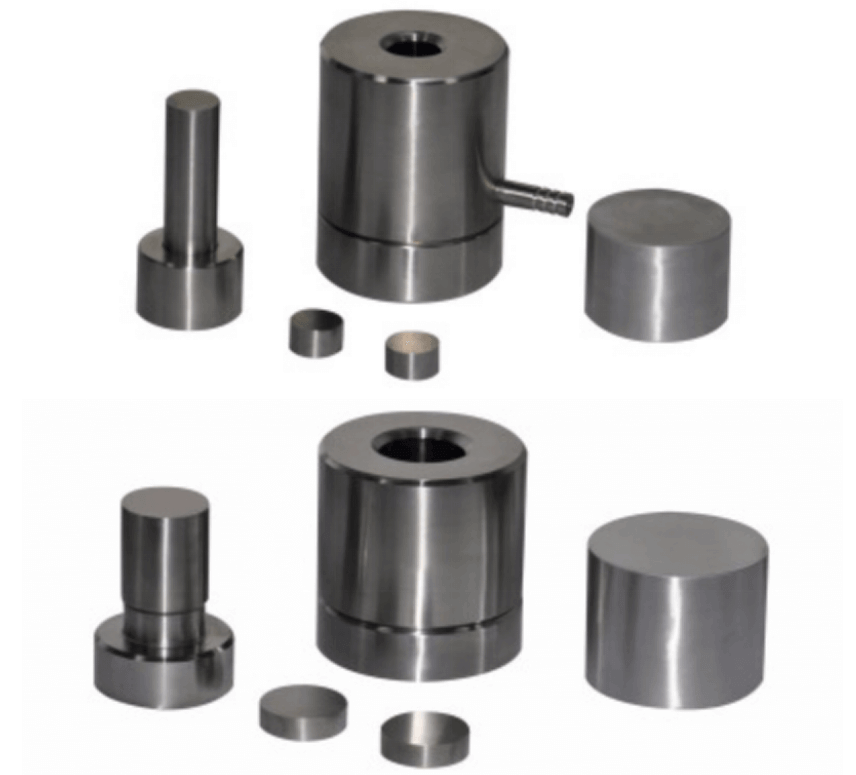

Cylindrical Cold Press Mould for Hydraulic Press

The cylindrical mold is a common tablet pressing mold in the laboratory powder sample pressure molding, which is suitable for the molding and testing of most powder samples in the laboratory. The mould is exquisite in workmanship, reasonable in design and convenient in operation. With the use of tablet press, powder sample materials can be pressed into shape, such as circular sheet, cylinder, etc. the sample size depends on the mold size ordered by users; the mold is widely used in battery, superconductor, cement, ceramics, catalysis, silicate, powder metallurgy, sea mud analysis, biochemical analysis and new material sample preparation research and development. In addition, the product can also be used with calcium iron, infrared, X-ray fluorescence and other testing instruments.

Specifications

Actual drawing of molding sample

Compressible sample shape	Circular sheet, cylinder, etc

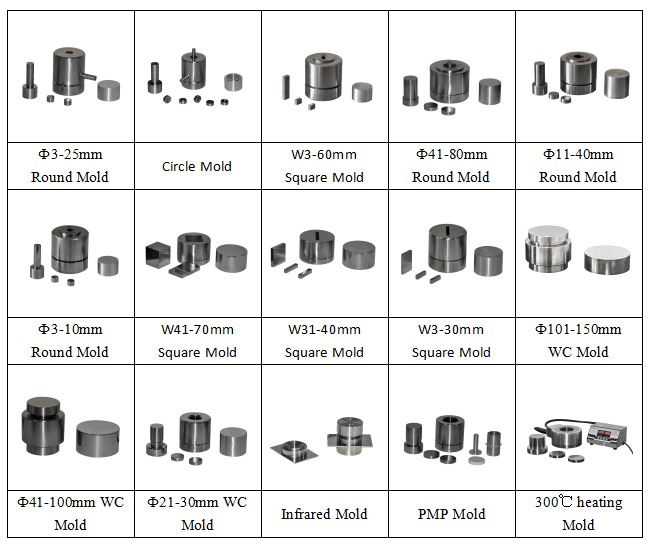

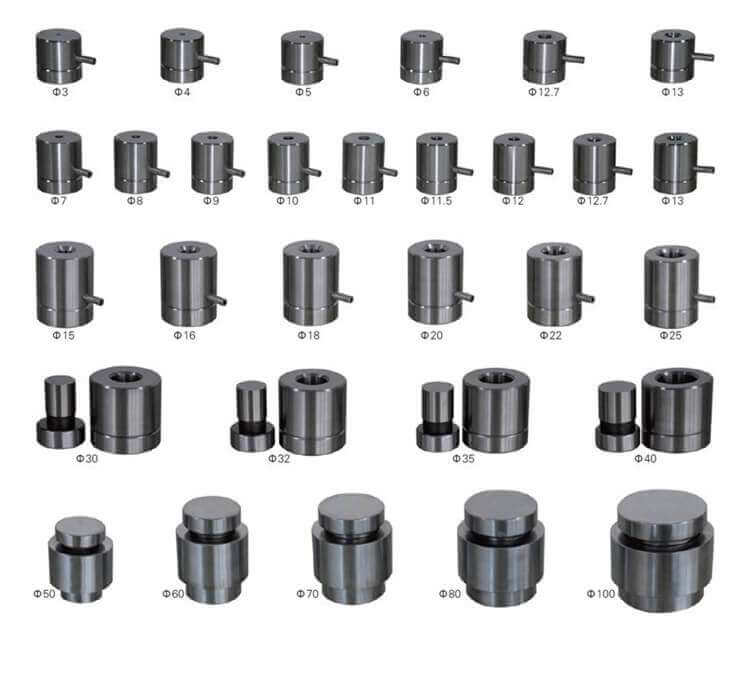

Common mold specifications	Φ3,Φ5,Φ6,Φ8,Φ10,Φ13,Φ15,Φ18,Φ20,Φ22,Φ25,Φ30,Φ32,Φ40mm
Mold material	High-speed steel ASSAB+17		Alloy tool steel:Cr12MoV
Hardness of die indenter	HRC68-HRC70		HRC60-HRC62
Sample size (≤)	φ6mm	φ13mm	φ25mm	φ40mm	φ50mm	φ60mm	φ70mm	φ80mm
Mold cavity depth	20mm	30mm	40mm	45mm	55mm	60mm	65mm	65mm
Mould dimensions	φ43×78mm		φ53×120mm		φ88×150mm		φ108×180mm
	φ43×93mm		φ73×133mm		φ98×180mm		φ118×150mm
Mould weight	0.55kg	0.67kg	1.34kg	2.9kg	5.1kg	7.3kg	9kg	11.5kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

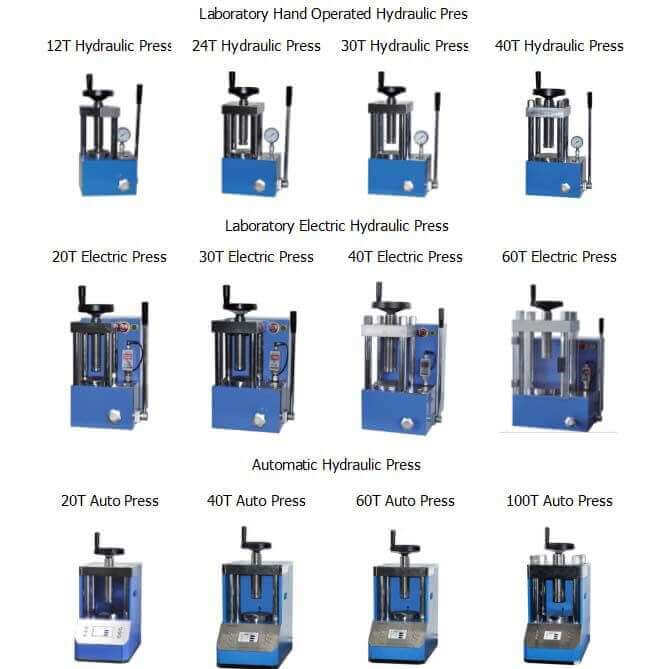

Other Related Hydraulic Press
