Cylindrical 1P 2P 3P Battery Bracket Li-ion Cell Holder Plastic 18650 Battery Holder
Model Number:
TMAX-Cell-HolderWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

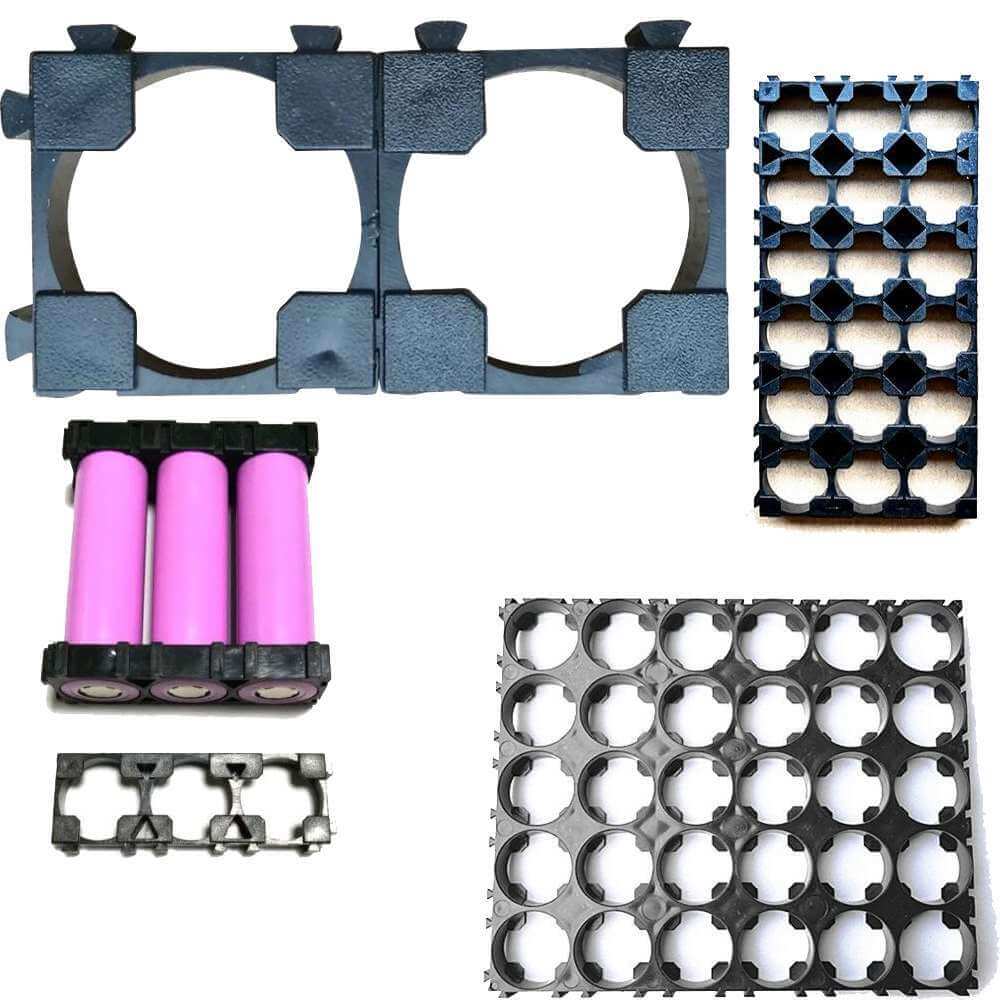

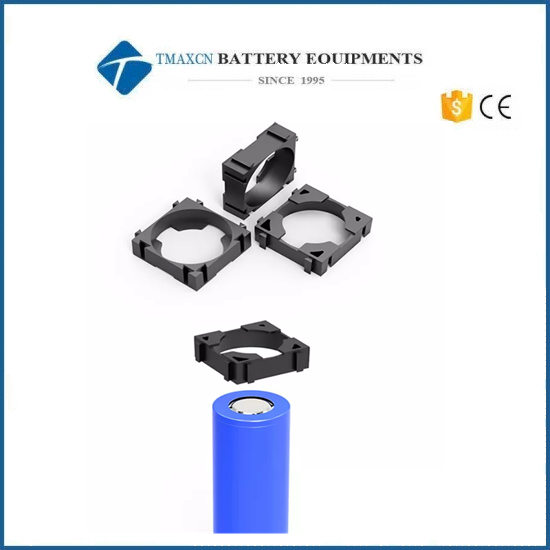

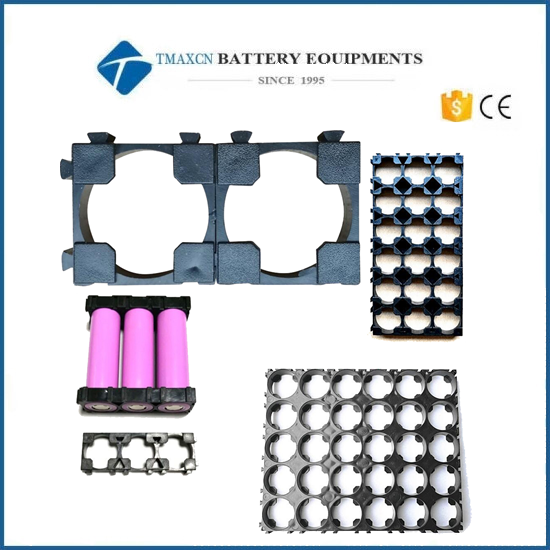

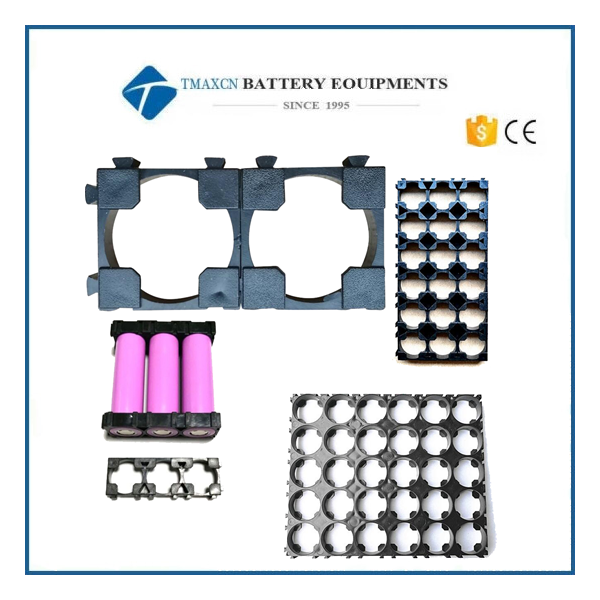

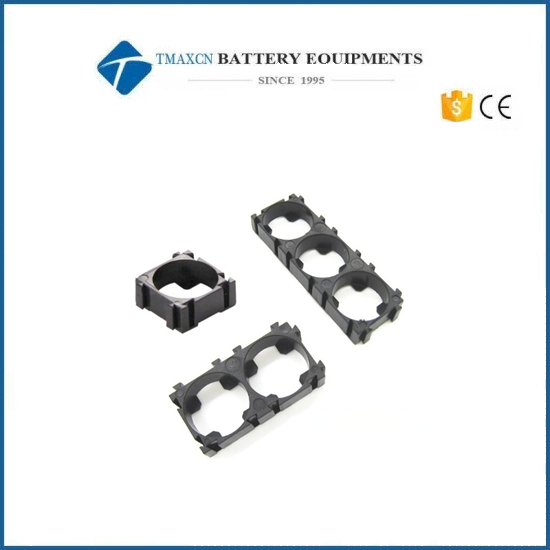

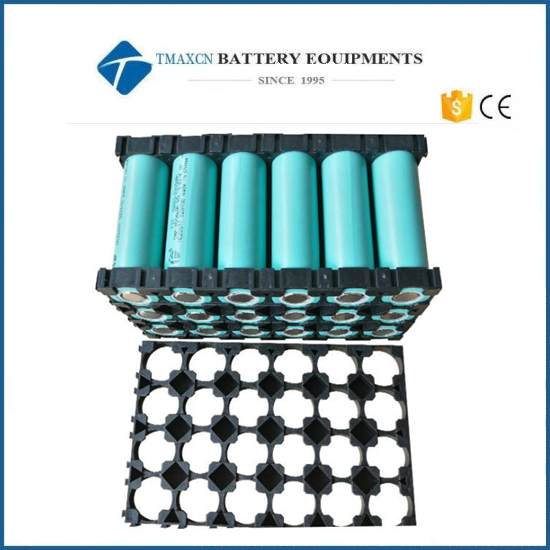

Cylindrical 1P 2P 3P Battery Bracket Li-ion Cell Holder Plastic 18650 Battery Holder
Features:
· Very flexible, it is easy to assemble any type battery packs
· Very simple to operation
· Strong flame retardant, its level reaches 94V
· High quality, it can be reversed 720 degree and not break
· It has passed RoSH
Specification:
Product Name |
Cylindrical Battery Holder |
Material |
ABS+PC |
Color |
Black |
Characters |
Anti-fire, High temperature resistance, Crack resistance |
Application |
Battery packs |

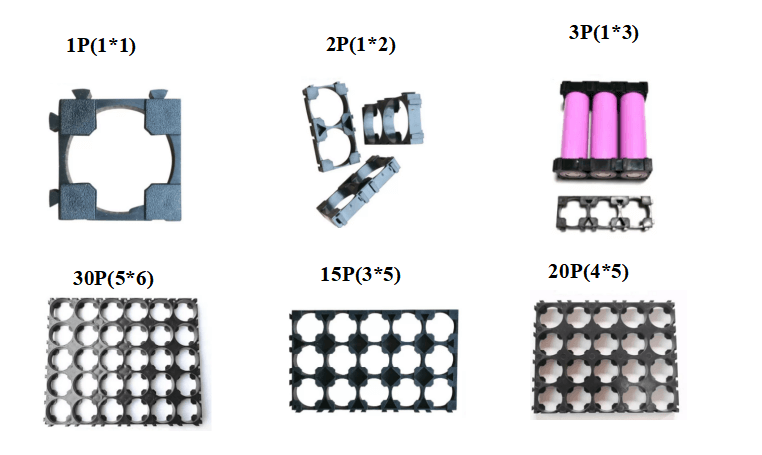

Types |
1P,2P,3P,4P,5P,6P,6P,10P,15P,18P,20P etc |
(Note: these brackets can be combined into any shape and pack you need ! )

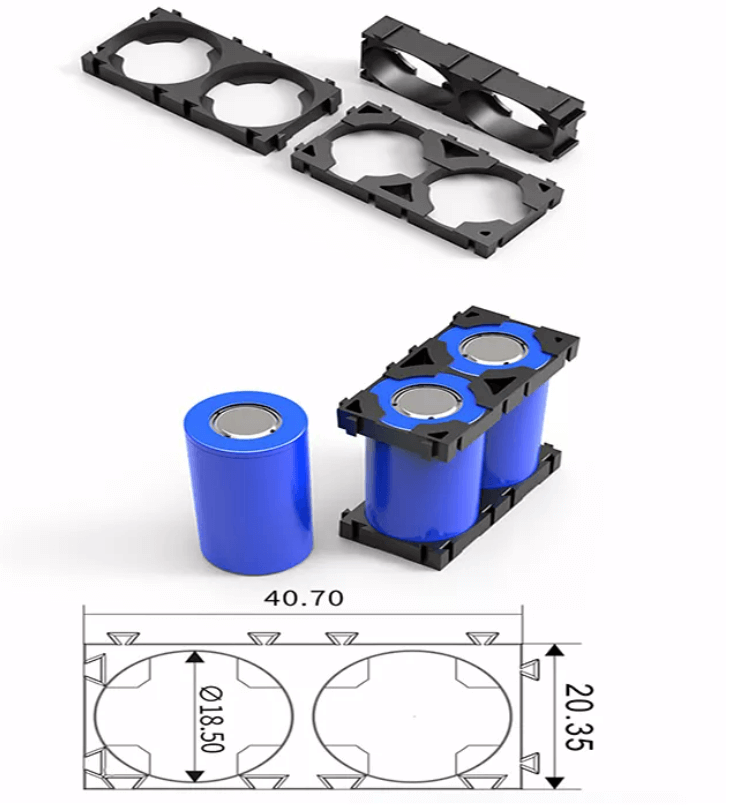

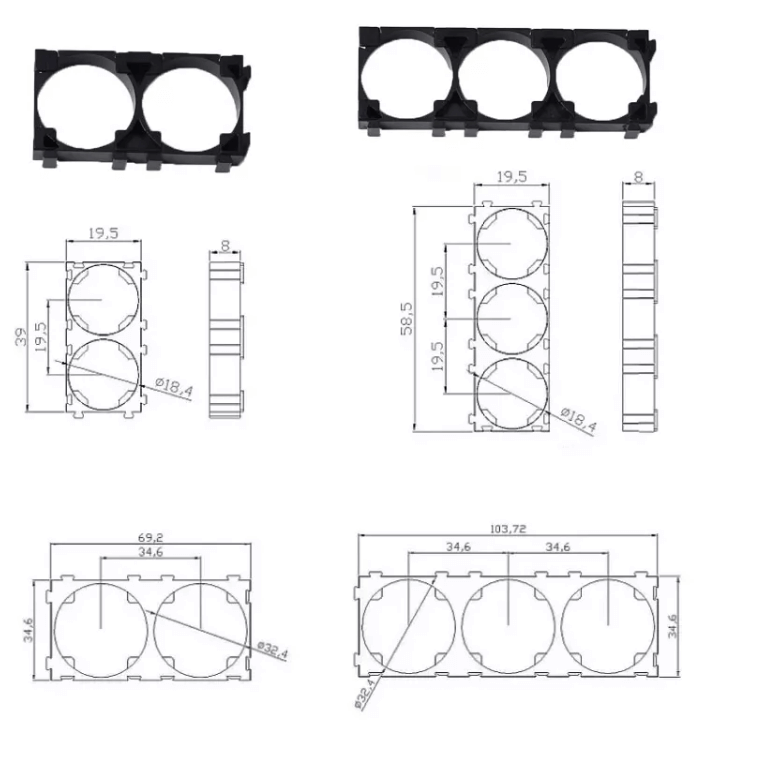

18650 Cell Holder
Shape |
Model |
Dimension (mm) |
Diameter (mm) |
Distance of two centers (mm) |
|
Square type |
Can be connected together to your need |
1P |
21.7x21.7x9 |
18.3/18.5 |
20.25 |
|
|
2P(1x2) |
42x20.25x9 |
18.3/18.5 |
20.25 |
|
|
3P(1x3) |
62x20.25x9 |
18.3/18.5 |
20.25 |
|
|
15P(3s5p or 5s3p) |
101.25x60.75x9 |
18.3/18.5 |
20.25 |
|
|
18P(3s6p or 6s3p) |
121.5x60.75x9 |
18.3/18.5 |
20.25 |
|
|
20P(4s5p or 5s4p) |
101.25x81x9 |
18.3/18.5 |
20.25 |
|
|
24P(4s6p or 6s4p) |
121 5x81x9 |
18.3/18.5 |
20.25 |
|
|
30P(5s6p or 6s5p) |
121.5x101.25x9 |
18.3/18.5 |
20.25 |
|
|
2P(1x2) |
40.5x20.7x9 |
18.3/18.5 |
19.5 |
|
|
3P(1x3) |
60x20.7x9 |
18.3/18.5 |
19.5 |
|
Can not be connected together |
2x(1 to 15) |
|
18.3/18.5 |
19 |
|
|
3x(1 to 15) |
|
18.3/18.5 |
19 |
|
|
4x(1 to 15) |
|
18.3/18.5 |
19 |
|
|
5x(1 to 15) |
|
18.3/18.5 |
19 |
|
|
6x(1 to 15) |
|
18.3/18.5 |
19 |
|
|
7x(1 to 15) |
|
18.3/18.5 |
19 |
Diamond type |
4P(1x4) |
|
18.5 |
18.5 |
|
|
5P(1x5) |
|
18.5 |
18.5 |
|
|
6P(1x6) |
|
18.5 |
18.5 |
|
|
10P(1x10) |
|
18.5 |
18.5 |
|
|
20P(2x10) |
180.34x64.6x16.5 |
18.5 |
18.5 |
|
26650 Cell Holder
Model |
Dimension (mm) |
Diameter (mm) |
Distance of two holes center (mm) |
2P |
55.2x27.6x9 |
26.2 |
27.6 |
3P |
82.8x27.6x9 |
26.2 |
27.6 |
10P(2x5) |
138x55.2x9 |
26.2 |
27.6 |
32650 Cell Holder
Model |
Dimension (mm) |
Diameter (mm) |
Distance of two holes center (mm) |
2P |
70.5x36x9 |
32.5 |
34.5 |
3P |
105x36x9 |
32.5 |
34.5 |

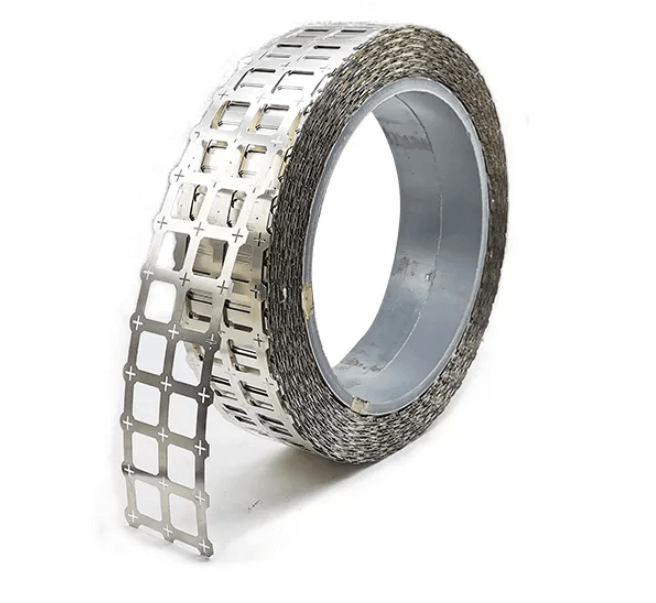

Related nickel strip for 18650 26650 32650 battery pack:
Related nickel strip for 18650 26650 32650 battery pack:

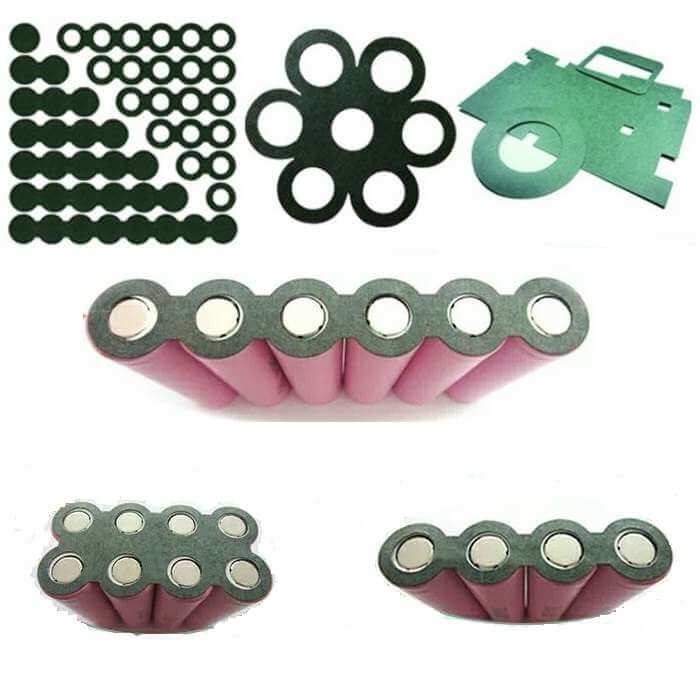

Related isolation paper:
