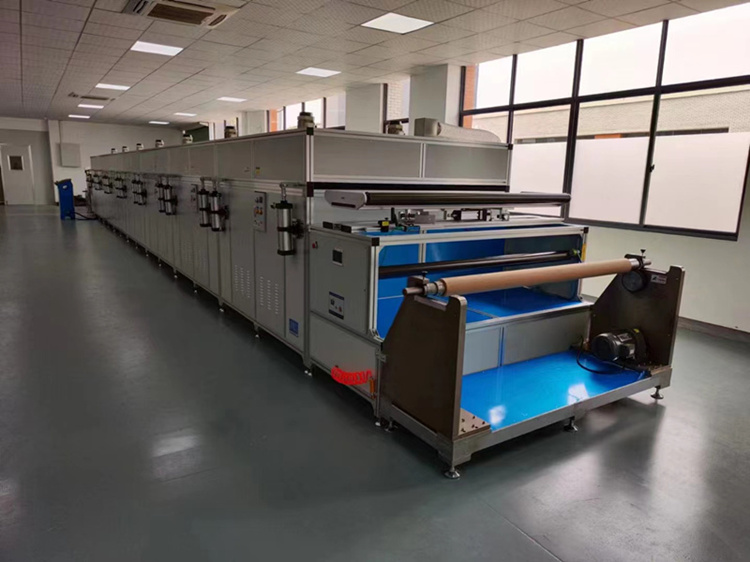

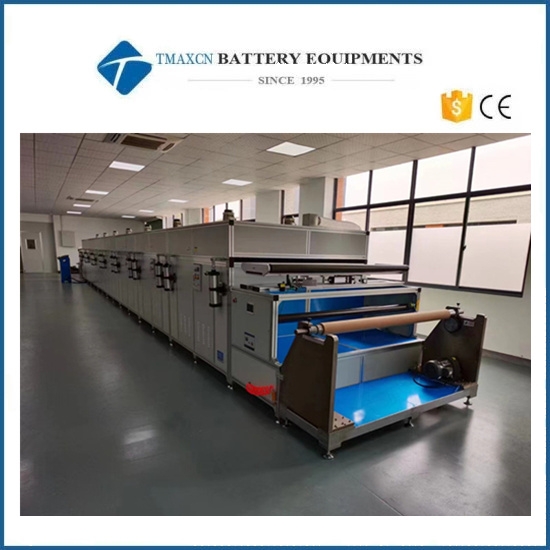

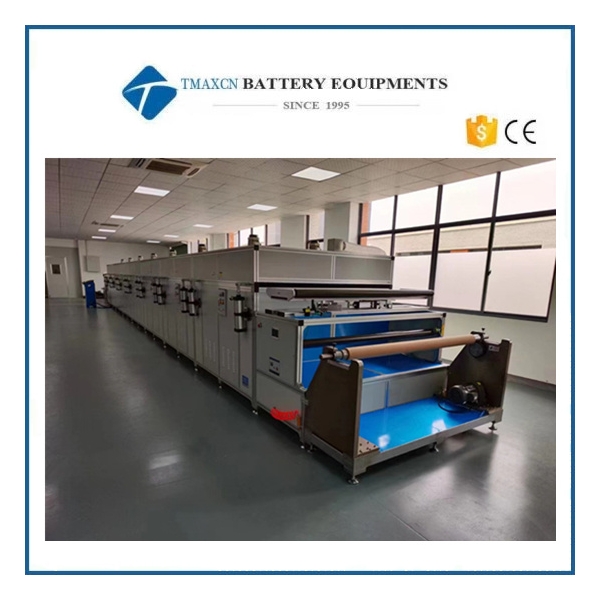

Customizable Immersion Double-Sided Dip Coating Machine Extrusion Coater

Control system

 independently developed

Coating width

 200mm-1500mm

Coating method

 double-sided dip coating

Coating thickness

 0.005-5MM (uniformity ± 3%)

Thickness adjustment

 digital micrometer

Heating channel

 drying channel 2-20 meters (1 meter per section) (customizable)

Heating control

 thermocouple sensor

Tension control

 Adjustable tension

Deviation correction device

 fully automatic deviation correction for feeding/receiving

Drying duct fan

 adjustable speed

Collecting and discharging diameter

 Collecting and discharging material diameter 300mm (customizable)

Rear lamination

 finished lamination (steel pipe+rubber hose)

Wind speed control

 with wind filtering at the outlet of the drying tunnel (uniform wind speed)

Coating speed

 1-20 meters/minute (adjustable according to the drying condition of the adhesive)

Drying passage roller

 304 stainless steel

Drying channel material

 304 stainless steel (box)

Heating method

 stainless steel heating tube

Oven temperature

 room temperature -160 degrees (can be kept at a constant temperature)

Drying track structure

 Tiled

Waste heat recovery

 with automatic waste heat collector

Glue supply method

 pressure bucket

Expansion axis

 3-inch gas expansion axis

Drying channel lifting

 cylinder lifting

Exhaust system

 centrifugal fan (external interface 100MM)

Equipment power supply

 380V Control AC24V

Equipment power

 12KW (peak)
