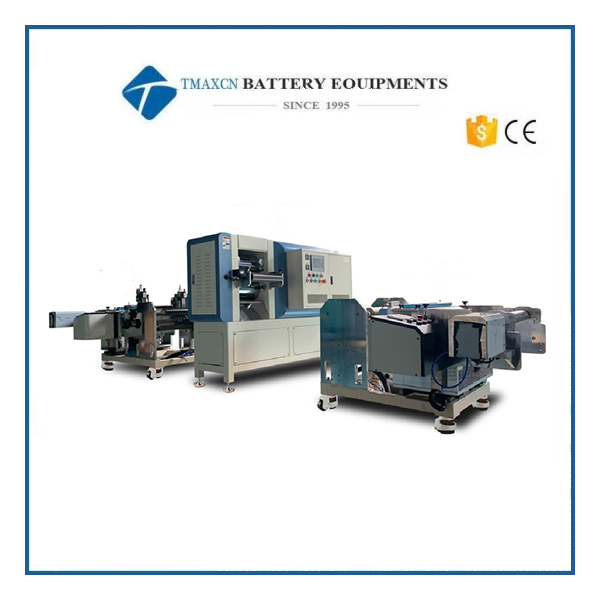

Continuous Hydraulic Rolling Press Machine w Winding and Unwinding System
Model Number:
TMAX-Dia-210*W330mmType:
AutomaticInput Power:
3.2KWNet Weight:
1TCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Steel Ball/Glue Nail Sealing MachineNext:
Laboratory Intermittent or Continuous Coating Machine for Battery Pilot Line
Roll To Roll Pressure Controlled Hydraulic Hot Roller Press Machine
The rolling press is the main equipment in the continuous rolling production line. It consists of cast steel gantry frame, rolls, frequency conversion motor reducer, gas-liquid booster system, gap adjustment system, electrical control system, feeding guard plate and roll surface cleaning mechanism.
The main function is to make the electrode reach a suitable density under the rolling of the roller, and meet the pole piece thickness requirement according to the coating thickness. This equipment adopts servo to adjust the roll gap, and the line speed is adjusted by the frequency converter to realize stepless speed regulation.
1. Equipment configuration and parameters:
Roll Specifications |
∮210X330mm(roller surface diameter×roller surface width) |
machine speed |
2~8r/min |
machine efficiency |
0.8~5M/min pole piece or foil type |
Coating uniformity |
±0.002mm (user guarantee) |
Thickness uniformity of electrode after rolling |
≤±0.002mm Under the premise that the user guarantees the coating uniformity, the layout of the pressing rollers is arranged horizontally up and down. |
machine appearance |
Computer gray, blue, with 2 dial indicators installed; safety guards painted in warning color |
The main function |
The pole piece reaches a certain thickness under the rolling of the roller. The special bearing for the bearing rolling mill |
lubricating |
3# lithium grease |
Effective rolling width |
300mm |
Material |
9Cr3Mo series high alloy cold rolled steel |
Surface hardness |
HRC66 and above |
Quenching layer depth |
18~25mm |
Chrome plating on rolls |
≥0.18MM |
Roll diameter jump |
≤±0.002mm |
Roll surface roughness |
Ra≤0.04 |
Roll gap adjustment |
The adjusting screw drives the middle wedge to adjust |
Roll gap adjustment range |
0~2.0mm |
Roller drive |
Cycloid reducer |
main motor power |
0.75KW(380V 50Hz) |
pressure method |
Electric hydraulic pump |
Hydraulic Cylinder Specifications |
Bore diameter φ63mm stroke 15mm |
Maximum working pressure |
37Ton×2 |
Working oil pressure |
40MPa |
greatest pressure |
60MPa |
Host weight |
about 1T |
heating |
The closed-loop control heating system is composed of Omron temperature controller, solid state relay and K-type thermocouple |
heating power |
1.6KW*2 |
Voltage |
220V |
Temperature accuracy |
±2 ℃ |
Maximum temperature |
130℃ |
2. Unwinding:
Unwind the reel |
Inflatable shaft with control valve, equipped with inflatable gun Specifications: 3 inches*350mm |
Tension control |
Magnetic powder brake nominal torque 25N.M |
Tension adjustment range |
0~25kg |
Correction control |
Photoelectric deviation correction device |
Guided Control |
Linear Bearing Guide |
total moving length |
±50mm |
Part weight |
about 80kg |
3. Rewinding
Function |
Roll the rolled pole piece material on the mandrel |
reel |
Inflatable shaft with control valve, equipped with inflatable gun Specifications: 3 inches*350mm |
Tension control |
Magnetic powder brake nominal torque 25N.M |
Tension adjustment range |
0~25kg |
Correction control |
Photoelectric deviation correction device |
Correction accuracy |
±0.2mm |
Guided Control |
Linear Bearing Guide |
total moving length |
±50mm |
drive |
Drive the rewinding shaft through the motor reducer and magnetic powder clutch |
Winding motor power |
0.75KW (380V 50Hz) |
Part weight |
about 80kg |

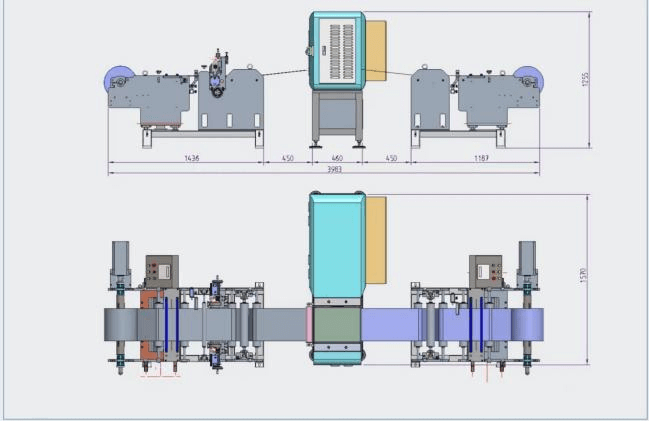

Below size for reference :
Rolling press part:L158*W80*H129 cm
Winding system: L120*W125*H74 cm
Unwinding system:L147*W124*H95 cm

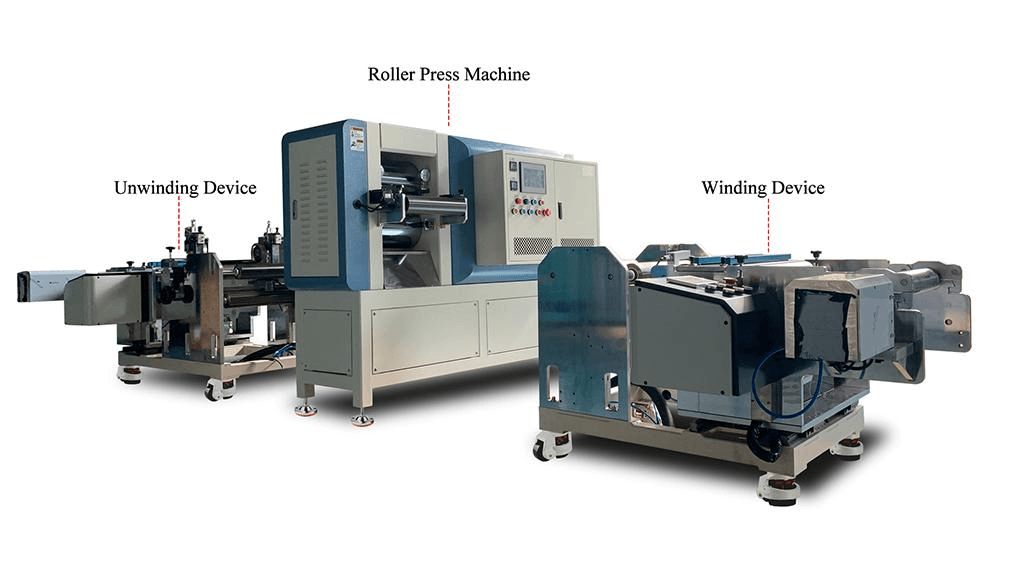

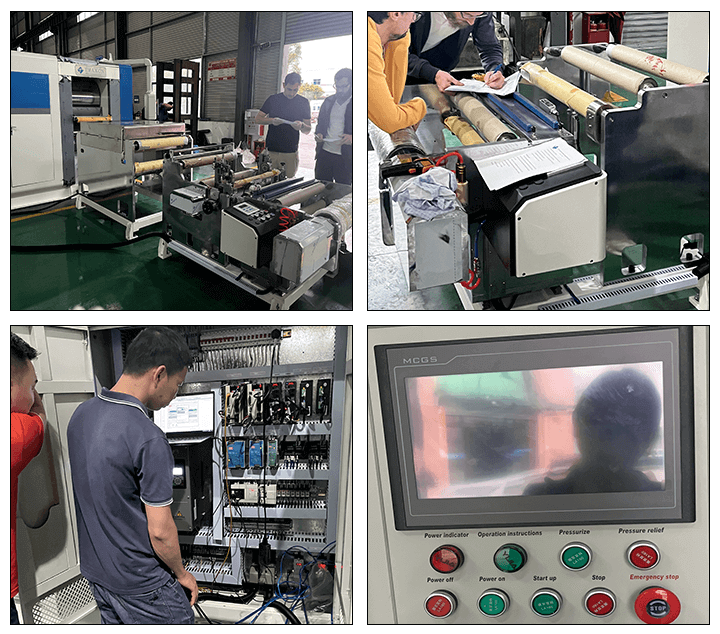

Picture for reference:
