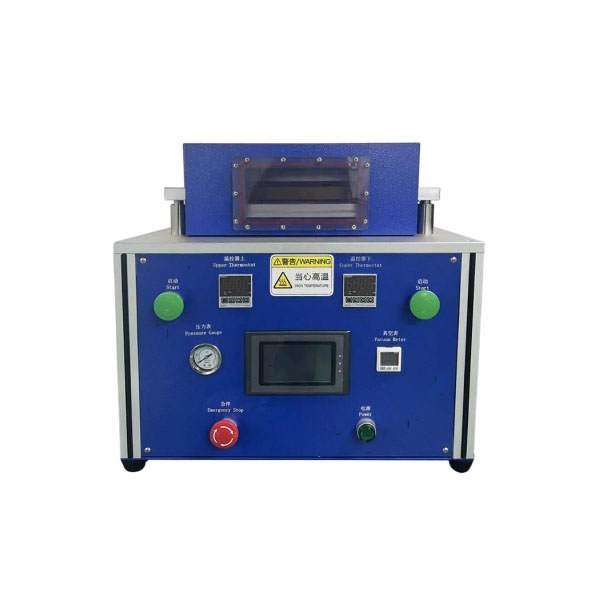

Compact Vacuum Sealing Machine with Integrated Temperature and Pressure Control in One Unit for Preparing Pouch Battery
Model Number:
TMAX-BFZ200Input Power:
600WDimension(L*W*H):
600*500*1500mmNet Weight:
50kgCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPlace of Origin:
Fujian, China (Mainland)MOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Vacuum Sealer Sealing Machine for Battery MakingNext:
Edge Ironing Machine for Pouch Battery Preparation

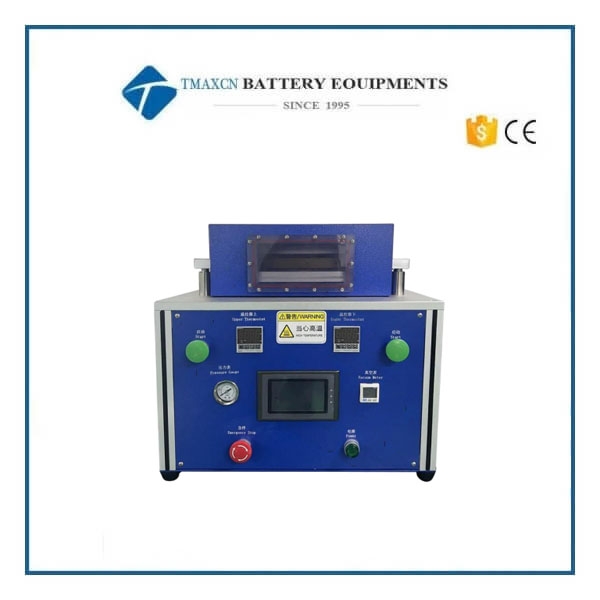

Compact Vacuum Sealer with Integrated Temperature and Pressure Control in One Unit for Preparing Pouch Battery
TMAX-BFZ200 is a compact vacuum sealer for sealing the aluminum-laminated case for pouch cell, which integrates temperature, pressure, and duration control into one unit for easy handling without feedthrough of the glovebox.
SPECIFICATIONS:
Input Power |
1. Single phase 110 VAC or 208-240 VAC
(selectable at Product Options), 50 / 60 Hz 2. 600W power |
Vacuum Level |
1. Vacuum range: -95 ~ 0 kPa
adjustable 2. The vacuum pump is not included. |
Sealing Die |
1. Max battery size: ≤ 200 mm in
length and width, ≤ 12 mm in thickness 2. Sealing width: 5 mm (customizable) 3. Sealing length: ≤ 200 mm 4. Sealing evenness: ≤ 0.03 mm
overlapping precision of top and bottom sealing dies 5. Sealing die type: hard type |
Sealing Pressure |
1. Pressue range: 0 ~ 7
kg/cm² adjustable. Vacuum chamber lid and sealing die need to be
driven by compressed high purity inert gases with recommended 60 psi pressure. 2. Consumption: ~ 0.2 L compressed air per
sealing 3. Please use high purity inert gases (Ar
or N2), when operating in the glovebox. Using Air Compressor driven when
operating outside the glove box. 4. Please note the air compressor is not included and not recommended to
use in the glove box. |
Sealing Temperature |
1. Temperature range: 0 ~ 250 ℃ adjustable with control accuracy of +/-
2 ℃ 2. Recommended temperature: 200 ℃ for top sealing die,and 160 ℃ for bottom sealing die |
Sealing Time |
0 ~ 99 seconds adjustable (3 ~ 4 seconds recommended) |
Net Weight |
50kg |
Product Dimensions |
600mm*500mm*1500mm |
Compliance |
CE Certificate |
Warranty |
One Year limited warranty with
lifetime support |
Application Notes |
1. Please wear gloves to operate the
machine. 2. Beware of the automatic vacuum chamber
lid. Only one operator is allowed for this equipment. 3. Please clean the sealing dies after each
use. Clean the sealing die after it has cooled down to avoid corrosion
by the electrolyte. 4. Check the level and smoothness of
sealing die surface every week. If there is serious damage to the sealing
die, please contact TMAX to order a replacement. 5. Lubricate the cylinder every week 6. Check the screws in sealing dies and
stage every month. Make sure they are tightened. |
