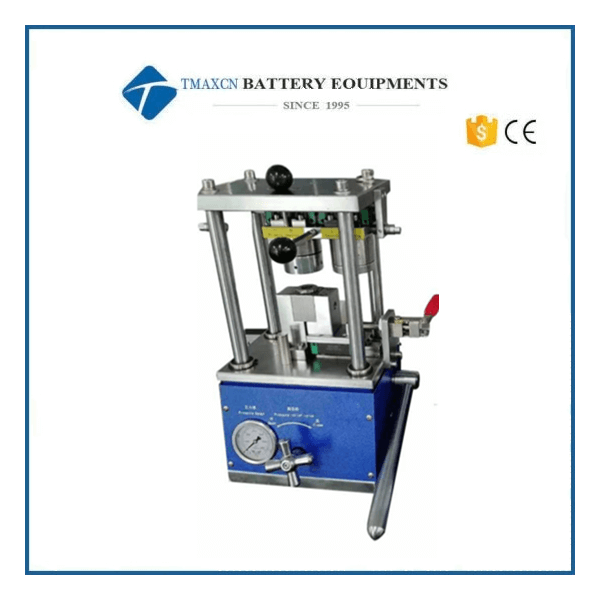

Compact Manual Lab Hydraulic 18650 21700 26650 32650 4680 Cylindrical Battery Sealing Machine

Model Number:
TMAX--CP-18F
Dimension(L*W*H):
330mm(L) x 240mm(W) x 400mm(H)
Net Weight:
31kg
Compliance:
CE Certified
Warranty:
Two years warranty and lifetime maintenance
Place of Origin:
China
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

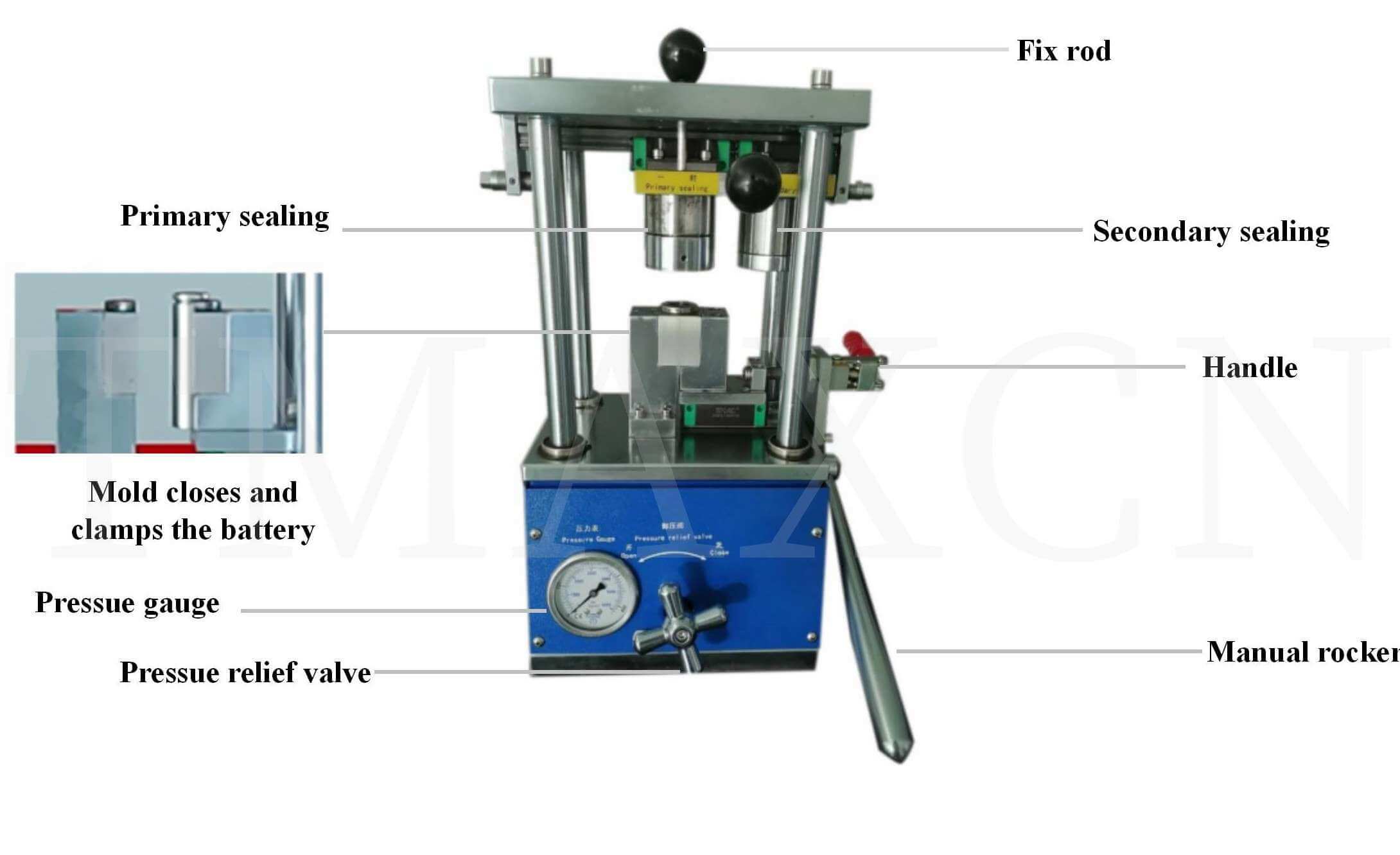

Compact Manual Lab Hydraulic 18650 21700 26650 32650 4680 Cylindrical Battery Sealing Machine

Features

1.TMAX--CP-18F is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs.

2.The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

3.It is mainly used for 18650 21700 32650 cylindrical battery sealing process after grooving.

Specifications

Model	Hydraulic Sealing Machine TMAX--CP-18F
Driving Force	Manual hydraulic pressing up to 5T
Pressure Gauge	0-3500 psi (0-250 kg/cm^2)
Body	Stainless Steel
Crimping Dies	Six standard die selectable: 18650 /21700/ 26650 / 32650 / AA /AAA
Warranty	Two years limited with lifetime support
Product Dimensions	330mm(L) x 240mm(W) x 400mm(H)
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the TMAX--CP-18F grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
Net Weight	31kg
Package Weight	38kg
Package size (LWH)	360320450mm

Related Tags :

Cylindrical Battery Sealing Machine Hydraulic Battery Sealer 18650 Battery Sealing Machine 4680 battery sealing machine
