Compact Disassembling Machine for 18650 Cylindrical Cases (Optional Dies available for 26650 or 32650)
Model Number:
MSK-530Dimension(L*W*H):
480 x320 x 230mmNet Weight:
35 kgCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

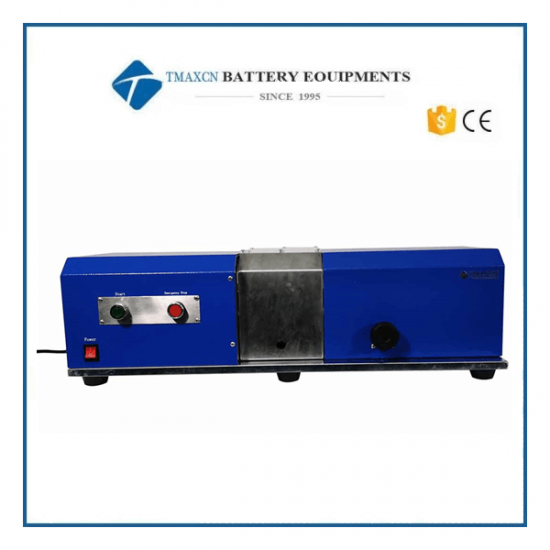

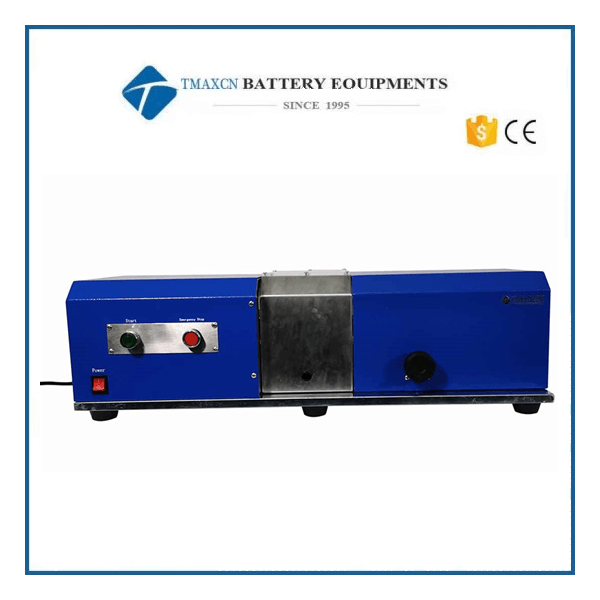

High Quality Disassembling Machine for 18650 Cylindrical Cases (Optional Dies available for 26650 or 32650) - MSK-530
Ⅰ、Introduction：
MSK-530 is a
compact manually-operated machine for disassembling cylinder cases in
battery R&D lab. The compact body design allows easy operation inside a
glove box to preserve & prevent the electrolyte and active
materials from contamination during case disassembling. Simple operation

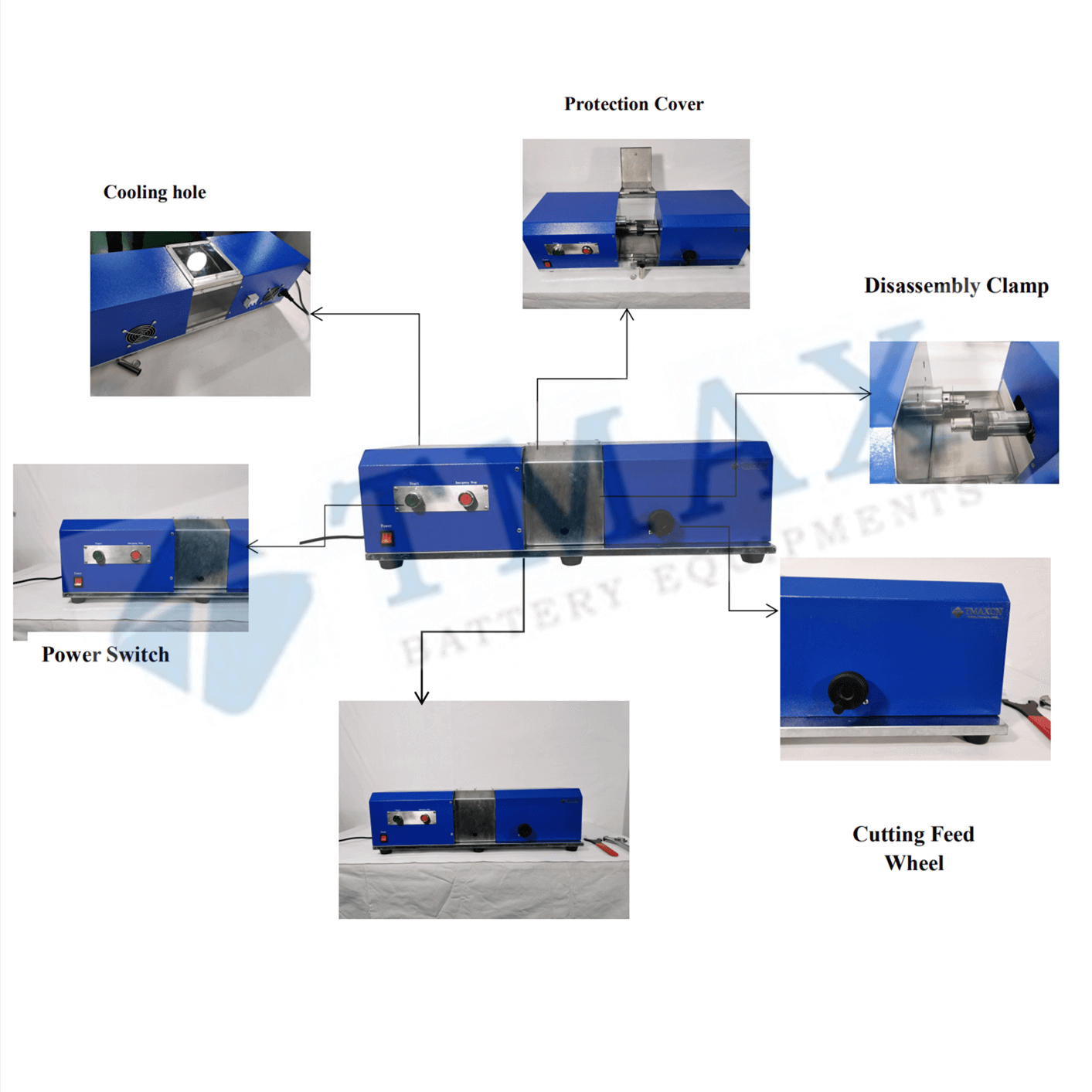

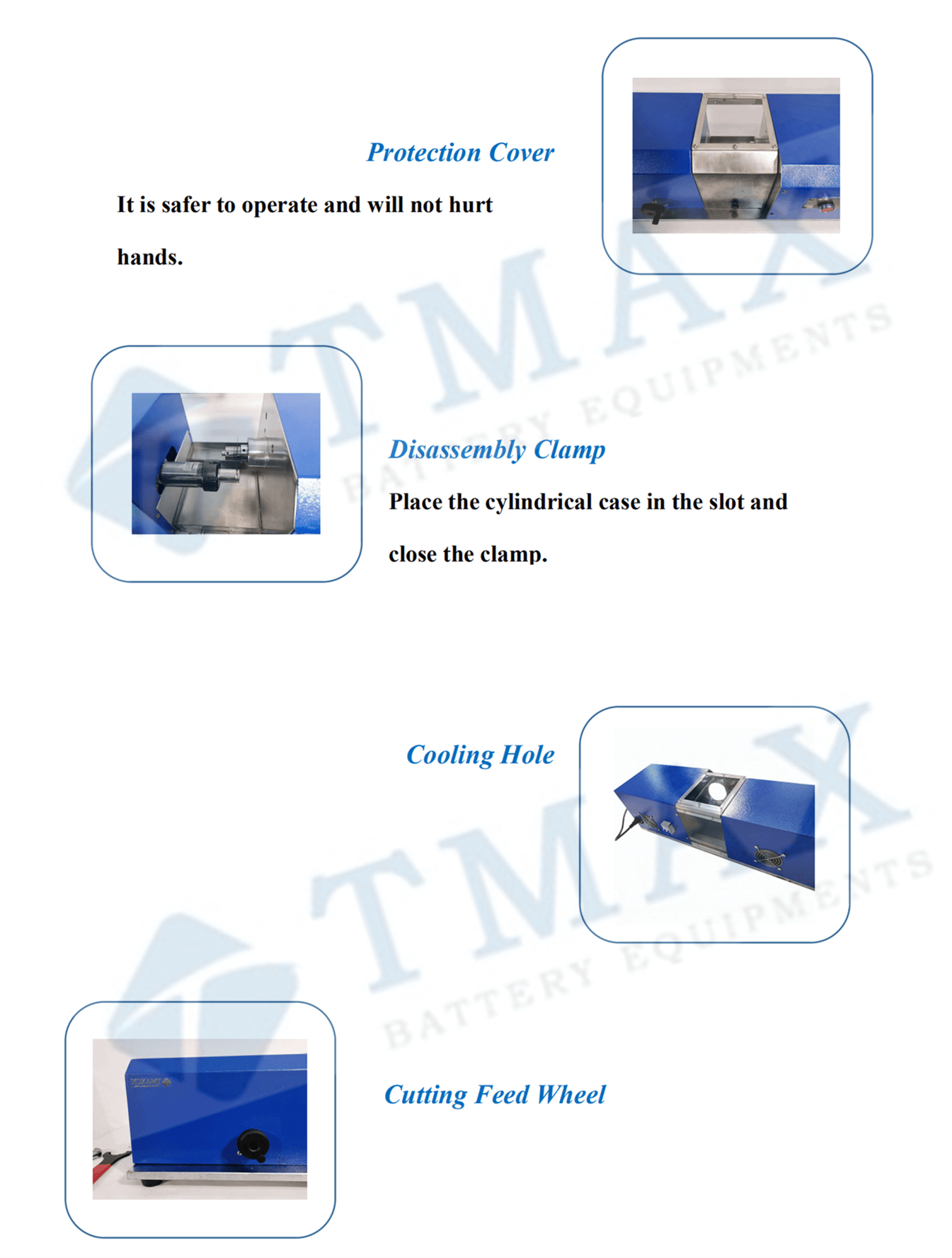

with safety protection cover allows customers to master the disassembling
procedure within 5 minutes.
Ⅱ、Specification:
Supply Voltage |
AC220V Single phase (110VAC available with a
transformer) |
Power |
100W |
Slicing Motor Speed |
1000 rpm |
Die Rotating Speed |
1000 rpm |
Micrometer Accuracy |
0.05mm |
Warranty |
One year limited with lifetime support |
Product Dimensions |
480mm(L) x320mm(W) x 230mm(H) |
|
1. Standard
disassembling die for 18650 case. 2. 5
pcs carbide cutting blades are included. 3. Additional die
sets available for 26650 and 32650 as option. 4. Additional blade
and pin wrench for changing blades are available upon request. |
Net Weight |
35 kg |
Shipping Weight & Dimensions |
100 lbs; 40"x20"x20" |
Attention |
Considering the best interest of the
blade's service life, a low feeding speed is preferred. Normally, 45
seconds is needed to cut through the cylinder casing. |
