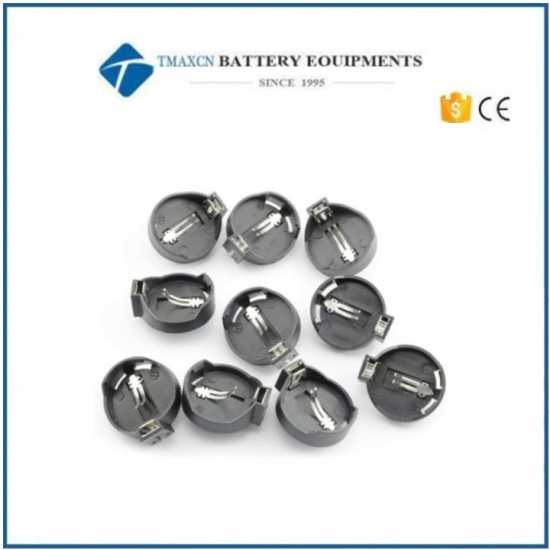

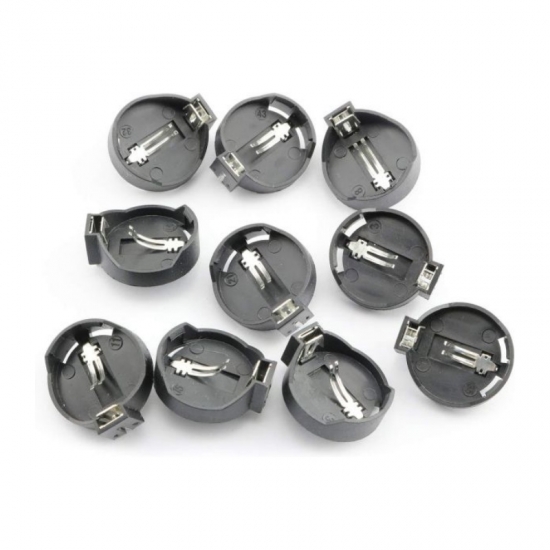

Coin Cell Case Holder For CR20XX
Model Number:
TMAX-holderCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 daysPrice:
US $54/bag
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Stainless Steel Wave Spring with Gold Plated for CR2032 CasesNext:
AG3(LR41) Coin Cell Case for Coin Cell Research
Coin Cell Case Holder For CR20XX
About this item
- Type:Battery Holder.Nominal Voltage:3V.
- Holder size:20mm/0.79".Body Size:22.9 x 32mm / 0.9 x 1.26"(DxH) . Distance Between Terminals : 20mm / 0.79".
- Conventional Heat Resista:200 degrees Celsius.Color:Black.
- Made of high quality PBT and manganese steel. Small size to carry easily.Long service life.
- Package included:10x Coin Cell Button Battery Holder Case.
Product Description
Specifications:
Type:Cell Battery Holder.
Material: PBT , Manganese Steel.
Batter type: CR2032 CR2025 CR2016.
Nominal Voltage:3V.
No. of Batteries:1.
Battery Terminals:PCB Pins.
Conventional Heat Resista:200 Degree Centigrade.
Holder size : 20mm/0.79".
Body Size:22.9 x 32mm / 0.9 x 1.26"(DxH) .
Distance Between Terminals:20mm / 0.79".
Color:Black.
Description:
This cell battery socket holds both two CR2032, CR2025,CR2016 batteries to achieve 3 Volts. The bottom side has 2 pins to secure onto a circuit board or wiring harness.
Package included:
10x Coin Cell Button Battery Holder Case
You may need coin cell case:
| Name | Model/Size | Material |
| Coin cell case | CR2032 | 304ss/316ss/Gold-Coated/Al-Coated/ Kapton |
| CR2016 | 304ss/316ss/ Kapton | |
| CR2025 | 304ss/316ss | |
| CR2450 | 304ss | |
| CR2430 | 304ss/316ss | |
| CR2325 | 304ss | |
| CR1620 | 304ss | |
| CR1632 | T:3.2mm D:16mm 304ss | |
| CR1616 | 304ss | |
| CR1220 | 304ss | |
| CR1820 | 304ss | |
| CR0927 | 304ss | |
| CR1220 | 304SS | |
| CR1025 | 304SS | |
| CR1016 | 304SS | |
| CR3048 | 304SS | |
| CR3032 | 304SS | |
| CR2477 | 304ss | |
| CR2032 Lithium air case | 304ss | |
| Coin cell spacer | 15.8*0.2mm | 304ss/316ss |
| 15.8*0.5mm | 304ss/316ss/Pure aluminum | |
| 15.8*0.8mm | 304ss/316ss | |
| 15.8*1mm | 304ss/316ss | |
| 20.2*0.4mm | 304ss | |
| Wave Sprin (Belleville Washers) | 15.4O.D*10.5 I.D*1.0Height*0.25 Thickness mm | 304ss/316ss |
| Coin Cell Conical Spring | 15.4 mm dia * 1.1 mm height *0.25 mm thickness | 304ss/316ss |
| 20*1.7mm | 304ss |
When you order more than 5000sets,
Our also can put your company Logo on to case and give you the wholesale
price .
The advantage of the
316: 316SS and 304SS on the chemical composition of the main difference is
that 316SS contains Mo, and generally accepted, the 316 has better corrosion
resistance, more resistant to corrosion under high temperature environment.
