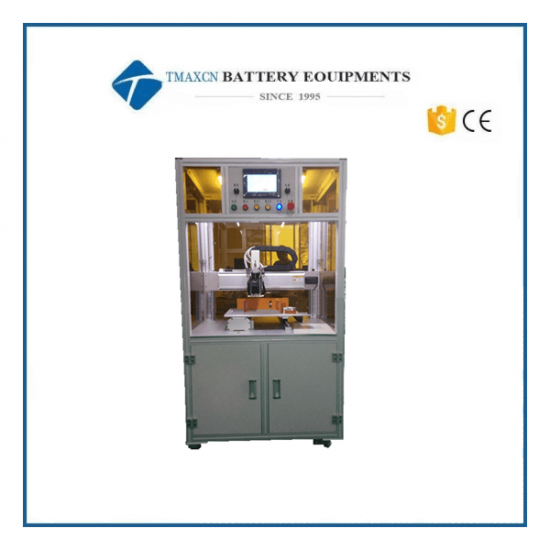

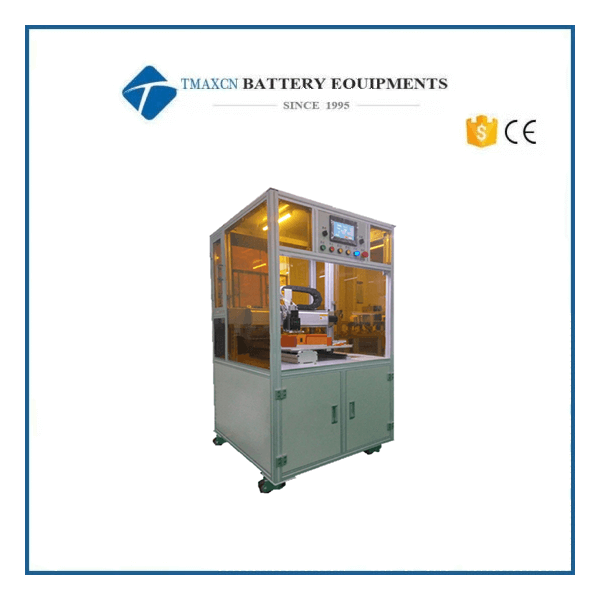

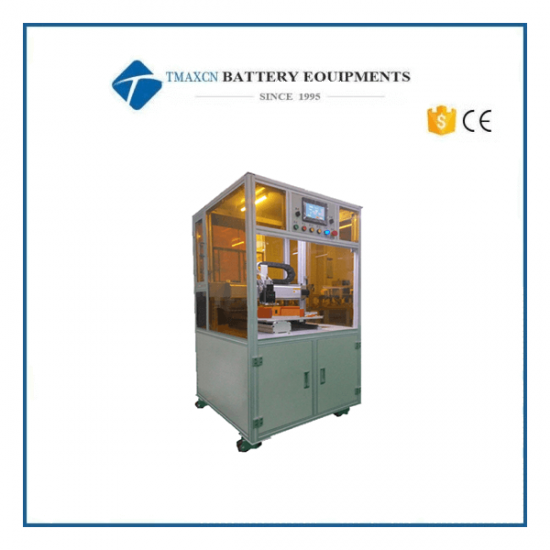

CNC Automatic Battery Tab Spot Welding Machine for Rechargeable Bike Module Making
Model Number:
TMAX-DH-10000Input Power:
500WDimension(L*W*H):
1000mm*1000mm*1800mmNet Weight:
kgCompliance:
CE CertifiedWarranty:
2 Year limited warranty with lifetime supportPlace of Origin:
ChinaShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack ManufacturingNext:
Automatic Numerical Control EV Cell Battery Spot Welding Machine for Rechargeable EV Bike Module

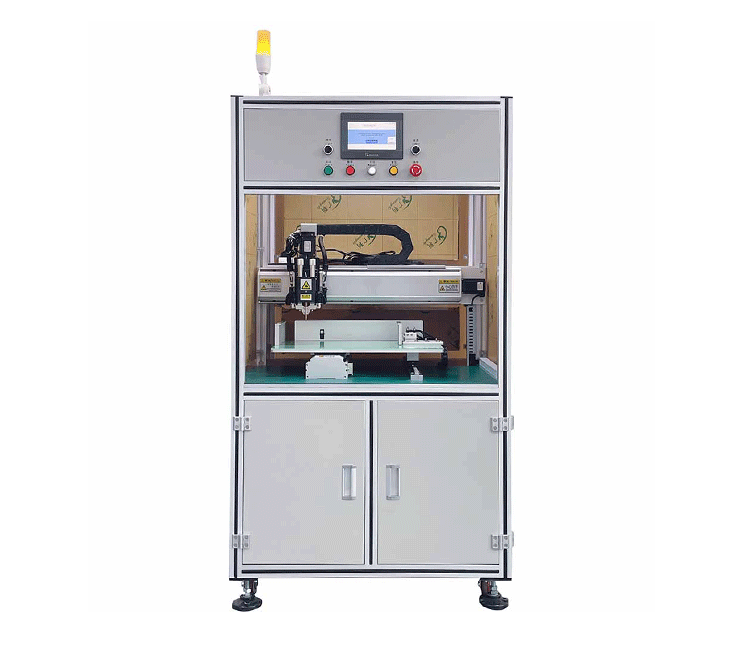

CNC Automatic Battery Tab Spot Welding Machine for Rechargeable Bike Module Making
INTRODUCTION

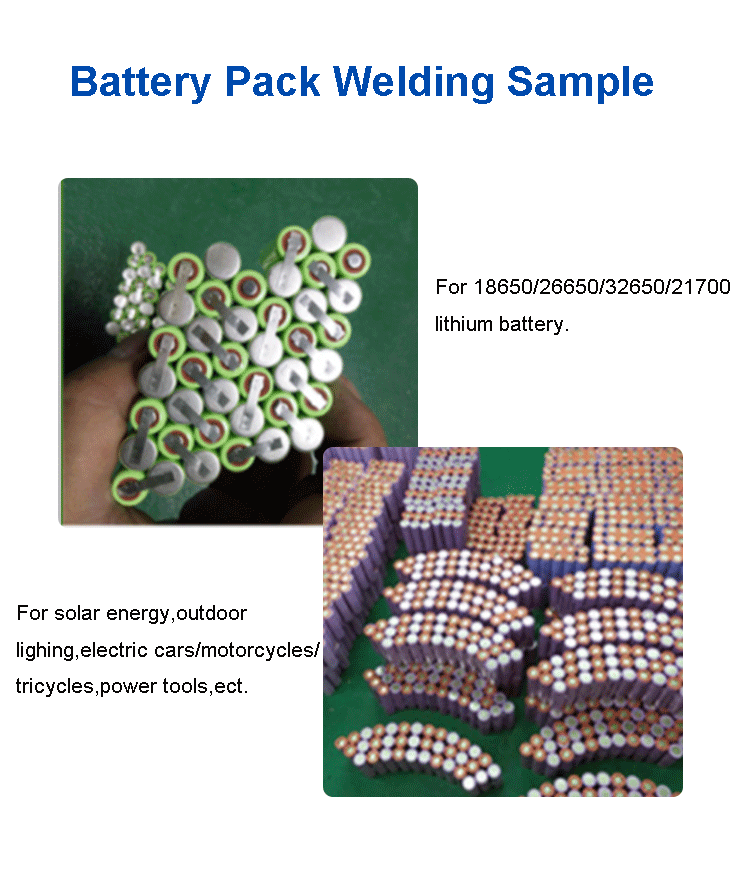

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

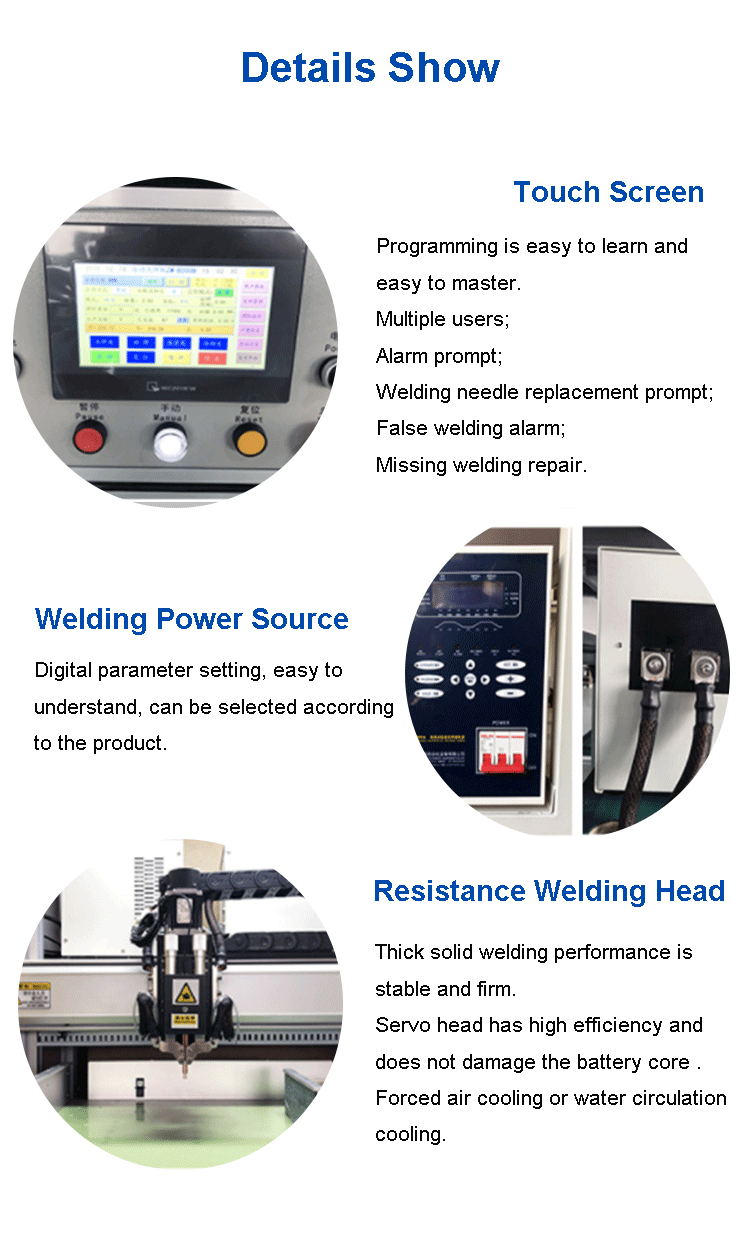

1.Support breakpoint start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
We can also offer CNC welding machine. Welcome your inquiry to us for more details.
SPECIFICATION
Model TMAX-DH-10000 X-axis travel 380mm Y-axis travel 540mm Spot welding speed 0.5s / point; 1600pcs / h Maximum speed of motor drive 1000mm/s The maximum number of batteries loaded 300pcs (standard 18650 lithium battery) Number of groups for storing files 99 groups Operating system Embedded system + man-machine screen Transmission Stepper + imported precision linear guide (optional servo + screw) Power supply Single-phase 220V ± 10% / 50Hz ± 10% Power <500w Air supply 0.3 ~ 0.4Mpa Weight 200KG Dimensions About 1000mm*1000mm*1800mm
