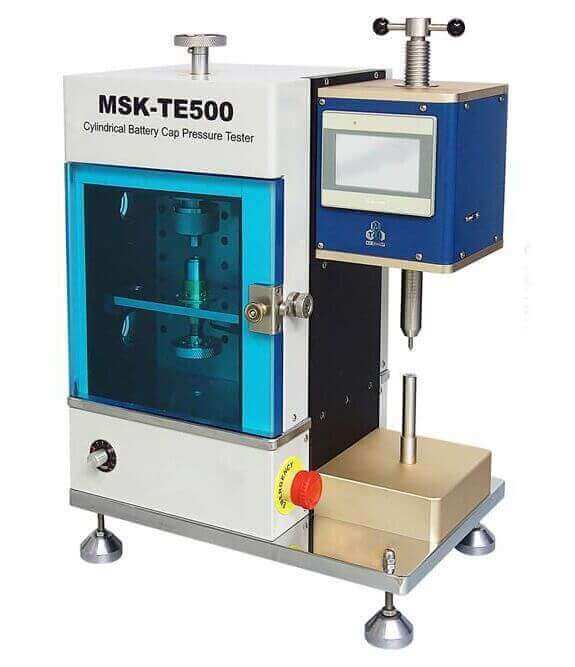

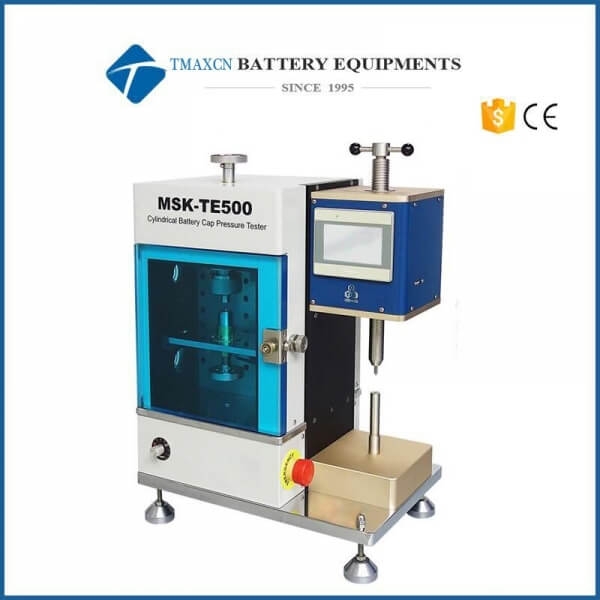

Machine Capabilities

· 1,Leak Test mode simulates an over pressurized condition inside of the battery housing and allow you mornitor the pressure decay over time. This test is to ensure that no electrolyte must leak out of the battery casing, more importantly, no moisture must get into the battery which will cause battery failure.

· 2,Pressurization test mode evalutates the electric cut-off and physical burst pressure of the battery safety cap. Dome shaped aluminum piece will firstly detach from the base contactor (cause electric cut off) and then burst when suffering from the over pressure.

· 3,Large touch panel control provides easy access to parameter settings such as testing pressure, pressure maintain time and ramp rate.

· 4,Precision pressure sensor records the real-time pressure change and draw curves

· 5,build-in air compressor estabilishs the pressure needed for testing

· 6,A manual nail penetrator is integrated to the right of the machine. A assembled cell needs to be punched before pressurization.

· 7,USB port allows you download the data for further analysis.

Power Requirement

· DC24V, 50Watts

· 100~240VAC Universal Power Adapter is included (UL certified)

Standard Testing Die

*For testing other size batteries such as 21700, 26650 and 32650, please contact us for customization details.

Testing Methods

2) Pressurization test to evalutate the cut-off and bursting pressure of the battery safety cap

Pressure

Max. testing pressure is 3Mpa. (Build-in air compressure)

Warranty

· One year limited with lifetime support

Product Dimensions

L430mm*W250mm*H510mm

Application Notes

It is necessary to use Hydraulic Crimping Machine

· to seal the cap before running the leak test

· Please click the bottom right pictures to order the cylindrical cases 18650, 26650, 32650.

Net Weight

30 kg
