Battery Transfer Intermittent Coater Machine For Lithium Battery Cathode and Anode Coating
Model Number:
TMAX-MRX300Input Power:
10KWNet Weight:
About 1.3TCompliance:
CE CertifiedWarranty:
1 Year Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5L Slurry Filter MachineNext:
Laboratory Vacuum Filling and Degassing Machine for Battery Electrolyte Injection and Degas
Battery Transfer Intermittent Coater Machine For Lithium Battery Cathode and Anode Coating

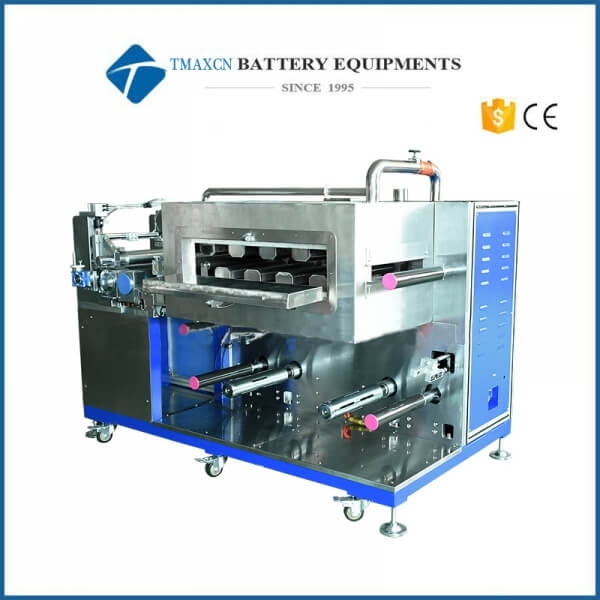

TMAX-MRX300 is a automatic battery electrode coating machine with a compact footprint that is less than 6'x3'. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's the most convenience.
Working Voltage |
380V AC |
Max. Power Consumption |
10 KW ( 30A Air breaker required ) |
Max. Coating Width |
300mm |
Thickness adjustable range |
0-5mm |
Coating thickness (after drying) |
20 - 200um (for most kinds of battery electrode coating material) |
Thickness Precision |
± 3µm (± 5µm at edges) |
Coating Speed |
0-300 mm / minute |
Max. Drying Temperature |
150°C |
Temperature Accuracy |
±2.5°C |
Heating Zone Length |
710mm (28") |
Reeling/Unreeling Shaft |
75mm (ID) |
Max. Reeling/Unreeling Diameter |
300mm (OD) |
Max. Coating Length |
· Depending on the coating and substrate thickness. · Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run |
Coating Modes |
· Using transfer coating technique ( Reverse comma ) for better uniformity · Two available coating modes selectable on the control panel. o Continuous mode o Intermittent coating ( system performs coating, stops, coats again and so on. The length of the coating and break segments can be specified by the user ). |
Slurry Stirring |
SS316 Moving Rod |

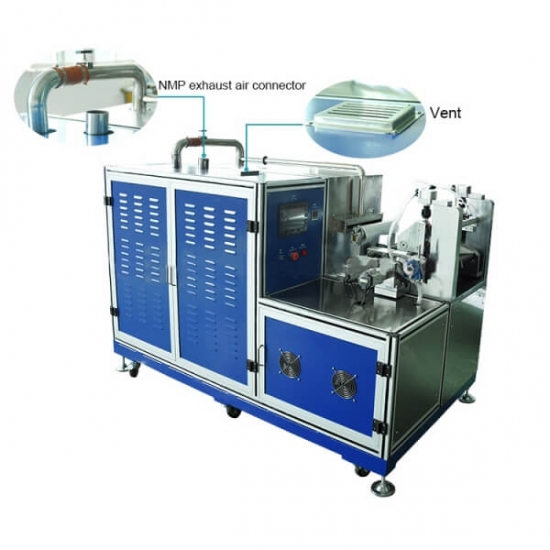

Exhaust Port Size |
127mm O.D |
Compressed Air |
0.5-0.8 MPa (Air compressor not included. Please click here to order) |
Product Dimensions |
1650mm ( L) x 1250mm (W) x 1200mm (H) |
Warranty |
· Two Years limited warranty with lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
Net Weight |
1000 kg |
Shipping Dimension |
70" x 50" x 60" |
